© 2013 Somfy SAS. All rights reserved. 09/2013
GB

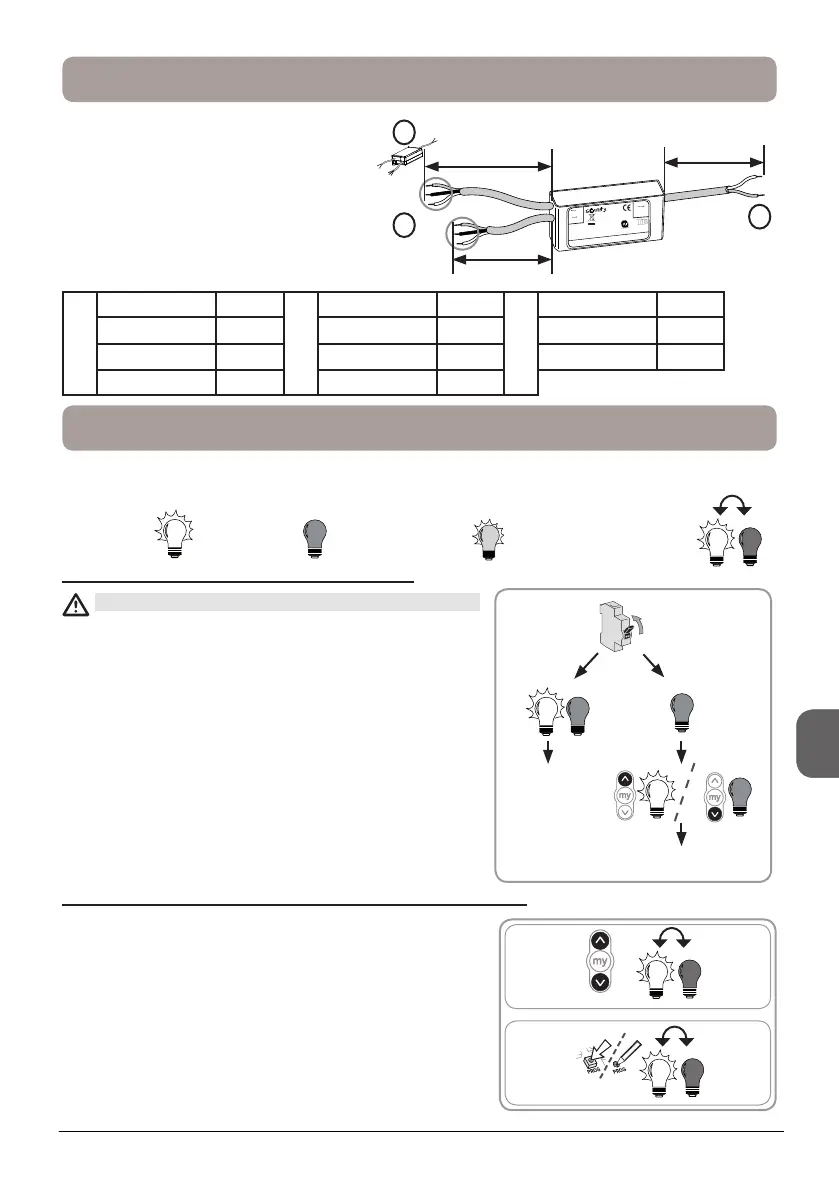

5. WIRING
- Switch the power supply off.
- Connect the Lighting receiver Variation io to
the mains as per the wiring diagram:
- Mains
230V/50 Hz (A)
- Power supply (AC/DC) (B)
- Control voltage (1-10V) (C)
A
Blue Neutral
B
Blue Neutral
C
Blue Dim +
Brown Live Brown Live Brown Dim -
Green/Yellow Earth Green/Yellow Earth Cable length 50 cm
Cable length 30 cm Cable length 50 cm
6. SET-UP
Power must only be supplied to one receiver at a time.
Turn on the power and follow procedure "a" or "b" according
to the light's reaction:
a) The light comes on then goes out
No Somfy io control point has been programmed. Go to the
"Programming the rst Somfy io local control point" section.
b) The light does not come on
Press the Up or Down button. If the light comes on or goes
out, the Somfy io control point has been programmed.
Go to the "Use" section.
6.2. Programming the rst Somfy io local control point
This guide describes set-up using only a Situo io type Somfy io local control point. To perform set-up
using a different io control point, refer to the corresponding instructions.
1) Simultaneously press the Up and Down buttons on the
Somfy io local control point: the light comes on then goes out.
2) Briey press the PROG button on the Somfy io local
control point: the light comes on then goes out again to
indicate that the Somfy io local control point has been
programmed into the Lighting receiver Variation io.
6.1. Identifying the settings already made
ON
6.2.
7.
a b
Light on Light off
Feedback
1
2
PROg
VARIATION io
Ref : 5107825 A
Made in Romania
Somfy 74300
–
France
LIGHTING RECEIVER
Dim + (Blue)
Dim – (Brown)
1 – 10 V
- 20T + 50
IP55
IN
230V ~ 50Hz
OUT
500W

50 cm
30 cm
230V ~
50Hz
50 cm
+
-
A
C
B
«my» light
position
