RS485 SETTING TOOL
5Copyright
©
2020 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.1. DESCRIPTION & BATTTERY INSTALLATION

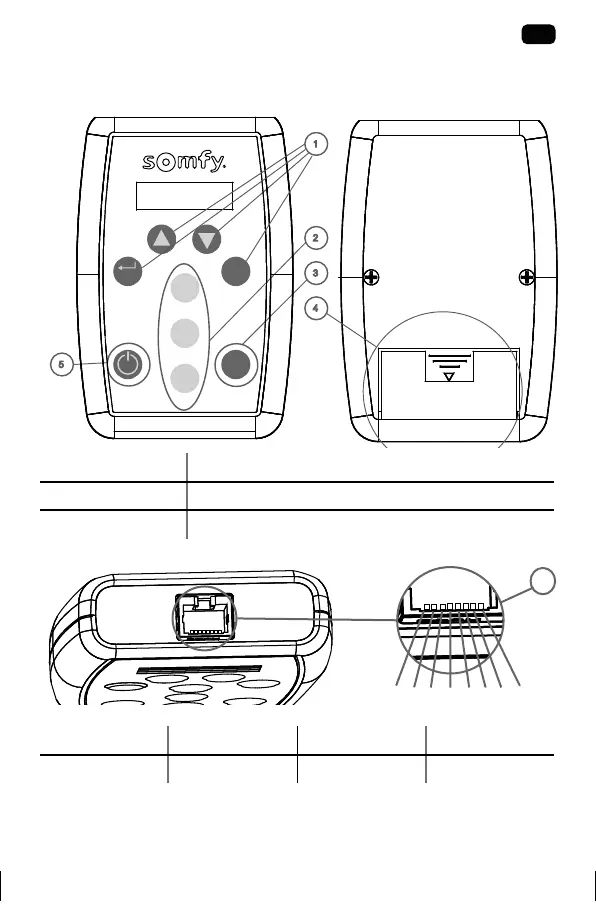

2.1.1. Description
1
2
3
4
5
BACK
OPEN
STOP
CLOSE
OK
LIGHT
1: Navigation buttons 4: Battery compartment
2: Control buttons 5: On/O
3: Backlight button 6: RJ45 socket
a b c d e f g h
6
a: Ground b: Ground c: Not used d: Not used
e: Not used f: Not used g: RS485 - h: RS485 +
