White LED Receiver io
RO
107
Copyright
©
2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
1) Întrerupeţi alimentarea de la reţeaua electrică.

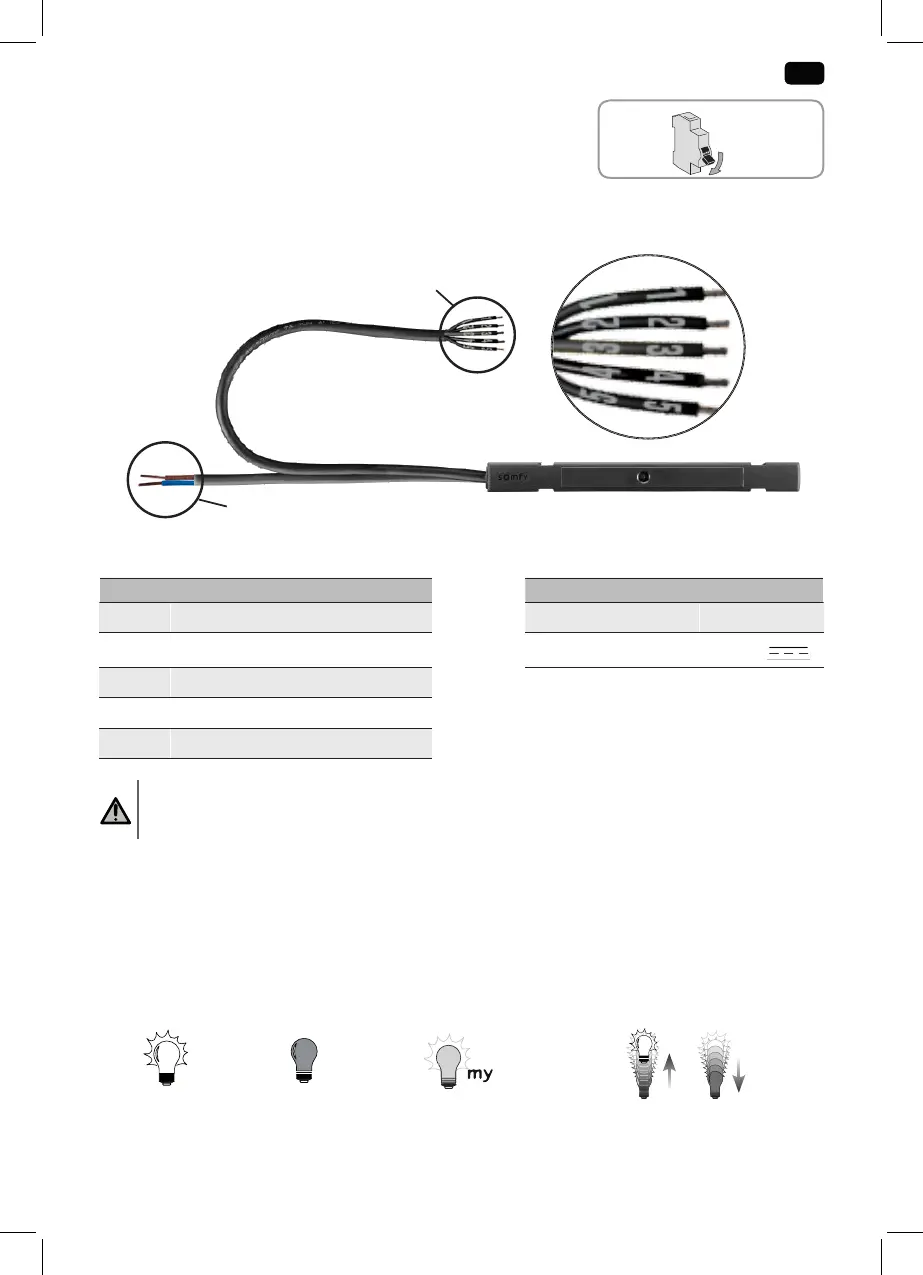

2) Conectaţi WhiteLEDReceiverio la unul sau mai multe corpuri de iluminat LED cu lumină albă (A)
şi la unitatea de alimentare (B) respectând polaritatea, conform tabelului şi imaginii de mai jos.
A B
F  C   LED .  F  V
F  C   LED .  F 
+/V
F  C   LED . 
F  C   LED . 
F  V+
Avertisment
Dacă sunt conectate mai puţin de 4 corpuri de iluminat LED, izolaţi firele neconectate ale Whi-
teLEDReceiverio cu ajutorul unei protecţii individuale.
3) Fixaţi WhiteLEDReceiverio (cu ajutorul unor coliere, de exemplu).
4) Conectaţi unitatea de alimentare 12 V sau 24V la reţeaua electrică.
2.2. PUNEREA ÎN FUNCŢIUNE
Acest manual descrie numai punerea în funcţiune cu ajutorul unui punct de comandă 1W io.
Pentru punerea în funcţiune cu ajutorul oricărui alt punct de comandă io, consultaţi instrucţiunile
corespunzătoare.
LED aprins LED stins LED poziţia „my” V  
OFF
B
Ø ≥ 1mm
2
A
