Sonel MPI-530-IT - Measurement of RCD Disconnection Time

OPERATING MANUAL MPI-530-IT version 1.06
51

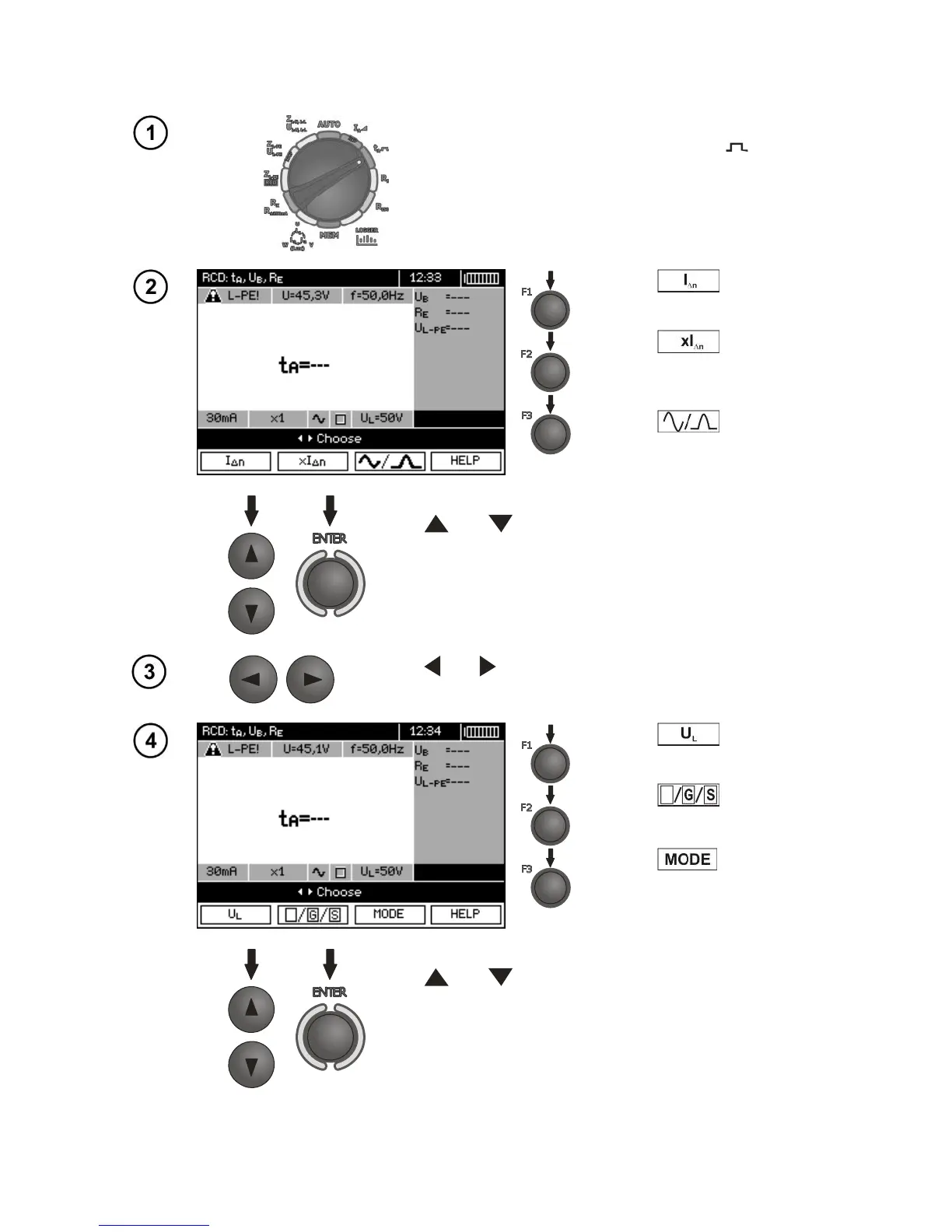

3.6.2 Measurement of RCD disconnection time
Settings
Turn the rotary switch to t
A
position. .
Press F1 to enter I
n
selection mode.
Press F2 to enter I
n
multiplication factor selection
mode.
Press F3 to enter the
selection mode for current
waveform.
Use and to select desired position and press
ENTER to confirm.
Use and to enter the second group of parameters.
Press F1 to enter U
L
selection mode.
Press F2 to enter RCD
type selection mode.
Press F3 and move to
selection of measurement
mode.
Use and to select a suitable position and press
ENTER to confirm.
