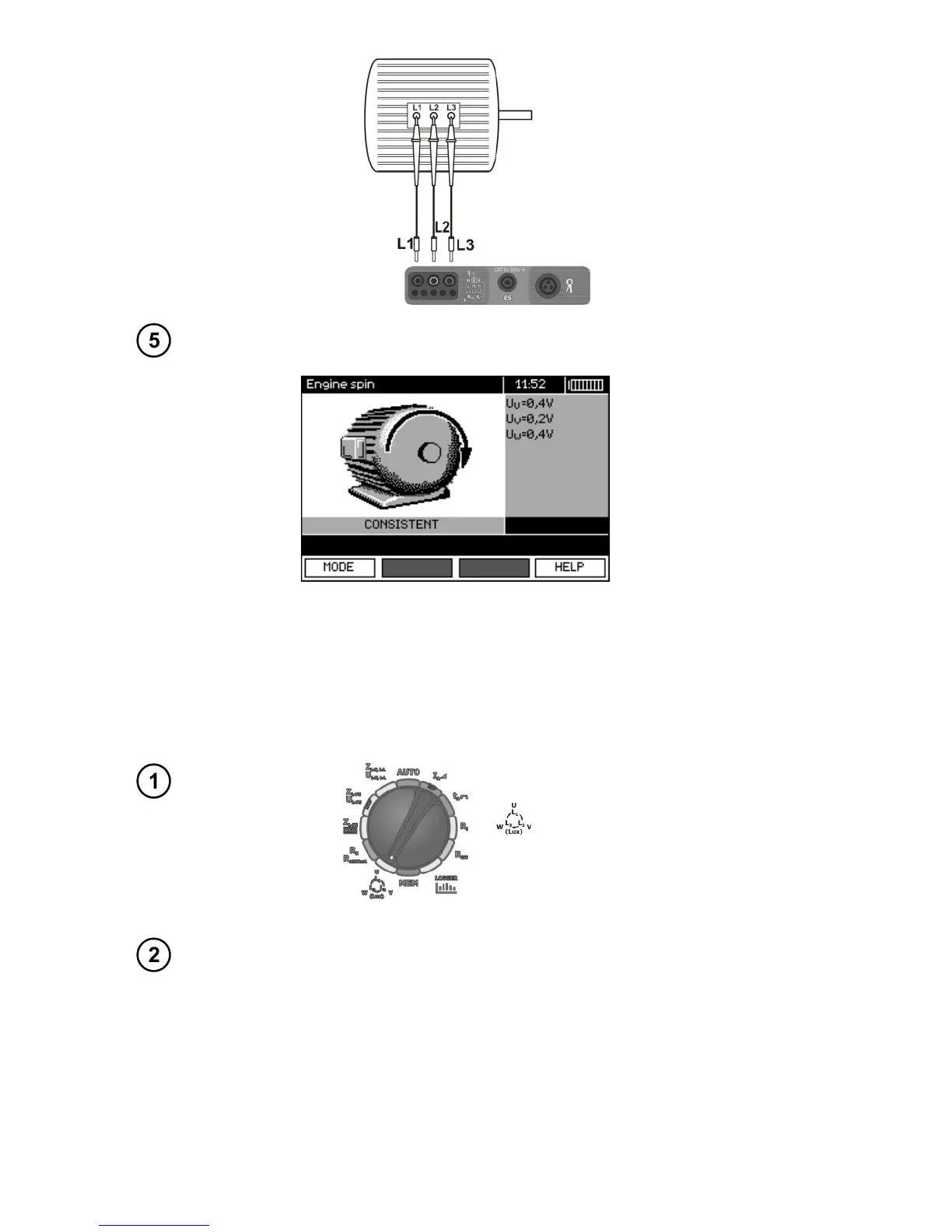

Vigorously rotate the motor shaft in the desired direction.
The arrow rotates
clockwise:
when L1, L2, L3
motor terminals are
connected to L1,
L2, L3 phases (re-
spectively), the mo-
tor will rotate in the
same direction as it
was rotated during
the test.
The arrow rotates
counter-clockwise:
when L1, L2, L3 motor
terminals are connected
to L1, L2, L3 phases (re-
spectively), the motor will
rotate in the opposite di-
rection to the rotations
during the test.
Note:
- When disconnected test leads are moved, they may induce voltages that result in indicating the di-
rection of rotation. Do not move the test leads during the test.
3.11 Light measurements
Settings
Set the rotary switch of function selection at
.
Measurement
Connect the optical probe. Instrument enters the light measurement mode.
