Note:
In order to avoid ambiguity in the calculating power values, attach clamps with their ar-
rows indicating the point of connecting L terminal of the meter to the tested object (Figure
b)).

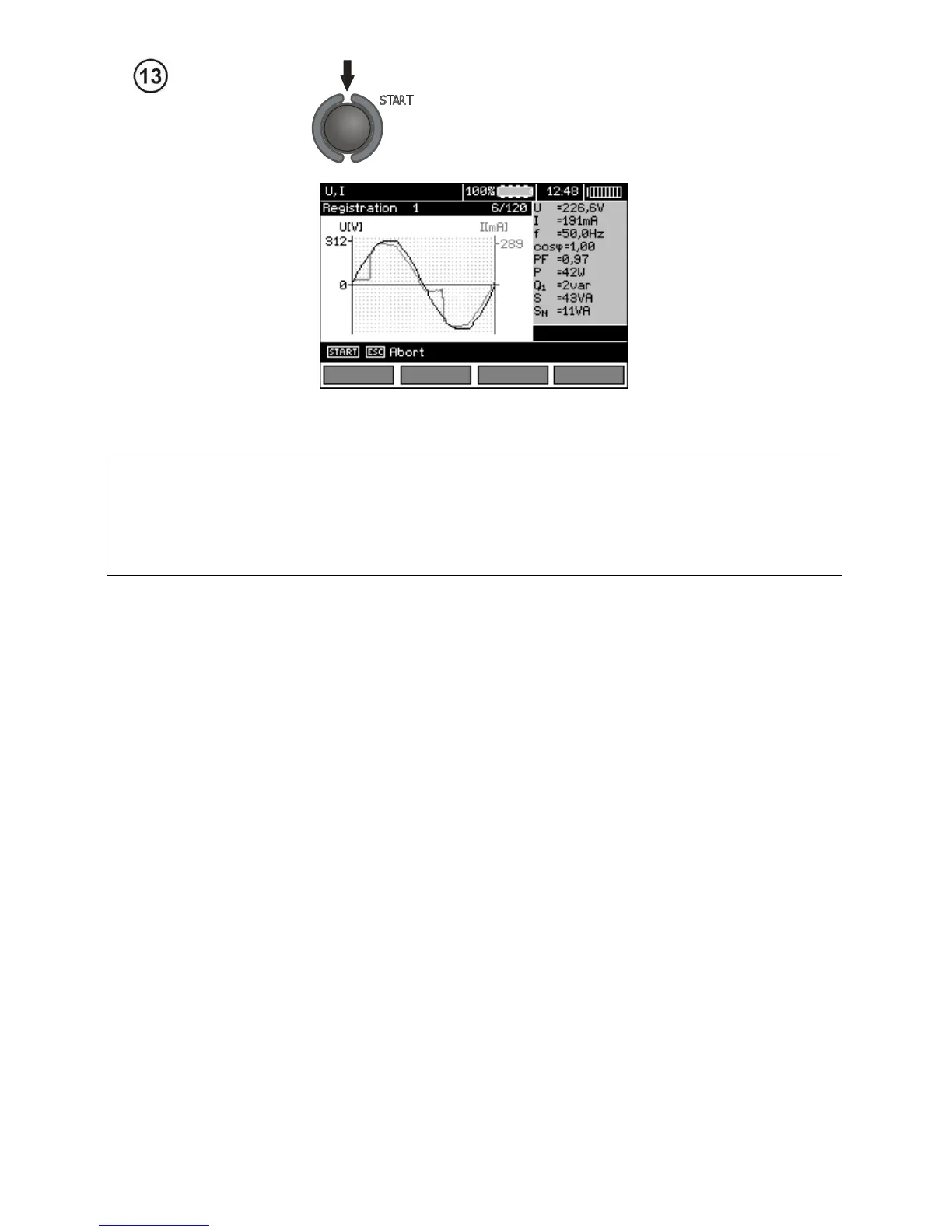

- During recording only one screen is displayed - the one that was displayed at the start of recording.
- In order to save energy, the meter displays data for 30 seconds from activating it, then it enters en-
ergy saving mode (the screen is blanked, LED flashes with 1-sec intervals). Pressing any key acti-
vates the device from the standby mode.
4 Memory of measurement results
4.1 Structure of the Memory
The memory for test results has a tree-like structure (see figure below). The user has the ability
to record data for ten clients. Each client may create max. 999 objects, which may store up to three
levels of sub-objects, 999 sub-objects for each level. Each subject, and sub-object may store up to
999 measurements.
The whole structure is limited by the size of memory. The memory allows for simultaneous re-
cording of 10 full descriptions of customers, and a minimum of: measurement sets for 10000 measur-
ing points and 10000 names of these points, 999 names for objects, 999 descriptions of sub-objects
and remember the layout created for these objects. Additionally the memory has a space for the list
of names (selection lists) extended up to 99 entries.
