OPERATING MANUAL MPI-
530
-
IT
ver
sion 1.06
69

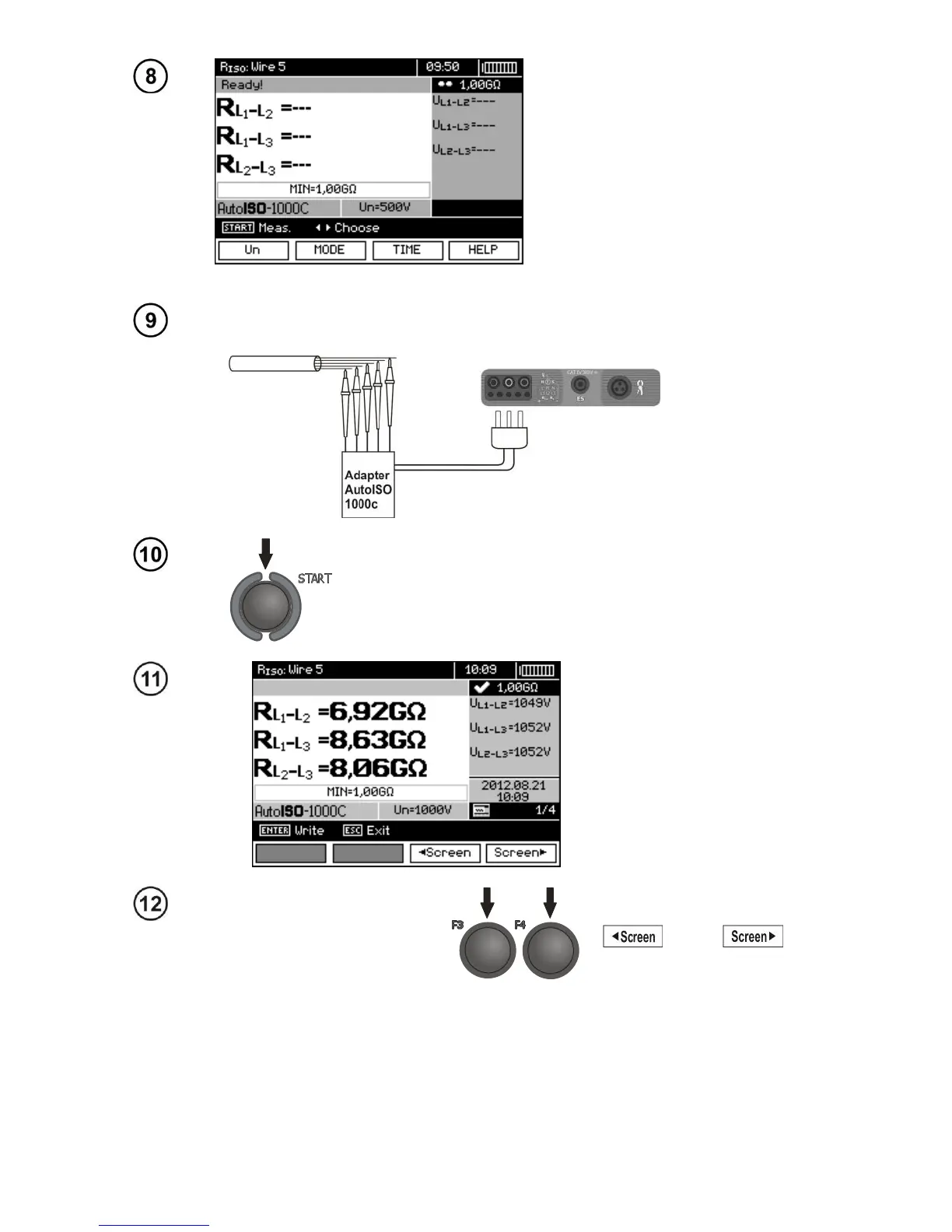

The meter is
read
y for measur
e-
ment.
Value of interference voltage can
be read on the display
.
Measurement
Connect AutoISO-1000c adapter to the lead tested.
Press
STA
RT
to start m
easurement. First
, the voltage on
individual w
ire pairs is checked.
If any of the voltages exceed
s
allow
able values, the sy
m-
bol of this voltage is displayed with "!
" (e.g. U
N-
PE
!
) and
the measurement
is interrupted.
Read out the results.
Groups of results displayed
are changed
by means of
F3
and
F4
push-buttons.
