Chapter 1 Overview
16 Chapter 1 Overview
Location and Function of Parts
7 AUDIO LEVEL (CH-1/CH-2) (audio recording
level adjustments for channels 1 and 2) knobs
When the AUDIO SELECT (CH-1/CH-2) switches
(4 on page 20) are set to MAN, these knobs adjust
the audio levels being recorded on channels 1 and 2.
The audio levels are indicated in the display window 8.
For details, see “8 Display window” below.

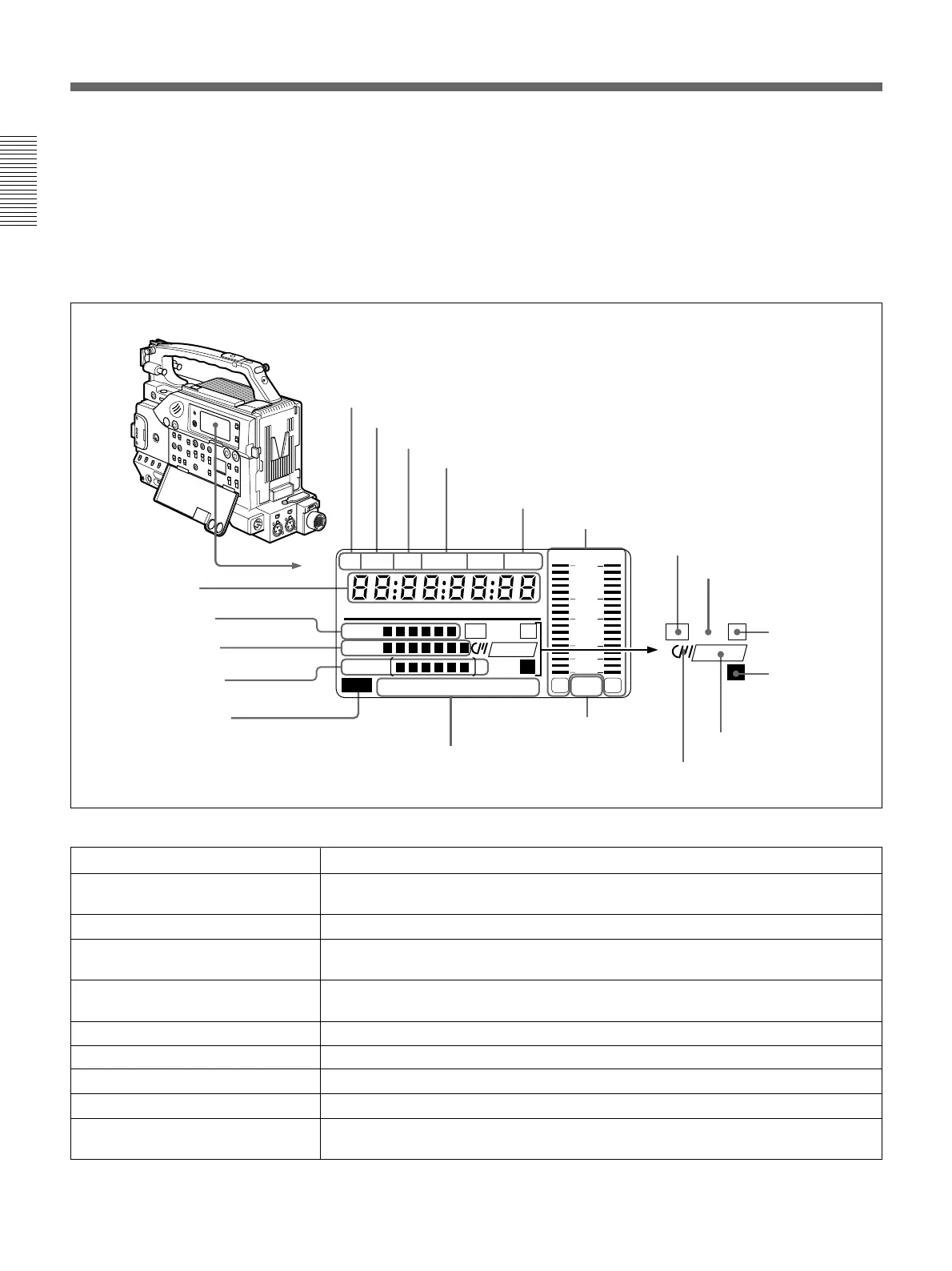

8 Display window
Shows the following items. Use the LIGHT switch (5
on page 15) to light up the display window.
∞
H MIN SEC FRM
1
dB
2
PB DATE NDF EXT-LK HOLD
CLIP
TAPE
BATT
DIAG
EF
RF SERVO HUMID SLACK
Li
-
-40
-30
-12
0
IP
CL
CONT
OVER OVER
-20
DVCAM
F s 32k
F s 48k
Li
IP
CL
CONT
DVCAM
A Playback indication
Indication
Description
A Playback indication Appears during playback, fast forward or rewind with the time data display showing a
time code or user bit value.
B DATE indication Appears when the date or time is displayed in the time value indication S area.
C Non drop-frame indication (DSR-
500WSL only)
Appears when non-drop frame mode is selected.
D External synchronization
indication
Appears when the internal time code generator is locked to an external signal input to
the TC IN connector (3 on page 24).
E Hold indication Appears when the internal time code generator is stopped.
F Audio level indicators These show the audio recording or playback levels of channel 1 and channel 2.
G ClipLink log data indication
H ClipLink continue indication
Appears when using a cassette with cassette memory containing ClipLink log data.
Appears when back space editing using ClipLink function is possible.
I IP(Index Picture) indication Appears when the ClipLink function is set to on in the VCR menu and Index Picture
recording is allowed. (The optional DSBK-301A is required.)
B DATE indication
C Non-drop frame indication (DSR-500WSL only)
D External synchronization lock indication
E Hold indication
F Audio level indicators
G ClipLink log data indication
H ClipLink continue
indication
I IP indication
1)
J Lithium backup
battery warning
K DVCAM indication
L Cassette memory indication
M Audio mode indications
N Warning indications
1) When the optional DSBK-301A is fitted.
O Service indication
P Battery capacity
indication
Q Tape remaining
indication
R Clip remaining
indication
S Time value
indication
Indications in the display window
