Chapter 2 Fitting and Connections
36 Chapter 2 Fitting and Connections
Using Accessories
Screws removed from the
camcorder
CAC-12
Microphone adaptor
Using an Optional Microphone
To use a long microphone such as the optional ECM-670/672, fit an optional CAC-12 Microphone Holder to the
camcorder, then mount the microphone in this holder.

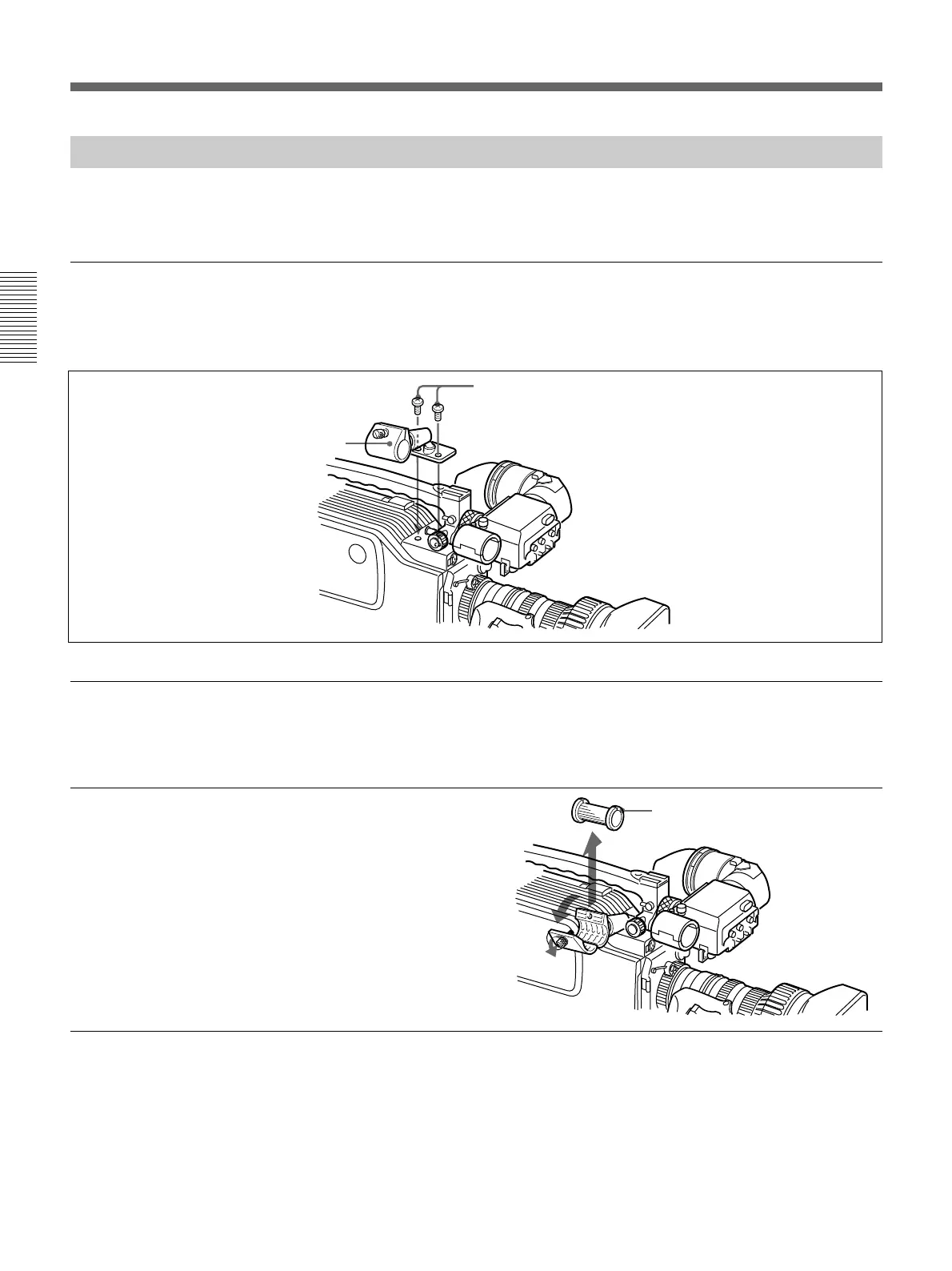

Fitting the optional CAC-12 Microphone Holder
Fitting an optional microphone
Use the following procedure to attach an optional
ECM-670 Microphone.
Loosen the screw of the CAC-12
Microphone Holder, then open the
holder and replace the microphone
adaptor with the one supplied with
the ECM-670 Microphone.
Fitting optional microphones (operable with a
48 V supply) other than the ECM-670
Use the same fitting procedure as for the ECM-670,
but note the following differences with respect to the
microphone adaptor.
ECM-672: no microphone adaptor required.
Slender microphones (19 mm (
3
/4 inch) diameter):
use the microphone adaptor supplied with the
CAC-12.
Remove the two retaining screws (M3 × 8) for the
optional microphone holder, then use these screws to
attach the CAC-12 Microphone Holder.
