14

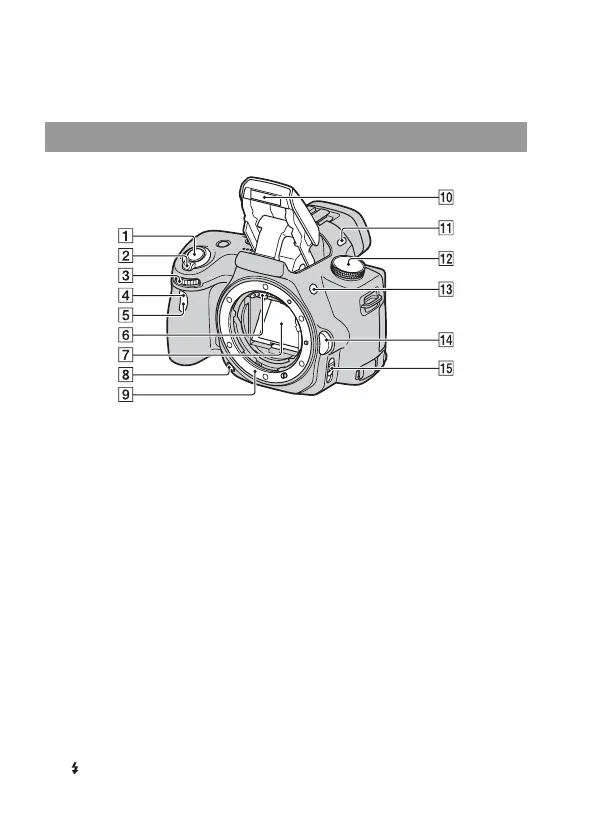

Identifying parts
See the pages in parentheses for details of operation.
A Shutter button (59)
B Power switch (28)
C Control dial (73)
D Remote sensor
E Self-timer lamp (117)
F Lens contacts*
G Mirror*
H Preview button (74)
I Mount
J Built-in flash* (96)
K Microphone**
L Mode dial (59 – 80)
M (Flash pop-up) button (96)
N Lens release button (27)
O Focus mode switch (85, 90)
* Do not directly touch these
parts.
** Do not cover this part
during movie recording.
Front side
