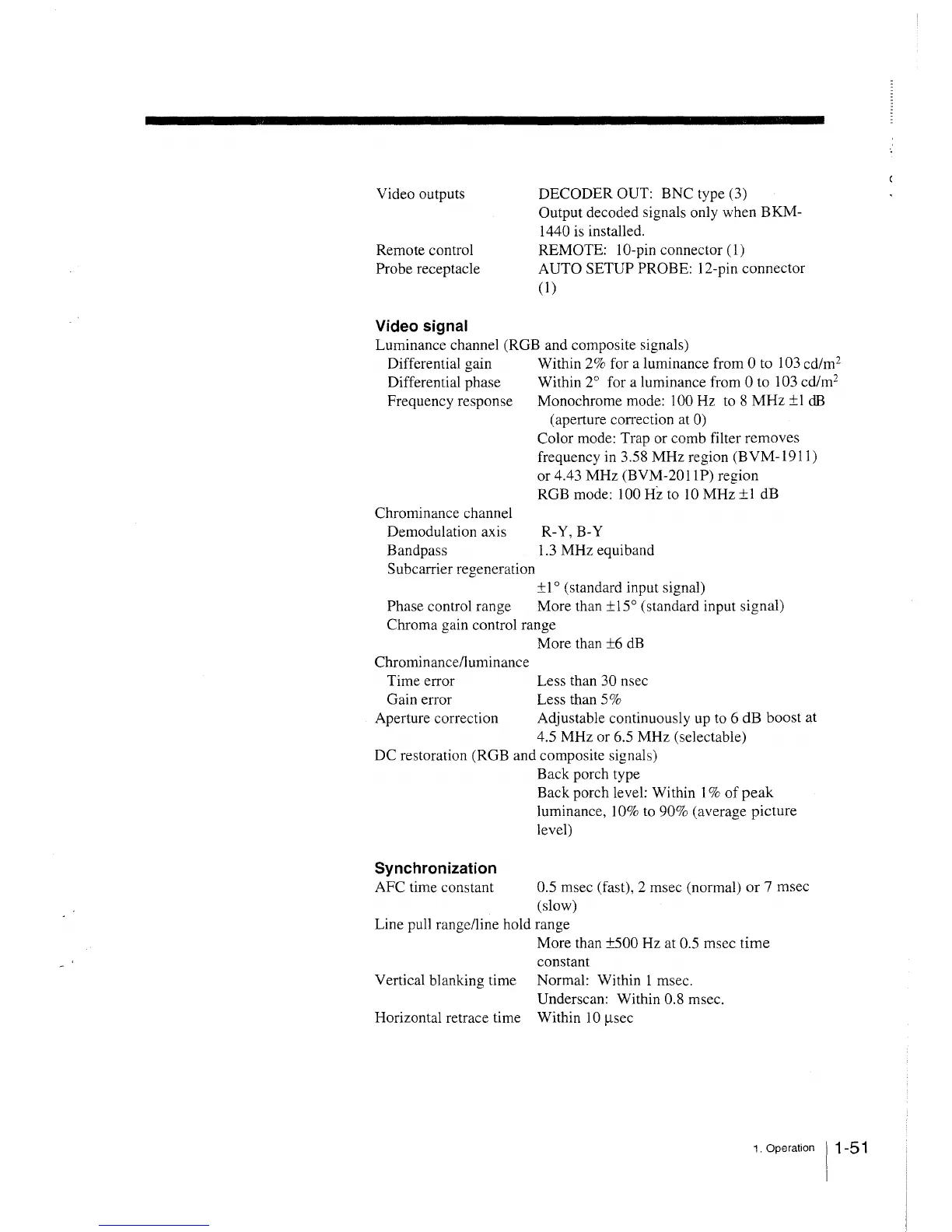

Video outputs
Remote control
Probe receptacle
Video signal
DECODER OUT: BNC type (3)
Output decoded signals only when BKM-
1440 is installed.
REMOTE: 10-pin connector (1)
AUTO SETUP PROBE: 12-pin connector
(1)
Luminance channel (RGB and composite signals)
Differential gain Within 2% for a luminance from Oto 103 cd/m
2
Differential phase Within for a luminance from 0 to 103 cd/m
2
Frequency response Monochrome mode: 100 Hz to 8 MHz ±1 dB
Chrominance channel
Demodulation axis
Bandpass
Subcarrier regeneration
(aperture correction at 0)
Color mode: Trap or comb filter removes
frequency in 3.58 MHz region (BVM-191 I)
or 4.43 MHz (BVM-201 IP) region
RGB mode: 100 Hz to 10 MHz ±1 dB
R-Y, B-Y
1.3 MHz equiband
±1 ° (standard input signal)
Phase control range More than ±15° (standard input signal)
Chroma gain control range
More than ±6 dB
Chrominance/luminance
Time error
Gain error
Aperture correction
Less than 30 nsec
Less than 5%
Adjustable continuously up to 6 dB boost at
4.5 MHz or 6.5 MHz (selectable)
DC restoration (RGB and composite signals)
Synchronization
AFC time constant
Back porch type
Back porch level: Within 1 % of peak
luminance, I 0% to 90% (average picture
level)
0.5 msec (fast), 2 msec (normal) or 7 msec
(slow)
Line pull range/line hold range
More than ±500 Hz at 0.5 msec time
constant
Vertical blanking time Normal: Within 1 msec.
Underscan: Within 0.8 msec.
Horizontal retrace time Within 10 µsec
