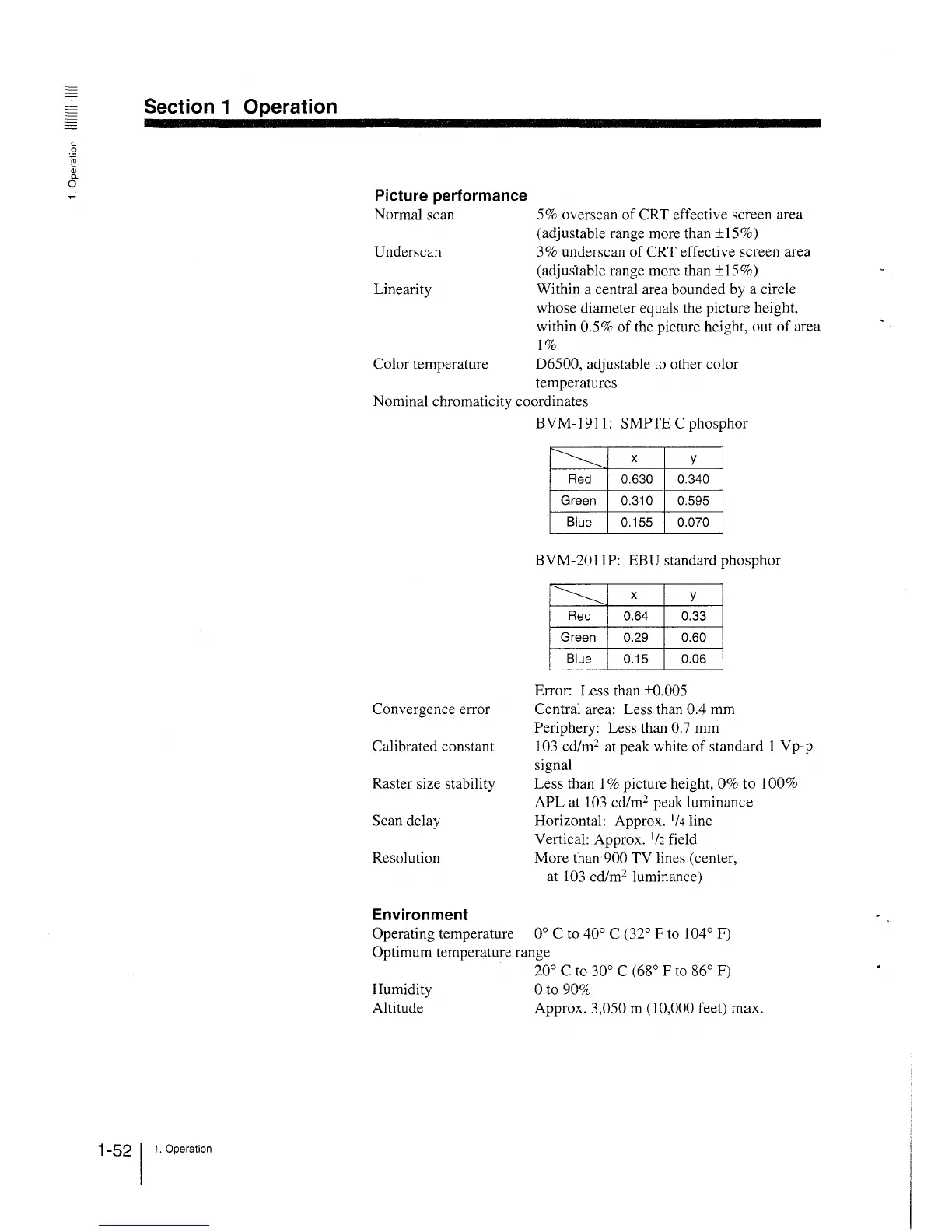

Section 1 Operation
1-5211. Operation
Picture performance
Normal scan
Underscan
Linearity
Color temperature
5% overscan of CRT effective screen area
(adjustable range more than ±15%)
3% underscan of CRT effective screen area
(adjuslable range more than ±15%)
Within a central area bounded by a circle
whose diameter equals the picture height,
within 0.5% of the picture height, out of area
1%
D6500, adjustable to other color
temperatures
Nominal chromaticity coordinates
Convergence error
Calibrated constant
Raster size stability
Scan delay
Resolution
Environment
BVM-1911: SMPTE C phosphor
1-------------
X y
Red 0.630 0.340
Green
0.310 0.595
Blue 0.155 0.070
BVM-201 lP: EBU standard phosphor
~
X
y
Red 0.64 0.33
Green 0.29 0.60
Blue 0.15 0.06
Error: Less than ±0.005
Central area: Less than 0.4 mm
Periphery: Less than 0. 7 mm
103 cd/m
2
at peak white of standard 1 Vp-p
signal
Less than 1 % picture height, 0% to 100%
APL at 103 cd/m
2
peak luminance
Horizontal: Approx. ¼ line
Vertical: Approx.
1
h field
More than 900 TV lines (center,
at 103 cd/m
2
luminance)
Operating temperature 0° C to 40° C (32° F to 104 ° F)
Optimum temperature range
Humidity
Altitude
20° C to 30° C (68° F to 86° F)
0 to 90%
Approx. 3,050 m ( I 0,000 feet) max.
