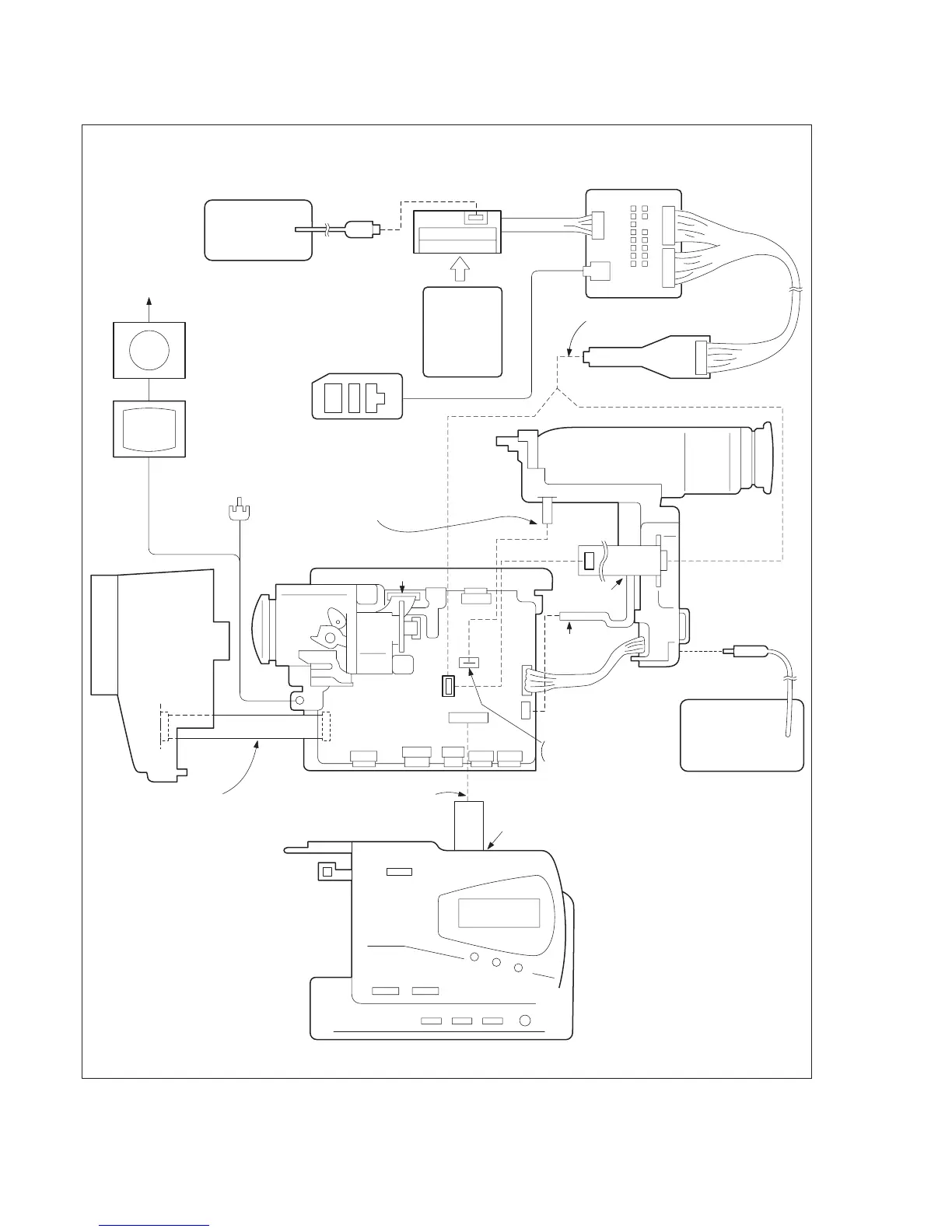

Fig. 5-1-4.
TR model (CCD-TR618/TR618E/TR718E/TR728E/TR818)
Note: Use either a AC power adaptor or a Info-LITHIUM battery as the power supply of the CPC jig for BX/BK.
AC power adaptor
(8.4Vdc)
AC-L10
AC-VQ800 etc
Vector scope
Adjustment
remote commander
Color monitor
Terminated at 75
Ω
VIDEO
(Yellew)
AUDIO
(black)
Must be connected when
performing the EVF system
adiustments.
L series
Info LITHIUM
Battery
(7.2Vdc)
LANC
jack
CPC jig for BX/BK (J-6082-521-A)
EVF block
TO SS-1000
block
Must be
connected
DC IN
jack
To CF-077 board CN001
Must be connected when
changing the menu setting
Cabinet (R)
AC power adaptor
(8.4 Vdc)
AC-L10
AC-VQ800 etc
MI-040 board
CN754
Lens
block
Must be connected when
performing the steady
shot check.
CN704
CN101
CN706
CN707
CN712
CN711
CN715 : B/W EVF model
CN708 : COLOR EVF model
CN713
CN001
VC-251 board
CN703
CN709
CN710
FP-262
FLEXIBLE
CPC connector
CN291
CN271
A/V OUT
jack
Front
panel
block
Must be connected
