CCD-TR618/TR618E/TR718E/TR728E/TR818/TRV49/TRV49E/TRV58/
TRV58E/TRV59E/TRV68/TRV78/TRV78E/TRV88/TRV98/TRV98E
4-15 4-16
RGB, TIMING GENERATOR, BACK LIGHT
PD-131
For printed wiring board
• Refer to page 4-70 for parts location.
• PD-131 board consists of multiple layers. However, only
the sides (layers) A and B are shown.
• Chip parts
Transistor
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
C
BE
CD-286 (TR model)
CD-281 (TRV model)
(CCD IMAGER)
MI-040 (TR model)
MI-041 (TRV model)
(STEADY SHOT, MIC AMP, IR DRIVE)
PD-131 (TRV model)
RGB, TIMING GENERATOR,
BACK LIGHT
CONTROL SWITCH BLOCK
(CF-1000) (TRV model)

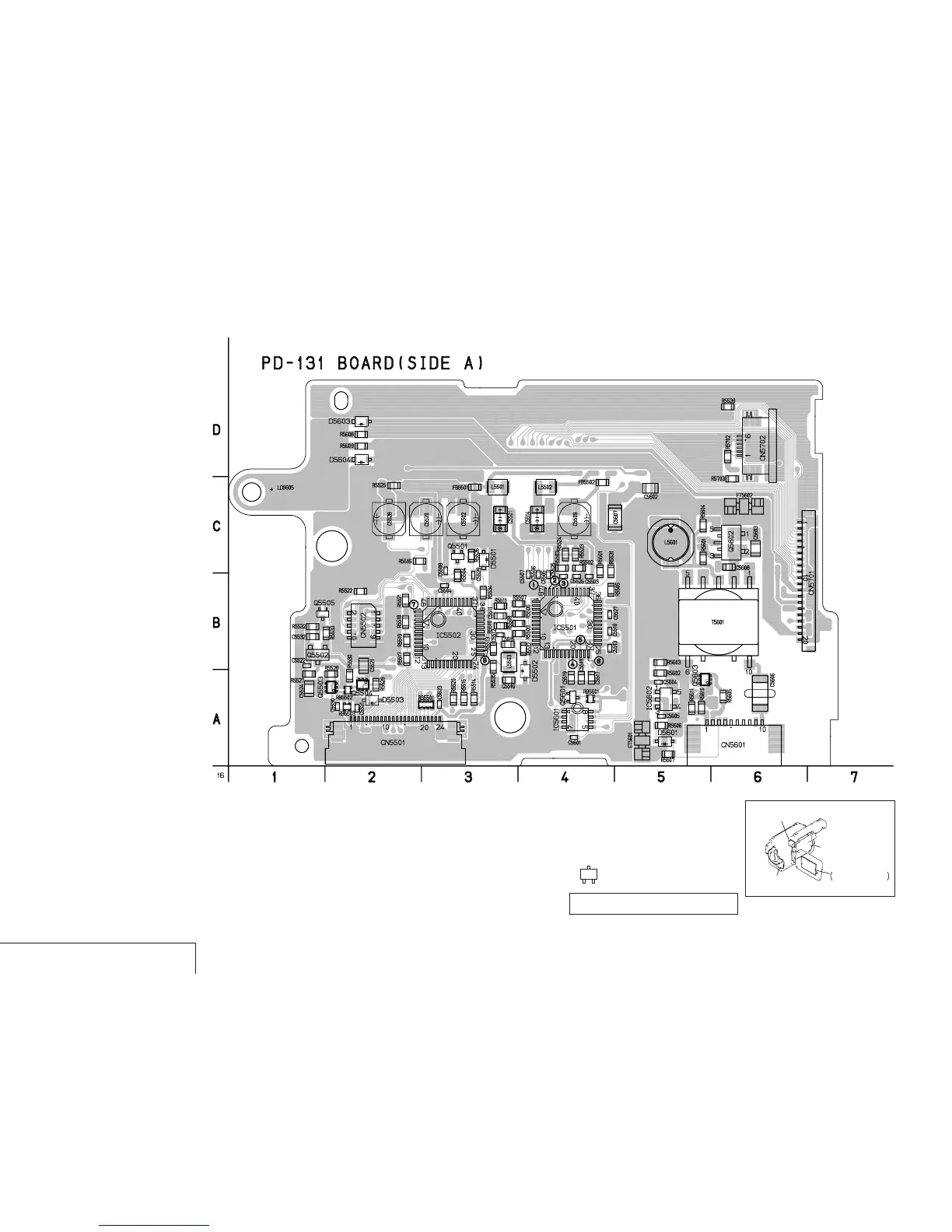

PD-131 (RGB, TIMING GENERATOR, BACK LIGHT) PRINTED WIRING BOARD
— Ref. No. PD-131 Board; 10,000 Series —
To Next Page
