Sony CCD-CCD-TRV49E - Battery Panel Section (Battery Terminal Board)

2-10

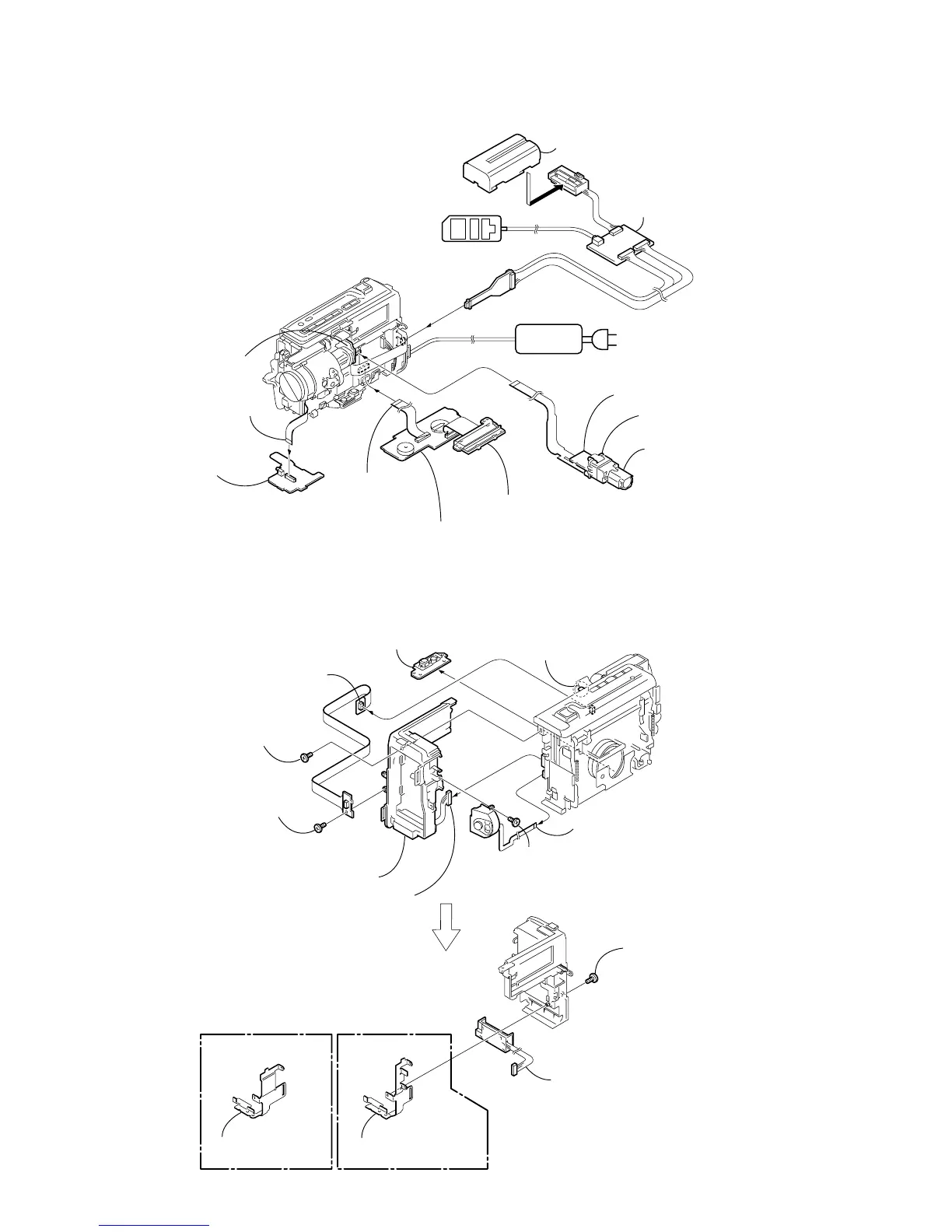

2-9. BATTERY PANEL SECTION (BATTERY TERMINAL BOARD)
CF-077 board
Liquid crystal display panel,
LCD holder
[VF-141, LB-062, CD-286, CF-077, MI-040 BOARDS SERVICE POSITION]
C
F
-077
Adjustment remote
commander (RM-95)
Info lithium battery
(L series)
CPC-jig for BX/BK
(J-6082-521-A)
FP-263 flexible board (24P)
CD-286 board
MI-040 board
FFC-295 flexible
flat cable (24P)
MI-040
VF-141 board
LB-062 board
VF lens (C) (97) assembly
AC IN
AC power
adaptor
5 MI screw
(M2 × 4) (H)
2 MI screw
(M2 × 4) (H)
(TR model)
1 MI screw
(M2 × 4) (H
)
3 Battery terminal board
2 Strap sheet metal
(lower) (10)
(TR model)(TRV model)
2 Strap sheet metal
(lower) (12)
6 MI screw
(M2 × 4) (H)
8 Battery panel section
3 FP-262 flexible board
(20P)(TR model)
9 Control switch block
(SS-1000) (5P)
4 Battery terminal board (7P)
1 Tripod screw
7 Claw
(Remove the Cabinet (L) section reffering to section 2-4 before starting disassembling.)
