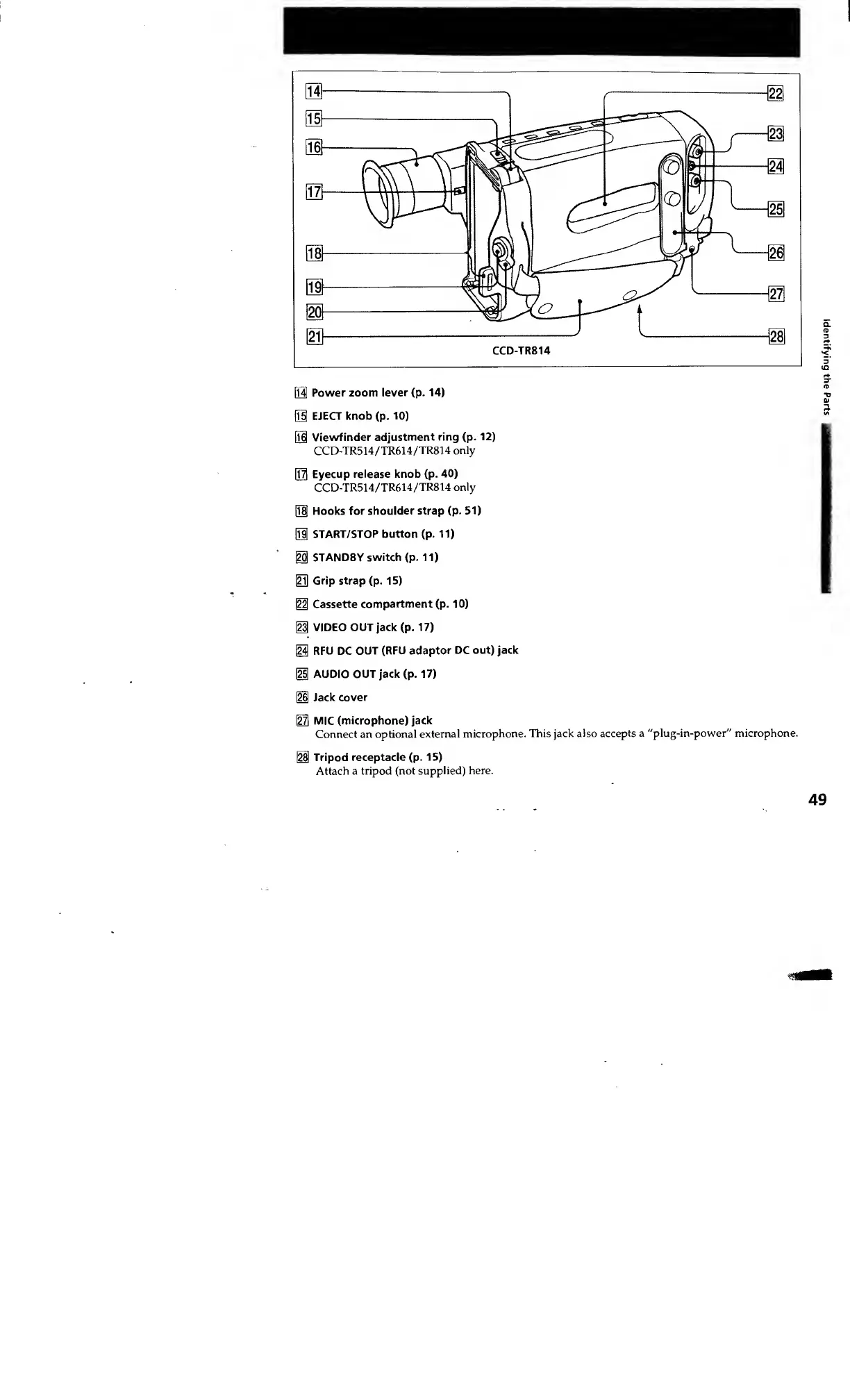

Sony CCD-TR814 - Page 49

M Power zoom lever (p. 14)
(H EJECT knob (p. 10)
51 Viewfinder adjustment ring (p. 12)
CCD-TR514/TR614/TR814 only
Q7] Eyecup release knob (p. 40)
CCD-TR514/TR614/TR814 only
51 Hooks for shoulder strap (p. 51)
51 START/STOP button (p. 11)
M STANDBY switch (p. 11)
U Grip strap (p. 15)
M Cassette compartment (p. 10)
IH VIDEO OUT jack (p. 17)
[24j RFU DC OUT (RFU adaptor DC out) jack
HI AUDIO OUT jack (p. 17)
IH Jack cover
[27] MIC (microphone) jack
Connect an optional external microphone. This jack also accepts a "plug-in-power" microphone.
[28l Tripod receptacle (p. 15)
Attach a tripod (not supplied) here.
49
Identifying
the
Parts
