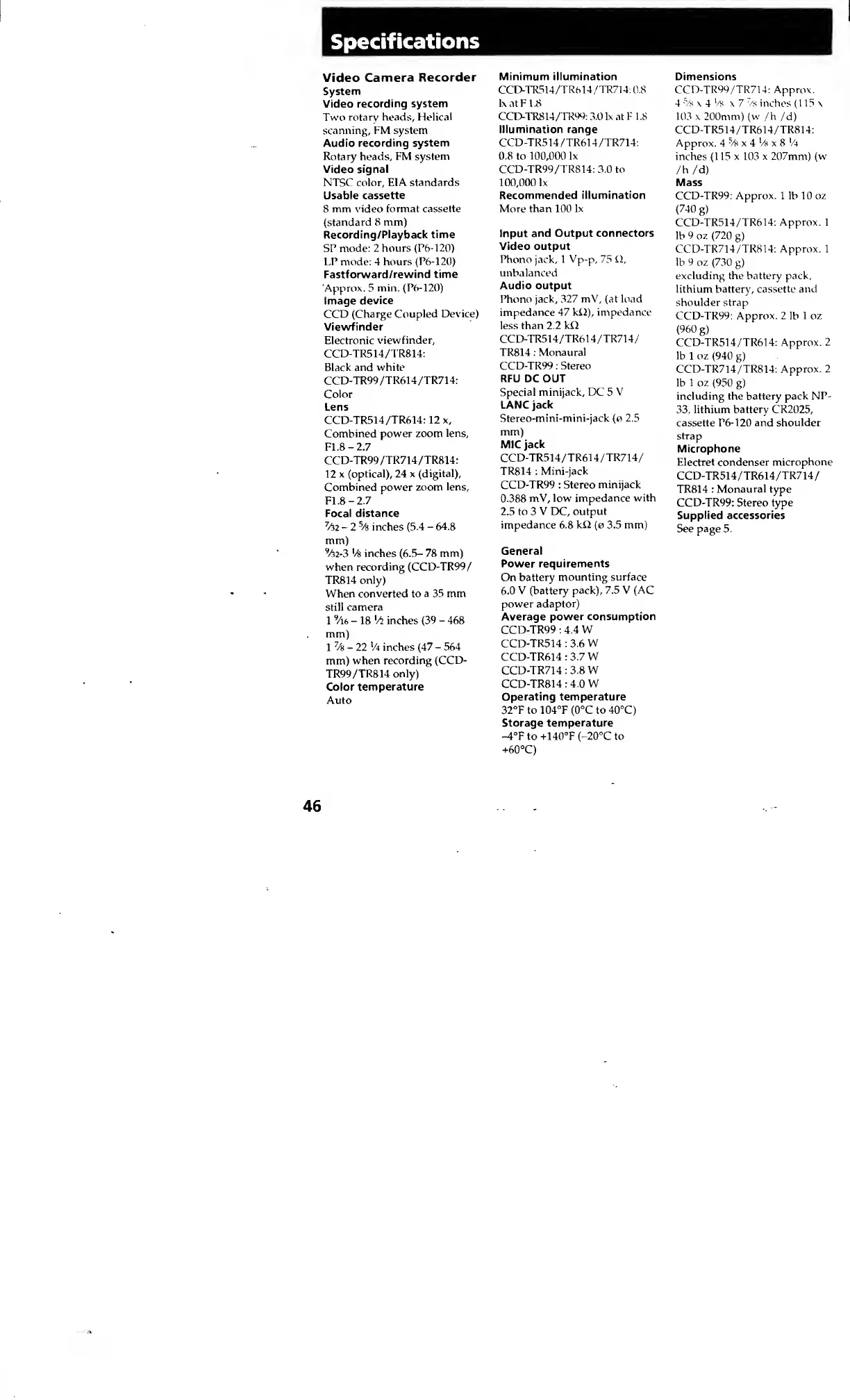

Specifications
Video Camera Recorder
System
Video recording system
Two rotary heads. Helical
scanning, FM system
Audio recording system
Rotary heads, FM system
Video signal
NTSC color, EIA standards
Usable cassette
8 mm video format cassette
(standard 8 mm)
Recording/Playback time
SI> mode: 2 hours (P6-120)
LP mode: 4 hours (P6-120)
Fastforward/rewind time
Approx. 5 min. (P6-120)
Image device
CCD (Charge Coupled Device)
Viewfinder
Electronic viewfinder,
CCD-TR514/TR814:
Black and white
CCD-TR99/TR614/TR714:
Color
Lens
CCD-TR514/TR614:12 x.
Combined power zoom lens,
FI.8 - 2.7
CCD-TR99/TR714/TR814:
12 x (optical), 24 x (digital).
Combined power zoom lens,
FI.8 - 2.7
Focal distance
%2 - 2 % inches (5.4 - 64.8
mm)
% 2-3 Vfc inches (6.5- 78 mm)
when recording (CCD-TR99/
TR814 only)
When converted to a 35 mm
still camera
1 9 /i6 - 18 Vi inches (39 - 468
mm)
1 7 /s - 22 ’/4 inches (47 - 564
mm) when recording (CCD-
TR99/TR814 only)
Color temperature
Auto
Minimum illumination
CCD-TR514/TR614/TR714:0.8
lx at F 1.8
CCD-TR814/TR99: 3.0 lx at F 1.8
Illumination range
CCD-TR514/TR614/TR714:
0.8 to 100,000 lx
CCD-TR99/TR814: 3.0 to
100,000 lx
Recommended illumination
More than 100 lx
Input and Output connectors
Video output
Phono jack, 1 Vp-p, 75 Q,
unbalanced
Audio output
Phono jack, 327 mV, (at load
impedance 47 ki2), impedance
less than 2.2 k£2
CCD-TR514/TR614/TR714/
TR814: Monaural
CCD-TR99: Stereo
RFU DC OUT
Special minijack, DC 5 V
LANC jack
Stereo-mini-mini-jack (o 2.5
mm)
MIC jack
CCD-TR514/TR614/TR714/
TR814 : Mini-jack
CCD-TR99 : Stereo minijack
0.388 mV, low impedance with
2.5 to 3 V DC, output
impedance 6.8 k£2 (0 3.5 mm)
General
Power requirements
On battery mounting surface
6.0 V (battery pack), 7.5 V (AC
power adaptor)
Average power consumption
CCD-TR99 : 4.4 W
CCD-TR514 : 3.6 W
CCD-TR614 : 3.7 W
CCD-TR714 : 3.8 W
CCD-TR814 : 4.0 W
Operating temperature
32°F to 104°F (0°C to 40°C)
Storage temperature
-4°F to +140°F (-20°C to
+60°C)
Dimensions
CCD-TR99/TR714: Approx.
4 -Vs \ 4 Vs x 7 vs inches (115 \
103 x 200mm) (w /h /d)
CCD-TR514/TR614/TR814:
Approx. 4 5 /S x 4 Vs x 8 Vi
inches (115 x 103 x 207mm) (w
/h/d)
Mass
CCD-TR99: Approx. 1 lb 10 oz
(740 g)
CCD-TR514/TR614: Approx. 1
lb 9 oz (720 g)
CCD-TR714/TR814: Approx. 1
lb 9 oz (730 g)
excluding the battery pack,
lithium battery, cassette and
shoulder strap
CCD-TR99: Approx. 2 lb 1 oz
(960 g)
CCD-TR514/TR614: Approx. 2
lb 1 oz (940 g)
CCD-TR714/TR814: Approx. 2
lb 1 oz (950 g)
including the battery pack NP-
33, lithium battery CR2025,
cassette P6-120 and shoulder
strap
Microphone
Electret condenser microphone
CCD-TR514/TR614/TR714/
TR814 : Monaural type
CCD-TR99: Stereo type
Supplied accessories
See page 5.
46
