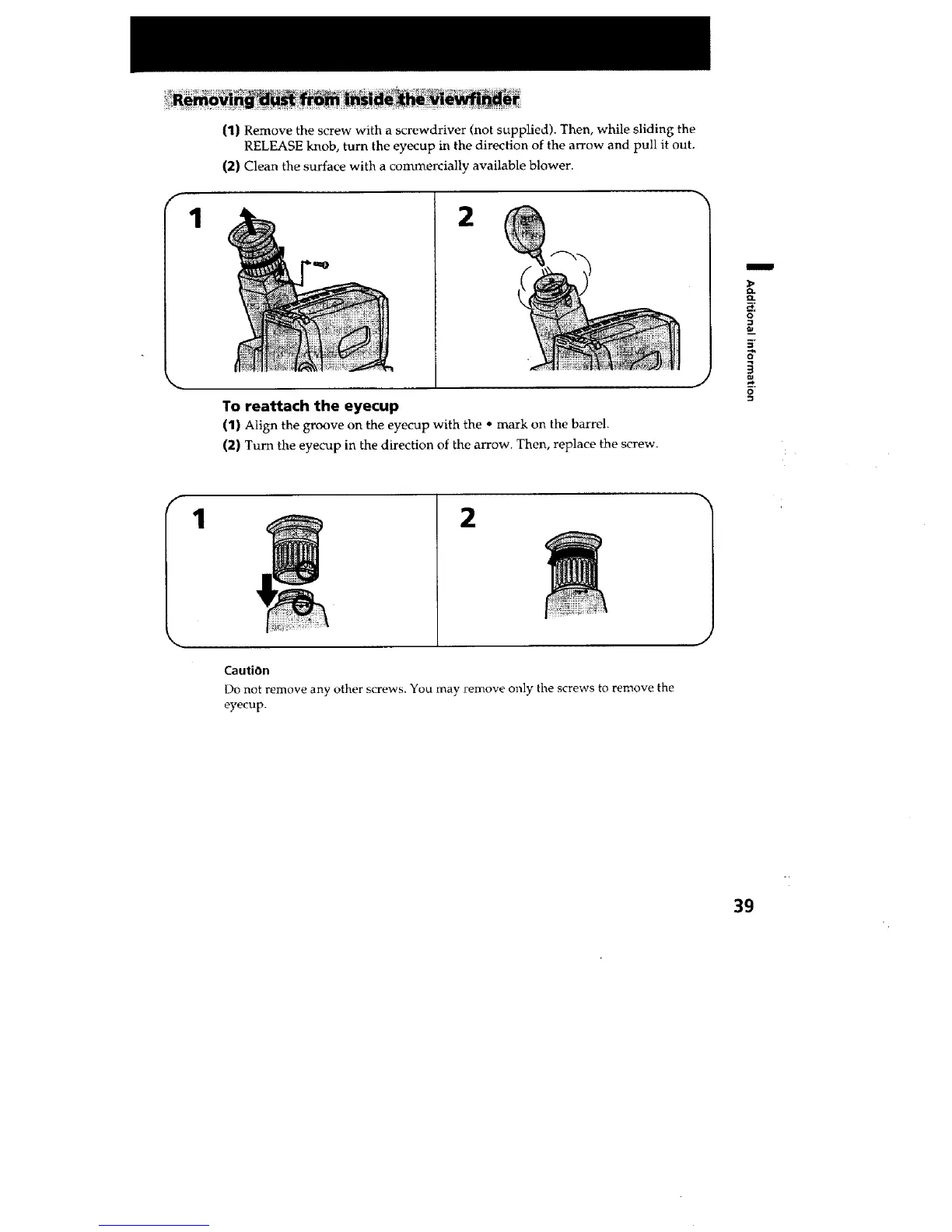

Sony CCD-TRV22 - Removing Dust from Inside the Viewfinder; To Reattach the Eyecup

1
(1} Remove the screw with a screwdriver (not supplied). Then, while sliding the
RELEASE knob, turn the eyecup in the direction of the arrow and pull it out.
(2) Clean the surface with a commercially available blower.
2
To reattach the eyecup
(1) Align the groove on the eyecup with the • mark on the barrel.
(2) Turn the eyecup in the direction of the arrow. Then, replace the screw.
m
D.
0.
O
1
2
CautiOn
Do not remove any other screws. You may remove only the screws to remove the
eyecup.
39
