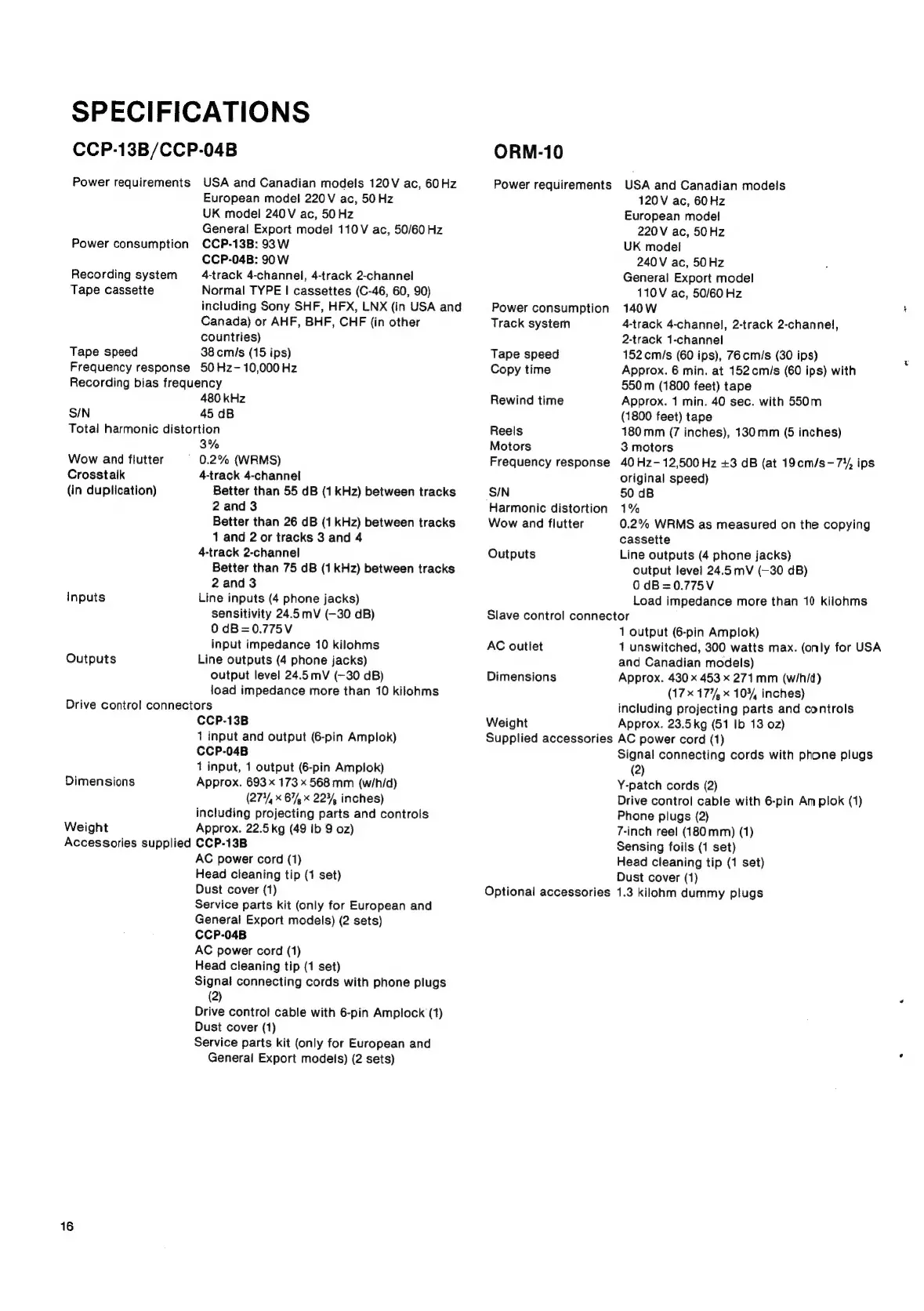

SPECIFICATIONS
CCP-13B/CCP-04B
Power requirements USA and Canadian models 120V ac, 60Hz
European model 220 V ac, 50 Hz
UK model 240 V ac, 50 Hz
General Export model 110V ac, 50/60 Hz
Power consumption CCP-13B: 93W
CCP-04B: 90 W
4-track 4-channel, 4-track 2-channel
Normal TYPE | cassettes (C-46, 60, 90)
including Sony SHF, HFX, LNX (in USA and
Canada) or AHF, BHF, CHF (in other
countries)
Tape speed 38 cm/s (15 ips)
Frequency response 50Hz- 10,000Hz
Recording bias frequency
Recording system
Tape cassette
480 kHz
S/N 45 dB
Total harmonic distortion
3%
~ 0.2% (WRMS)
4-track 4-channel
Better than 55 dB (1 kHz) between tracks
2 and 3
Better than 26 dB (1 kHz) between tracks
1 and 2 or tracks 3 and 4
4-track 2-channel
Better than 75 dB (1 kHz) between tracks
2 and 3
Wow and flutter
Crosstalk
(in duplication)
Inputs Line inputs (4 phone jacks)
sensitivity 24.5 mV (—30 dB)
0 dB=0.775V
input impedance 10 kilohms
Outputs Line outputs (4 phone jacks)
output level 24.5 mV (-30 dB)
load impedance more than 10 kilohms
Drive control connectors
CCP-13B
1 input and output (6-pin Amplok)
CCP-04B
1 input, 1 output (6-pin Amplok)
Dimensions Approx. 693 x 173 x 568 mm (w/h/d)
(27%, x 67, x 22% inches)
including projecting parts and controls
Weight Approx. 22.5 kg (49 Ib 9 oz)
Accessories supplied CCP-13B
AC power cord (1)
Head cleaning tip (1 set)
Dust cover (1)
Service parts kit (only for European and
General Export models) (2 sets)
CCP-04B
AC power cord (1)
Head cleaning tip (1 set)
Signal connecting cords with phone plugs
(2)
Drive control cable with 6-pin Amplock (1)
Dust cover (1)
Service parts kit (only for European and
Generali Export models) (2 sets)
16
ORM-10
Power requirements USA and Canadian models
120V ac, 60Hz
European model
220V ac, 50Hz
UK model
240V ac, 50Hz
General Export model
110V ac, 50/60 Hz
140W
4-track 4-channel, 2-track 2-channel,
2-track 1-channel
Power consumption
Track system
Tape speed 152 cm/s (60 ips), 76 cm/s (30 ips)
Copy time Approx. 6 min. at 152cm/s (60 ips) with
550 m (1800 feet) tape
Rewind time Approx. 1 min. 40 sec. with 550m
(1800 feet) tape
Reels 180 mm (7 inches), 130mm (5 inches)
Motors 3 motors
Frequency response 40Hz- 12,500 Hz +3 dB (at 19cm/s- 7%, ips
original speed)
S/N 50 dB
Harmonic distortion 1%
Wow and flutter 0.2% WRMS as measured on the copying
cassette
Line outputs (4 phone jacks)
output level 24.5 mV (—30 dB)
0 dB=0.775V
Load impedance more than 10 kilohms
Slave control connector
1 output (6-pin Amplok)
Outputs
AC outlet 1 unswitched, 300 watts max. (only for USA
and Canadian models)
Dimensions Approx. 430 x 453 x 271 mm (wi/hid)
(17x 177%, x 10%, inches)
including projecting parts and controls
Weight Approx. 23.5kg (51 Ib 13 0z)
Supplied accessories AC power cord (1)
Signal connecting cords with phone plugs
(2)
Y-patch cords (2)
Drive control cable with 6-pin Am plok (1)
Phone plugs (2)
7-inch reel (180mm) (1)
Sensing foils (1 set)
Head cleaning tip (1 set)
Dust cover (1)
Optional accessories 1.3 kilohm dummy plugs
