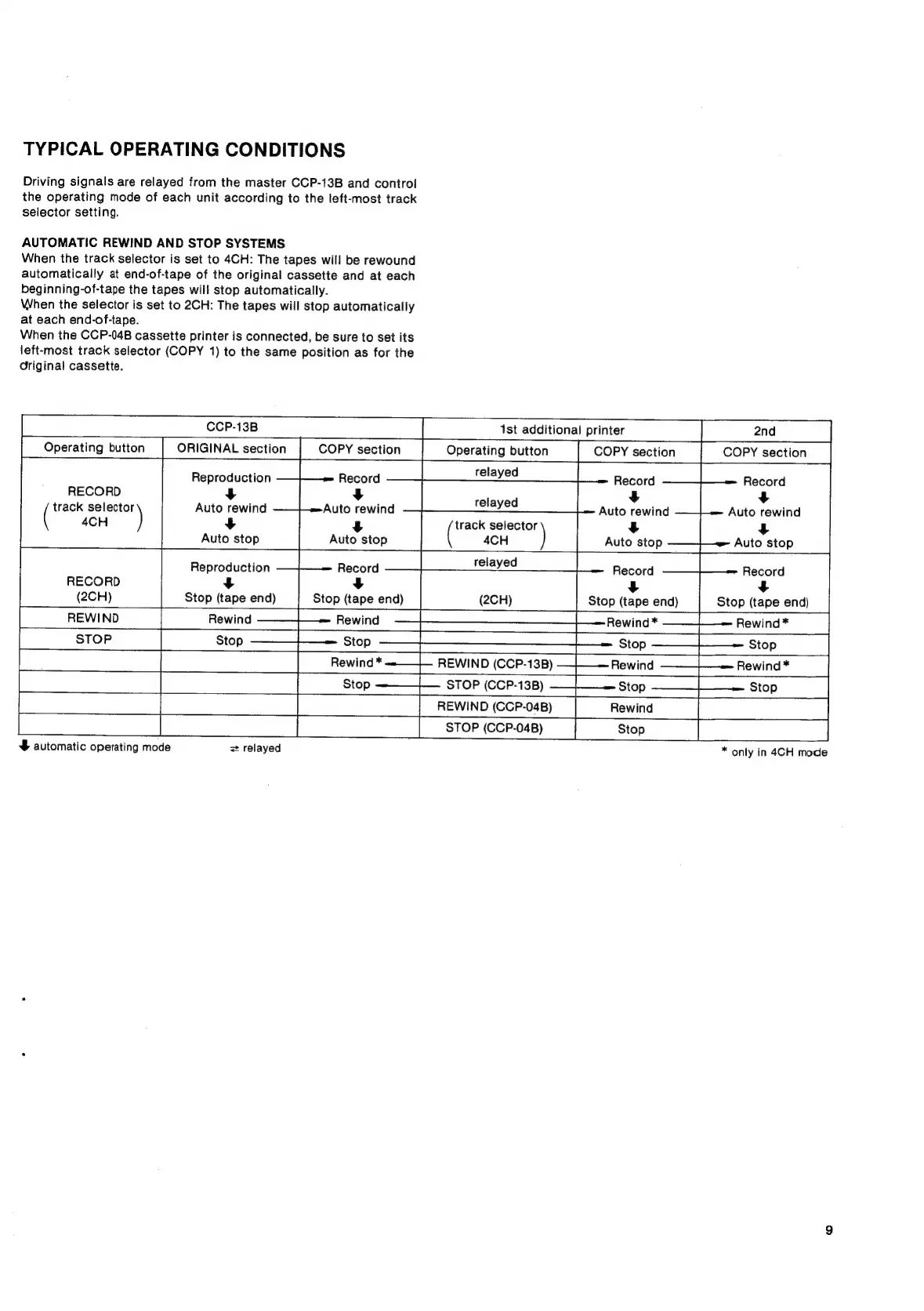

TYPICAL OPERATING CONDITIONS
Driving signals are relayed from the master CCP-13B and control
the operating mode of each unit according to the left-most track
selector setting.
AUTOMATIC REWIND AND STOP SYSTEMS
When the track selector is set to 4CH: The tapes will be rewound
automatically at end-of-tape of the original cassette and at each
beginning-of-tape the tapes will stop automatically.
When the selector is set to 2CH: The tapes will stop automatically
at each end-of-tape.
