CDP-CE245/CE345

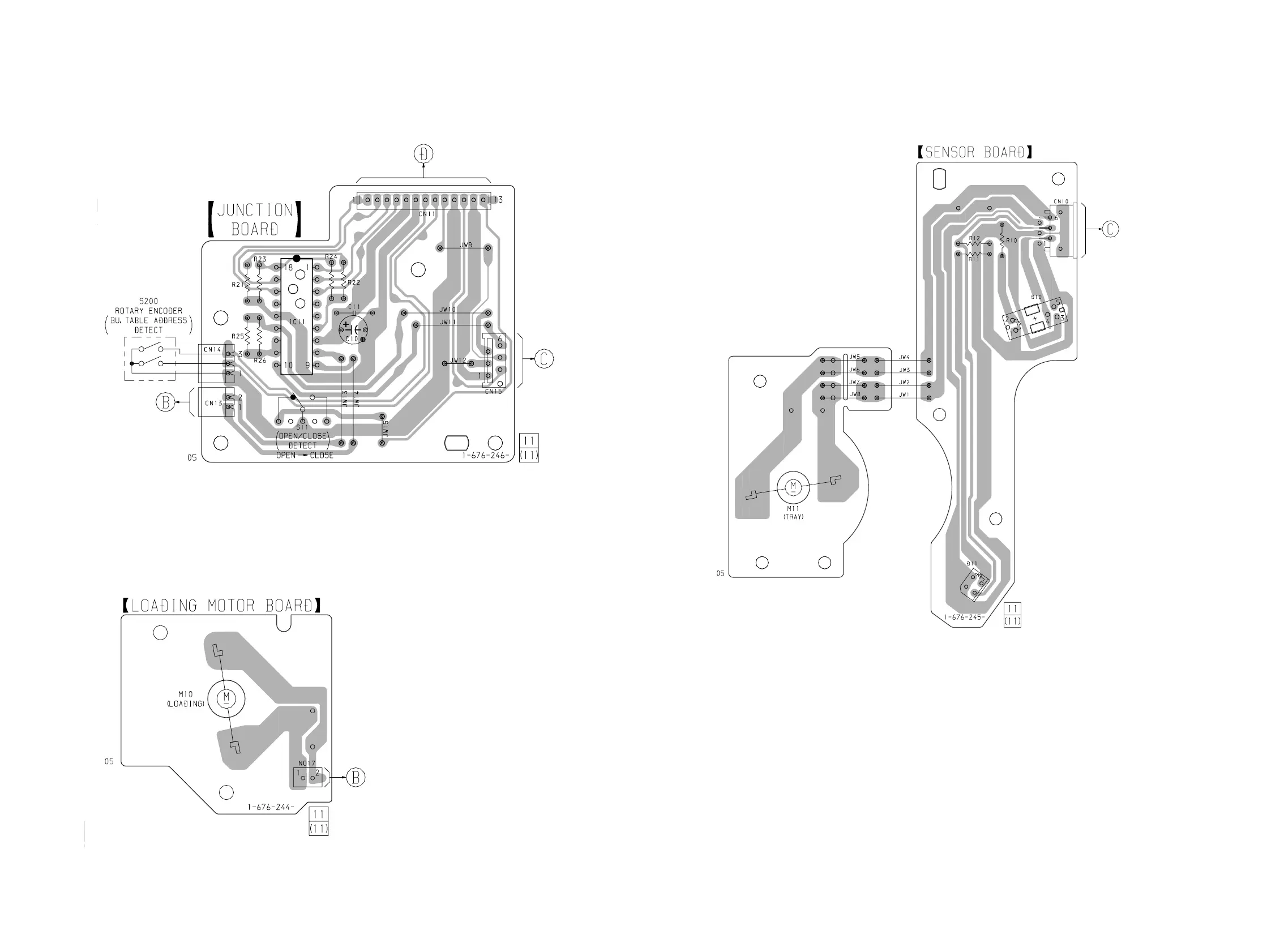

6-4. PRINTED WIRING BOARDS – JUNCTION/SENSOR/LOADING MOTOR Boards –• See page 17 for Circuit Boards Location.
TO LOADING
MOTOR BOARD
TO JUNCTION
BOARD
(Page 22)
TO
SENSOR
BOARD
TO
JUNCTION
BOARD
