33
(1) COVER SECTION
SECTION 7
EXPLODED VIEWS
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AUS : Australian model
CND : Canadian model
EA : Saudi Arabia model
SP : Singapore model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-224-867-01 PANEL, LOADING (BLACK)
1 4-224-867-21 PANEL, LOADING (SILVER)
2 4-210-291-01 SCREW (CASE 3 TP2) (BLACK)
2 4-210-291-11 SCREW (CASE 3 TP2) (SILVER)
3 4-224-875-11 COVER (409537) (BLACK)
3 4-224-875-31 COVER (409537) (SILVER)
4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
2
3
4
21
4

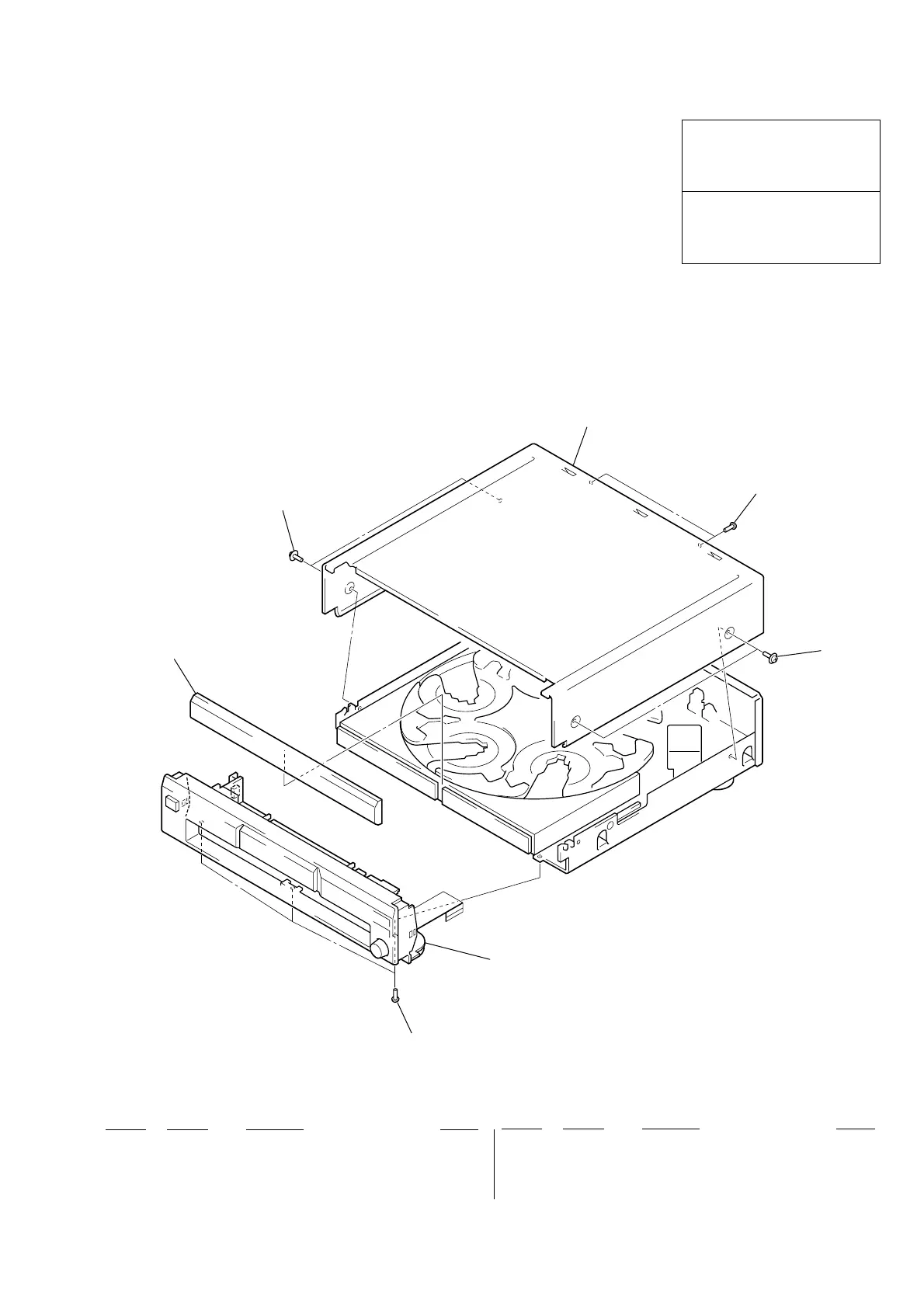

Front panel section
To Next Page
