Sony CDP-CE245 - Printed Wiring Board - MAIN Board

2222
CDP-CE245/CE345

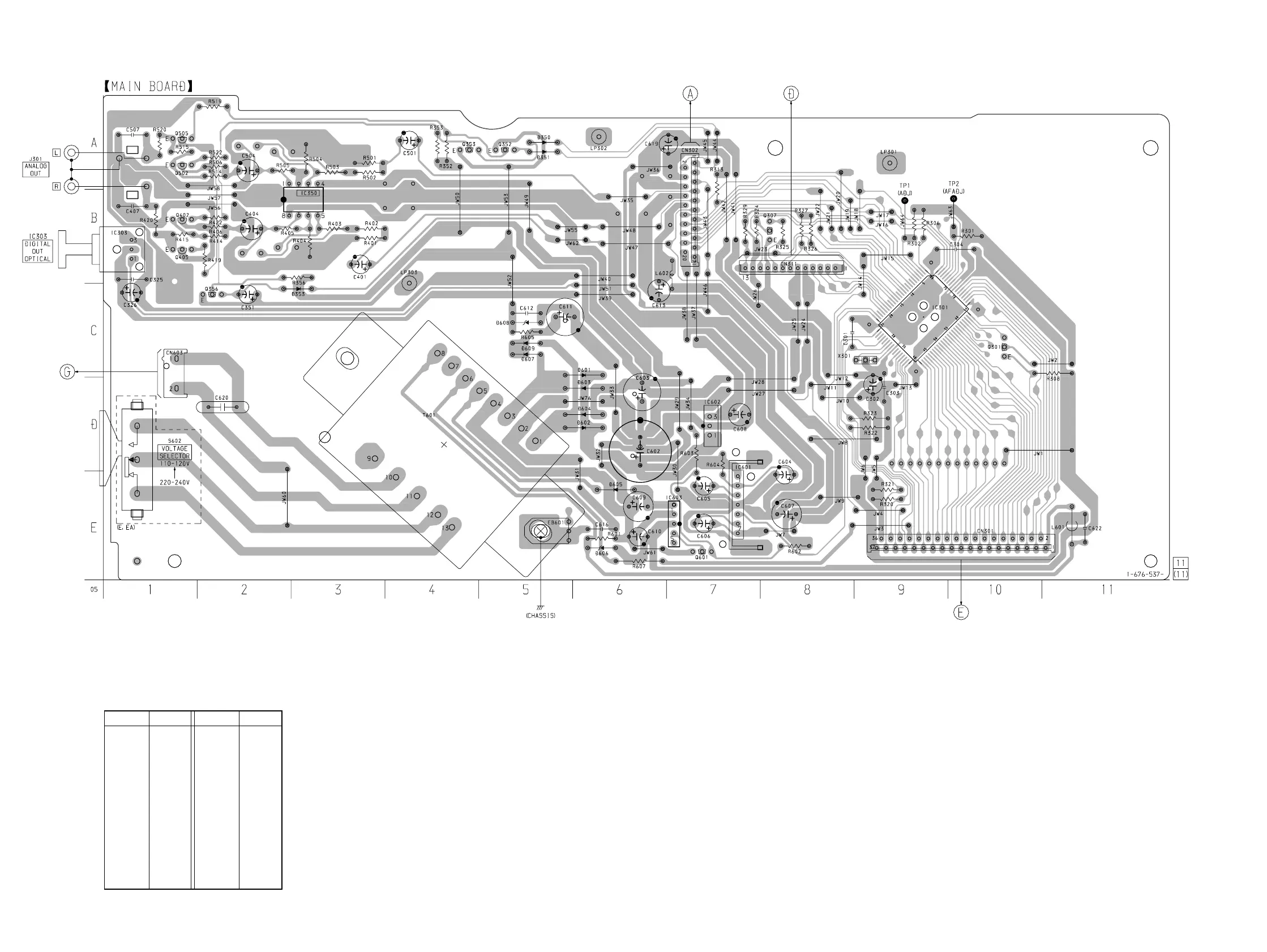

6-6. PRINTED WIRING BOARD – MAIN Board – • See page 17 for Circuit Boards Location.
IC350 B-3
IC601 E-7
IC602 D-7
IC603 E-7
Q301 C-10
Q307 B-8
Q352 A-5
Q353 A-4
Q356 C-2
Q402 B-1
Q405 B-1
Q502 A-1
Q505 A-1
Q601 E-7
Ref. No. LocationRef. No. Location
D350 A-5
D351 A-5
D353 C-3
D601 C-6
D602 D-6
D603 D-6
D604 D-6
D605 E-6
D606 E-6
D607 C-5
D608 C-5
D609 C-5
IC301 C-9
IC303 B-1
• Semiconductor Location
(Page 24)
(Page 18) (Page 20)
(Page 24)
