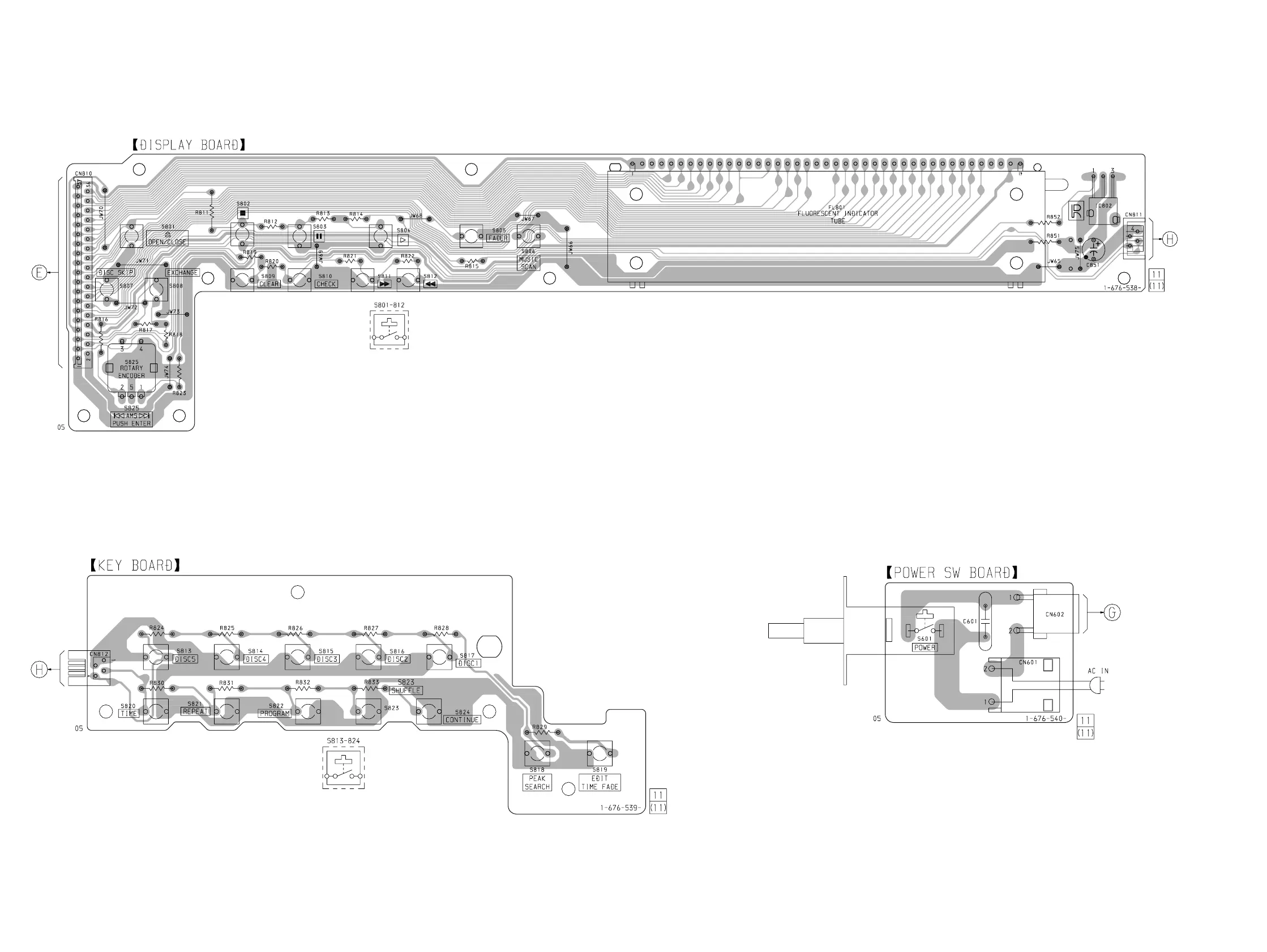

6-8. PRINTED WIRING BOARDS – PANEL Section –• See page 17 for Circuit Boards Location.
(Page 22)
TO
DISPLAY
BOARD
TO KEY
BOARD
(Page 22)
