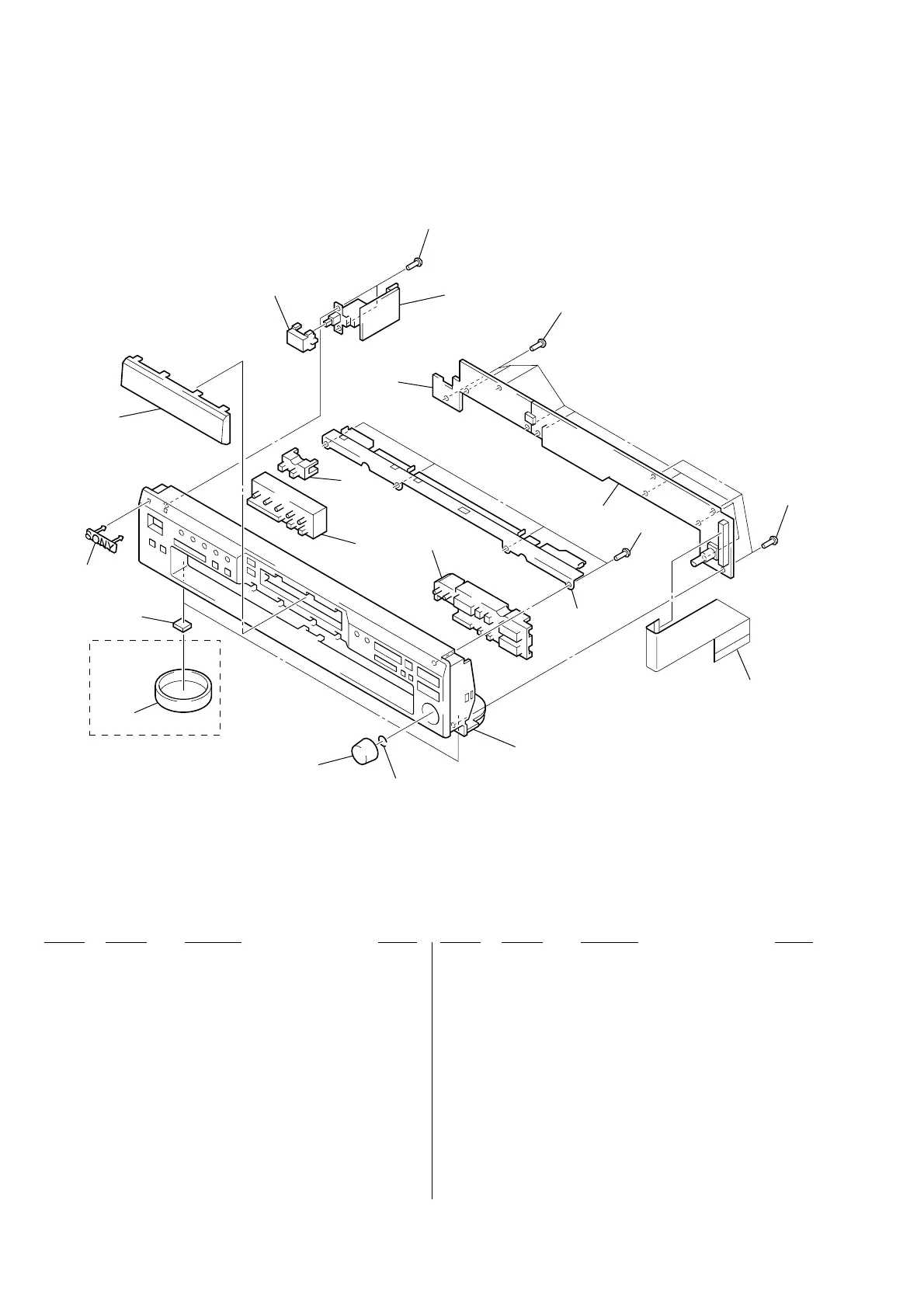

Sony CDP-CE245 - Front Panel Section Exploded View

34
(2) FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-224-861-01 PANEL, FRONT (CE245)
51 4-224-861-11 PANEL, FRONT (CE345: BLACK)
51 4-224-861-31 PANEL, FRONT (CE345: SILVER)
52 3-354-981-01 SPRING (SUS), RING
53 4-224-868-01 KNOB (AMS) (BLACK)
53 4-224-868-11 KNOB (AMS) (SILVER)
54 4-977-593-01 RING (DIA. 50), ORNAMENTAL
(EXCEPT US, CND)
* 55 4-978-398-21 CUSHION
56 4-996-698-41 EMBLEM, SONY
57 4-224-866-01 WINDOW (FL) (CE245)
57 4-224-866-11 WINDOW (FL) (CE345)
58 4-224-864-01 BUTTON (PLAY) (H. X. x. A OPEN/CLOSE.
EX-CHANGE. DISC SKIP) (BLACK)
58 4-224-864-11 BUTTON (PLAY) (H. X. x. A OPEN/CLOSE.
EX-CHANGE. DISC SKIP) (SILVER)
59 4-224-862-01 BUTTON (DISC) (BLACK)
59 4-224-862-11 BUTTON (DISC) (SILVER)
60 4-224-863-01 BUTTON (MODE) (BLACK)
60 4-224-863-11 BUTTON (MODE) (SILVER)
61 3-931-429-21 BUTTON (POWER) (!) (BLACK)
61 4-227-979-01 BUTTON (POWER) (!) (SILVER)
62 4-951-620-01 SCREW (2.6X8), +BVTP
63 1-676-540-11 POWER SW BOARD
64 1-676-539-11 KEY BOARD
65 A-4725-007-A DISPLAY BOARD, COMPLETE
66 1-792-486-11 WIRE (FLAT TYPE) (37 CORE)
53
54
55
56
EXCEPT US,
CND
52
51
57
61
62
62
62
62
66
65
not supplied
58
59
63
64
60
