Sony CDP-CE245 - Chassis Section Exploded View

35

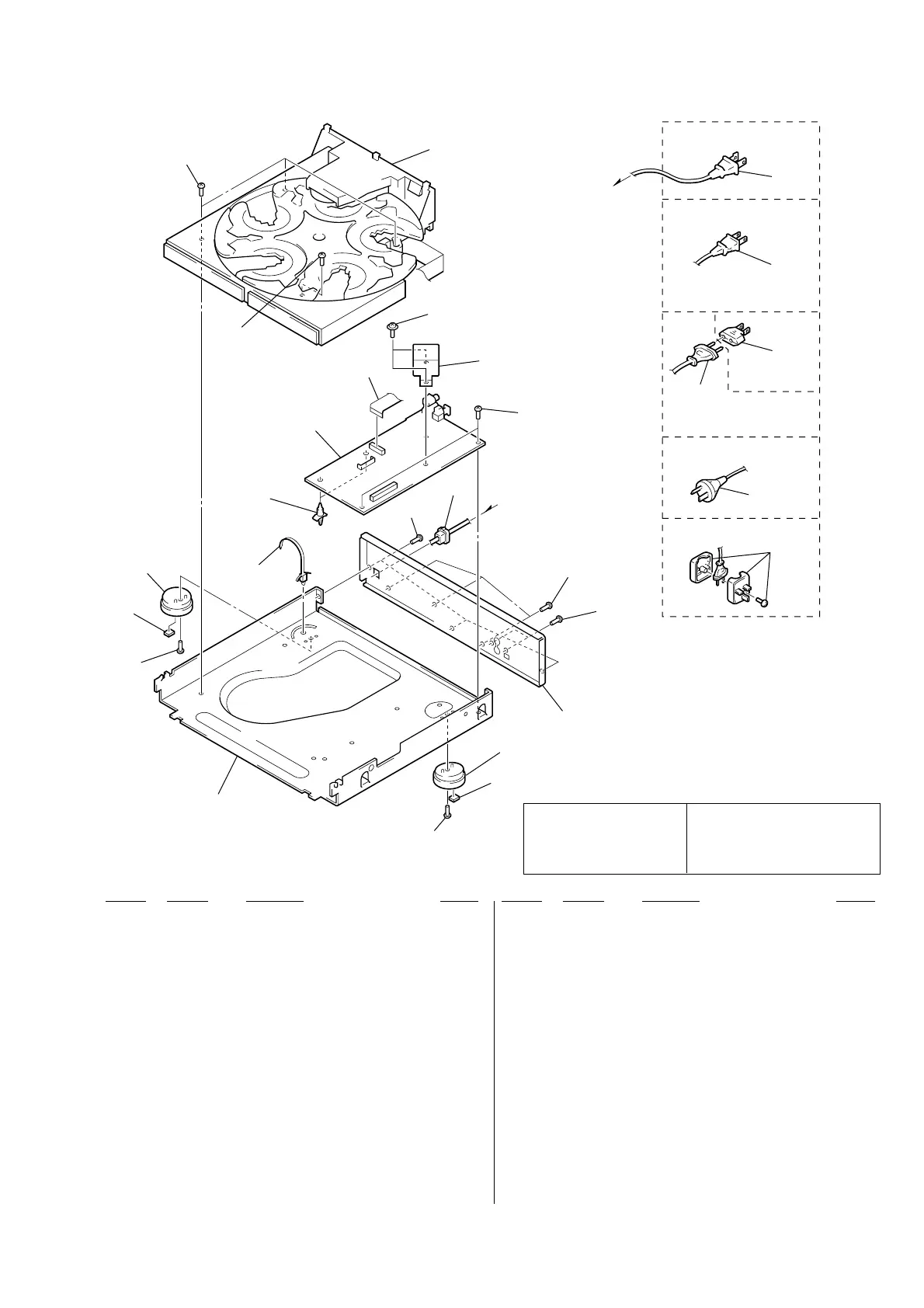

(3) CHASSIS SECTION
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-977-591-11 FOOT (F50150S)
* 102 4-978-398-21 CUSHION
103 4-943-687-01 HOLDER, PC BOARD
104 A-4725-005-A MAIN BOARD, COMPLETE (US, CND)
104 A-4725-009-A MAIN BOARD, COMPLETE (AEP, UK, SP, AUS)
104 A-4725-010-A MAIN BOARD, COMPLETE (E, EA)
105 1-792-130-11 WIRE (FLAT TYPE) (21 CORE)
106 3-703-249-01 SCREW, S TIGHT, +PTTWH 3X6
107 3-703-571-11 BUSHING (S) (FBS002), CORD (E)
107 4-966-267-11 BUSHING (FBS001), CORD (EXCEPT E)
108 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
109 4-224-877-01 PANEL, BACK (CE245: US)
109 4-224-877-11 PANEL, BACK (CE245: CND)
109 4-224-877-41 PANEL, BACK (CE245: AUS)
109 4-224-878-01 PANEL, BACK (CE345: US)
109 4-224-878-11 PANEL, BACK (CE345: CND)
109 4-224-878-21 PANEL, BACK (CE345: AEP)
109 4-224-878-31 PANEL, BACK (CE345: UK)
109 4-224-878-41 PANEL, BACK (CE345: AUS)
109 4-224-878-52 PANEL, BACK (CE345: E)
109 4-224-878-61 PANEL, BACK (CE345: SP)
109 4-224-878-71 PANEL, BACK (CE345: EA)
0 110 1-558-943-41 CORD, POWER (E)
0 110 1-575-651-21 CORD, POWER (AEP, UK, EA, SP)
0 110 1-590-926-11 CORD, POWER (CND)
0 110 1-696-845-11 CORD, POWER (AUS)
0 110 1-783-531-31 CORD, POWER (US)
0 111 1-569-008-31 ADAPTOR, CONVERSION (EA)
0 111 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)
0 T601 1-435-342-11 TRANSFORMER, POWER (US, CND)
0 T601 1-435-343-11 TRANSFORMER, POWER (AEP, UK, SP, AUS)
0 T601 1-435-344-11 TRANSFORMER, POWER (E, EA)
101
102
108
108
102
101
103
104
108
108
105
106
110
108
108
108
109
108
not supplied
not supplied
CDM59-5BD32A
US, CND
E
AEP, UK, EA, SP
AUS
UK
EA
T601
110
110
110
111
111
107
