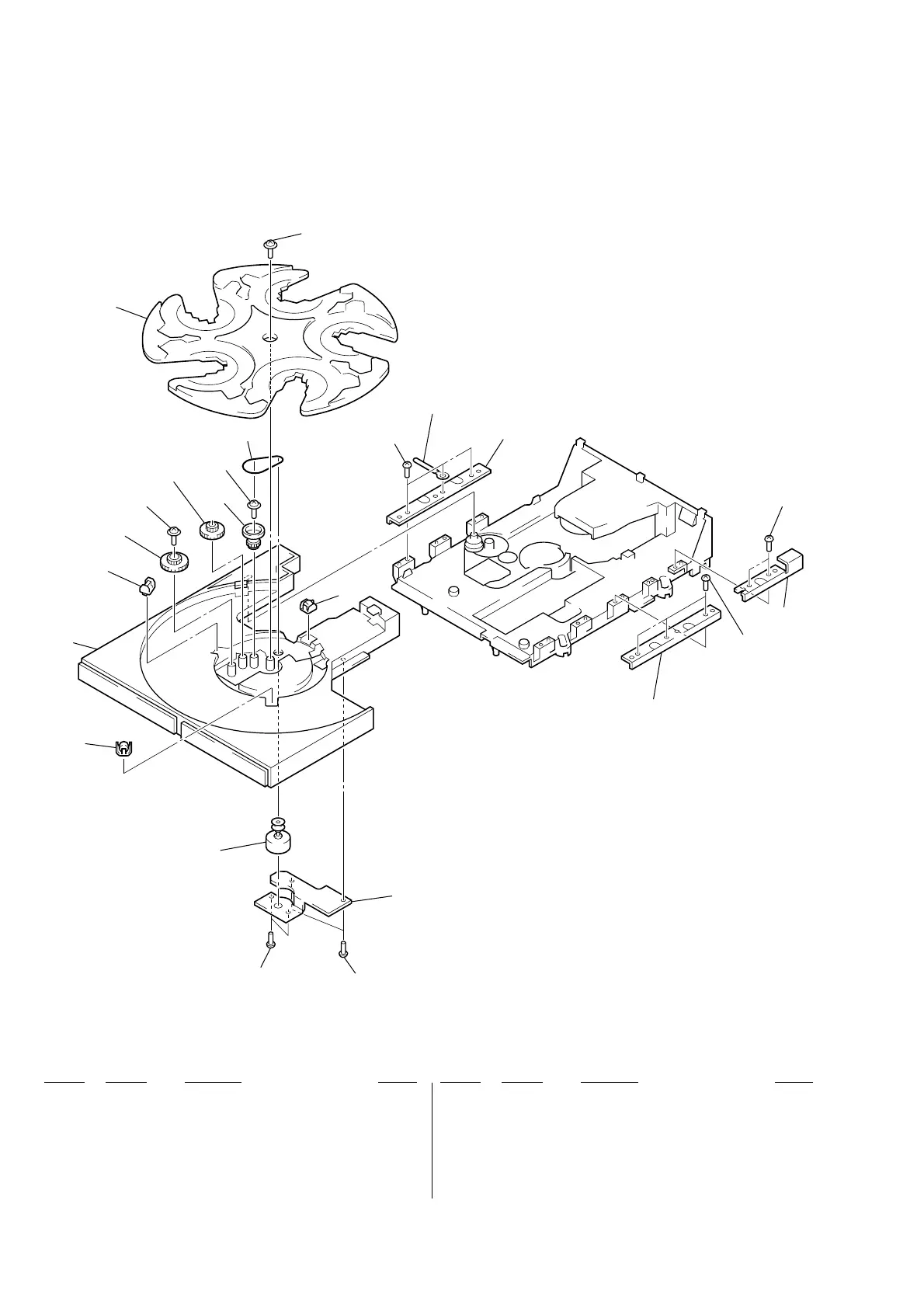

Sony CDP-CE245 - CD Mechanism Deck Section-1 Exploded View

36
(4) CD MECHANISM DECK SECTION-1
(CDM59-5BD32A)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 1-676-245-11 SENSOR BOARD
202 4-218-253-01 SCREW (M2.6), +BTTP
* 203 X-4947-960-1 ROLLER ASSY
204 4-224-602-01 TABLE
205 4-224-617-01 GEAR (RM-E)
206 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
207 4-224-616-01 GEAR (RM-M)
208 4-224-615-01 GEAR (RM-B)
209 4-225-328-01 BELT (ROTARY)
210 4-224-603-01 TRAY
211 4-224-619-01 BRACKET (GUIDE)
M11 A-4672-867-A MOTOR ASSY, ROTARY (TRAY)
201
202
202
203
203
205
206
207
208
203
206
209
202
not supplied
204
M11
210
206
211
202
202
211
not
supplied
