Sony CDP-CE245 - CD Mechanism Deck Section-2 Exploded View

37

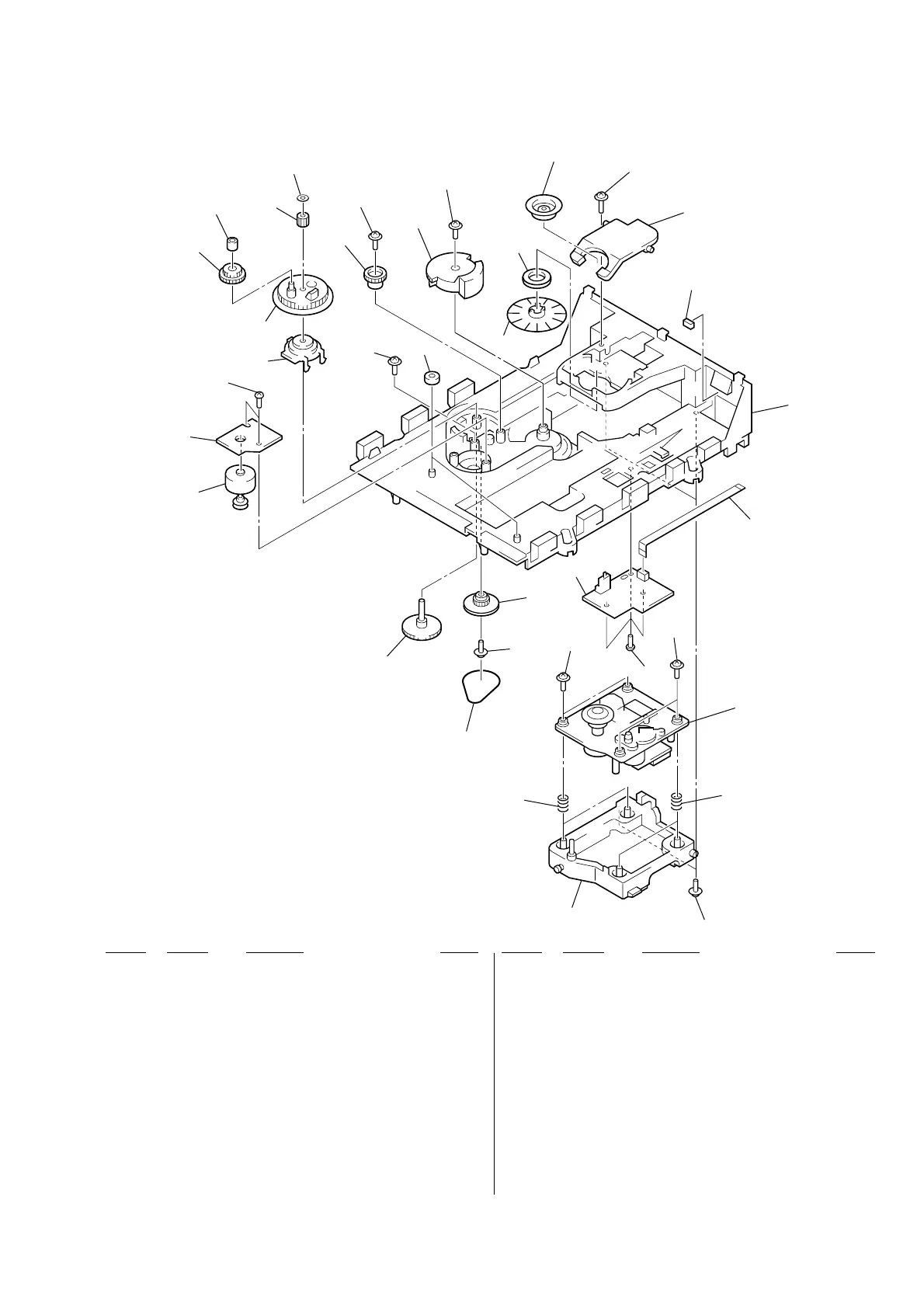

(5) CD MECHANISM DECK SECTION-2
(CDM59-5BD32A)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
252 X-4952-312-1 HOLDER (BU) ASSY
253 4-959-996-21 SPRING (932), COMPRESSION
254 4-225-885-01 BELT (LOADING)
255 4-225-844-01 GEAR (LOADING A)
256 4-224-613-01 GEAR (SHAFT)
257 1-676-244-11 LOADING MOTOR BOARD
258 4-218-253-01 SCREW (M2.6), +BTTP
259 4-224-607-01 GEAR, SWING
260 4-224-609-01 GEAR (LOADING C)
261 4-224-608-01 COLLAR, SWING
262 4-224-611-01 GEAR (LOADING B)
263 3-016-533-21 WASHER (FR), STOPPER
* 264 4-951-619-21 CUSHION (A)
265 4-224-606-01 GEAR (RV)
266 4-224-605-01 GEAR (U/D)
267 X-4952-019-1 PULLEY (A) ASSY, CHUCKING
268 1-471-061-11 MAGNET ASSY
269 4-221-688-01 PULLEY (B), CHUCKING
270 4-224-618-01 LEVER (LIFTER)
271 1-791-930-11 WIRE (FLAT TYPE) (6 CORE)
272 1-676-246-11 JUNCTION BOARD
M10 A-4672-879-A MOTOR ASSY, LOADING
S200 1-418-746-11 ENCODER, ROTARY
(BU, TABLE ADDRESS DETECT)
251
252
253
253
251
258
BU-5BD32A
251
251
255
272
256
254
271
270
251
269
251
266
265
263
262
261
260
259
258
264
251
268
267
not supplied
not supplied
251
S200
M10
257
