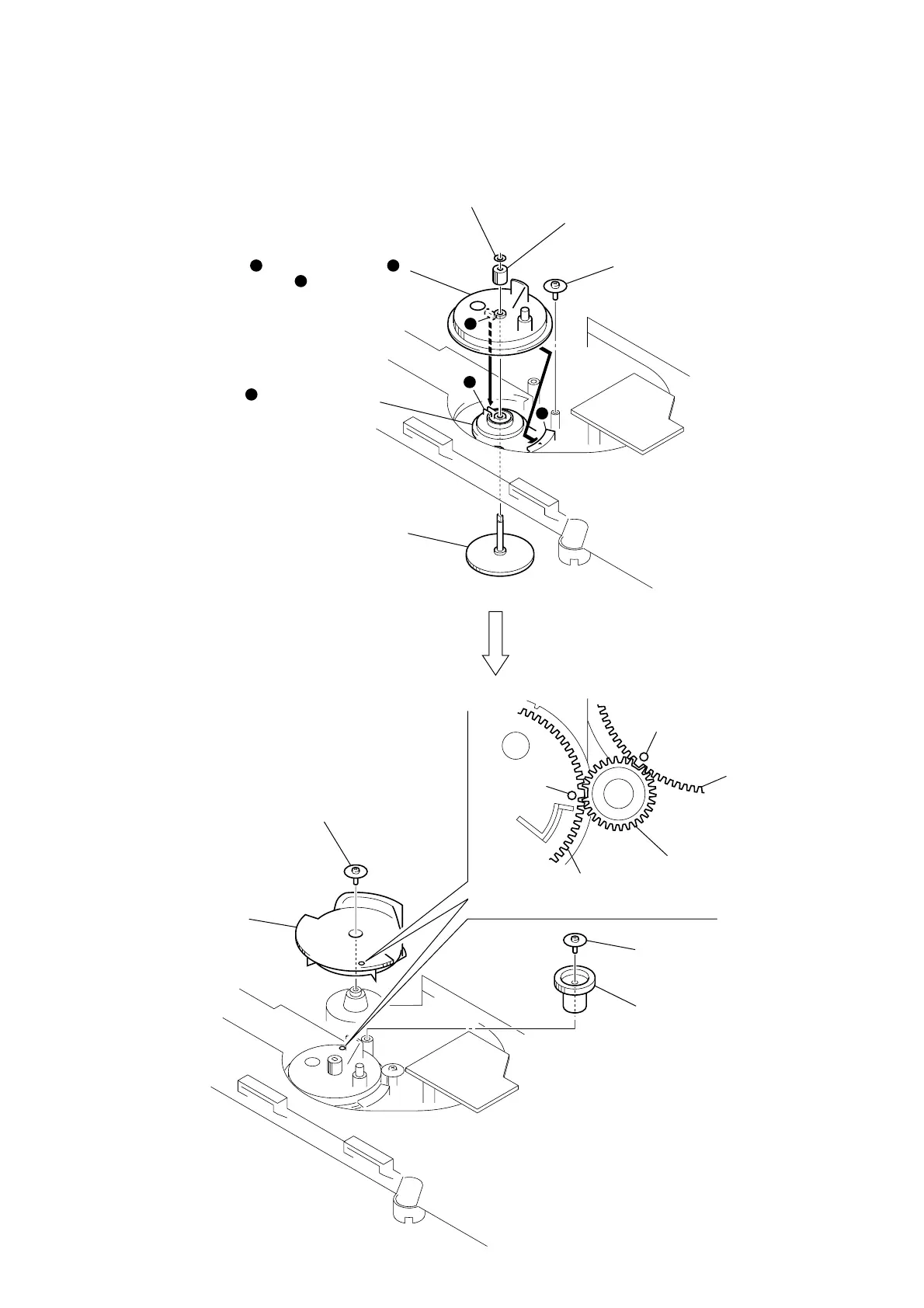

ADJUSTING PHASE OF SWING GEAR AND GEAR (U/D)
Note: Follow the assembly procedure in the numerical order given.
6 screw
(PTPWH M2.6)
5 stopper washer (FR)
4 Push fully the shaft of shaft gear and
align the hole shape of gear (loading B).
3 Let the swing gear through under the
chassis and engage its dowel
with the groove of rotary encoder.
2 Install the rotary encoder so that
its groove comes to the position
shown in the figure.
1 Insert the shaft gear up to the
position where its shaft comes
out by 5 mm.
g
g
h
h
f
f
f
7 gear (U/D)
8 screw
(PTPWH M2.6)
q; screw
(PTPWH M2.6)
circle mark
circle mark
swing gear
gear (RV)
Fig. A
gear (U/D)
9 gear (RV)
Note: Align swing gear, a circle mark
on the gear (U/D), and the teeth
of gear (RV) to the position
showing in the Fig. A.
