Sony CDP-CE375 - Printed Wiring Board - BD Board

1616
CDP-CE275/CE375

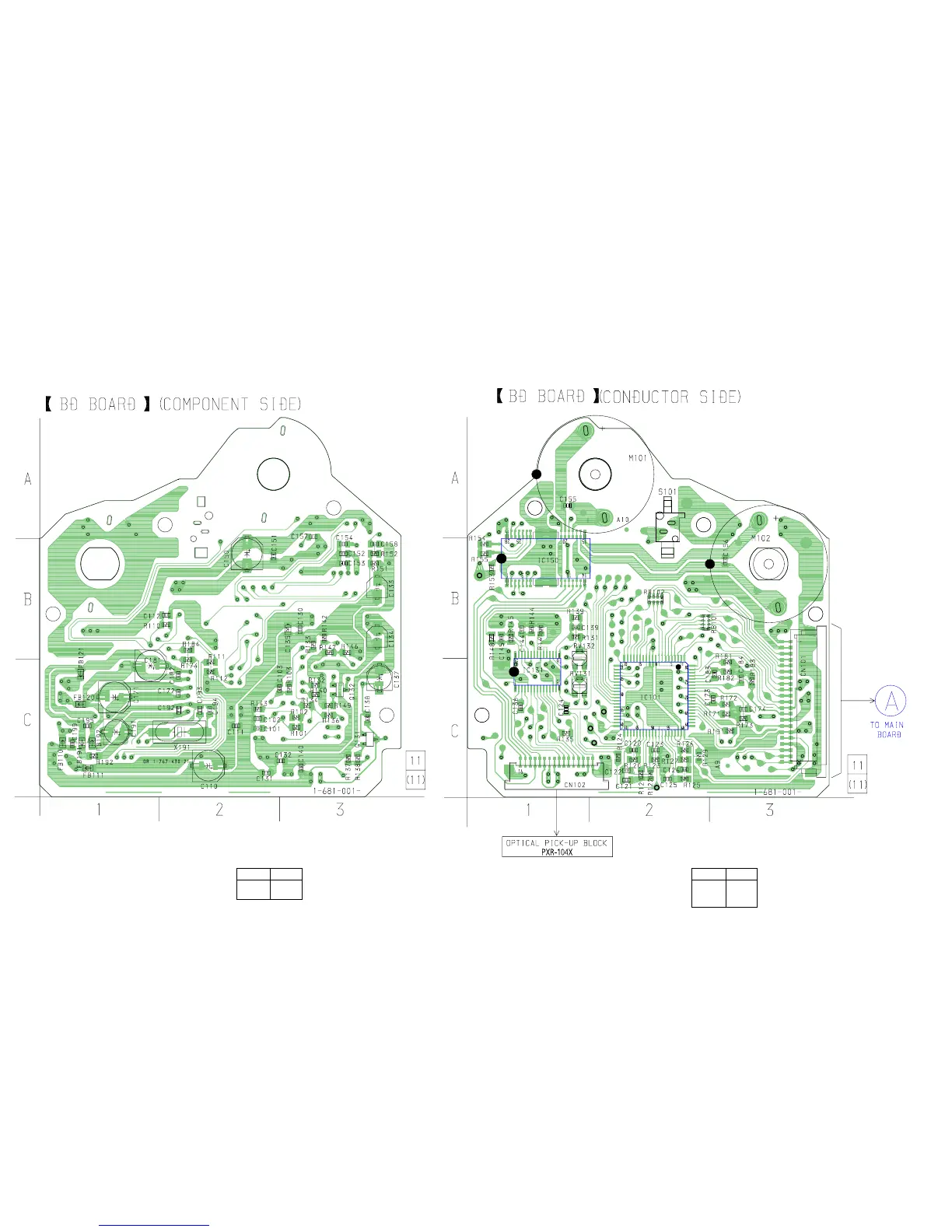

6-2. PRINTED WIRING BOARD – BD Board – • See page 15 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
Q131 C-3
Q132 C-3
• Semiconductor
Location
Ref. No. Location
IC101 C-2
IC131 C-1
IC150 B-1
(Page 20)
TP
(VC)
TP
(FE1)
TP
(TE1)
TP (RFDC)
TP (RFAC)
Ver 1.1 2001.07
