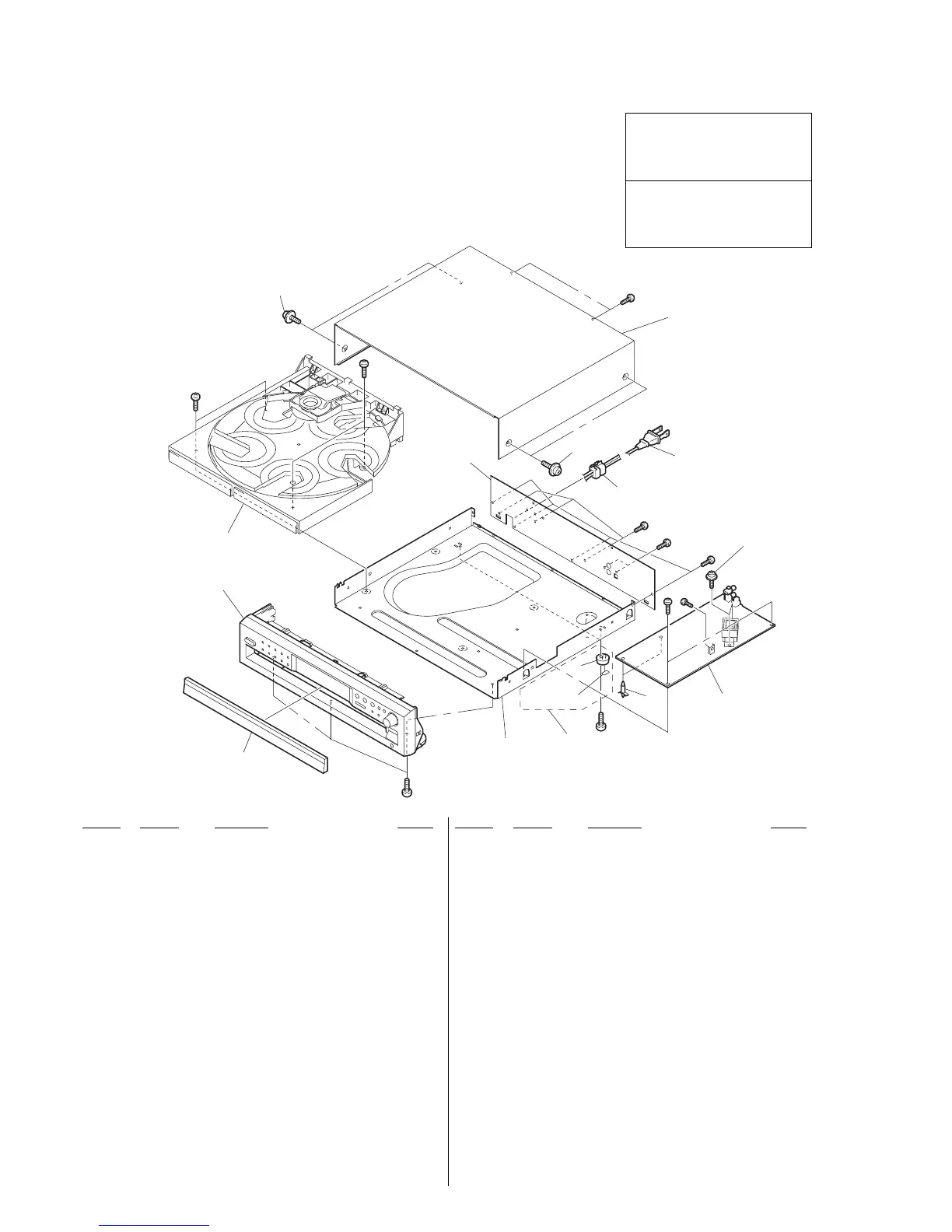

7-1. CASE SECTION
SECTION 7
EXPLODED VIEWS
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AUS : Australian model
CND : Canadian model
EA : Saudi Arabia model
SP : Singapore model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 A-4725-570-A MAIN MOUNTED PC BOARD (CE275)
1 A-4725-571-A MAIN MOUNTED PC BOARD (CE375:US/CND)
1 A-4725-579-A MAIN MOUNTED PC BOARD
(CE375:AUS/AEP/UK/SP)
1 A-4725-581-A MAIN MOUNTED PC BOARD (CE375:E)
2 4-943-687-01 HOLDER, PC BOARD
3 X-4953-448-1 FOOT ASSY
4 4-232-237-01 FOOT(DIA. 30)
5 4-231-683-01 PANEL, LOADING(BLACK)
(CE275,CE375:US/CND/AUS/AEP/UK/SP/E)
5 4-231-683-21 PANEL, LOADING(SILVER)(CE375:AEP)
6 4-210-291-01 SCREW(CASE 3 TP2)(BLACK)
(CE275,CE375:US/CND/AUS/AEP/UK/SP/E)
6 4-210-291-11 SCREW(CASE 3 TP2)(SILVER)(CE375:AEP)
7 4-231-686-11 CASE(409538)(BLACK)
(CE275,CE375:US/CND/AUS/AEP/UK/SP/E)
7 4-231-686-31 CASE(409538)(SILVER)(CE375:AEP)
8 3-703-571-11 BUSHING (S)(4516), CORD (CE375:E)
* 8 3-703-244-00 BUSHING (2104), CORD
(CE275,CE375:US/CND/AUS/AEP/UK/SP)
0 9 1-575-651-21 CORD,POWER (CE375:AEP/UK/SP)
0 9 1-696-845-11 CORD,POWER (CE275:AUS,CE375:AUS)
0 9 1-777-071-41 CORD,POWER (CE375:AEP/UK/SP)
0 9 1-783-528-21 CORD,POWER (TRACKING)(CE375:E)
0 9 1-783-531-31 CORD,POWER (CE275:US/CND,CE375US/CND)
10 4-233-718-01 PANEL, BACK (CE375:US)
10 4-233-718-11 PANEL, BACK (CE375:CND)
10 4-233-718-21 PANEL, BACK (CE375:AEP)
10 4-233-718-31 PANEL, BACK (CE375:UK)
10 4-233-718-41 PANEL, BACK (CE375:AUS)
10 4-233-718-51 PANEL, BACK (CE375:E)
10 4-233-718-61 PANEL, BACK (CE375:SP)
10 4-233-719-01 PANEL, BACK (CE275:US)
10 4-233-719-11 PANEL, BACK (CE275:CND)
10 4-233-719-21 PANEL, BACK (CE275:AUS)
11 3-703-249-01 SCREW, S TIGHT, +PTTWH 3X6
0 T601 1-435-342-11 TRANSFORMER, POWER
(CE275:US/CND,CE375:US/CND)
0 T601 1-435-343-11 TRANSFORMER, POWER
(CE275:AUS,CE375:AUS/AEP/UK/SP)
0 T601 1-435-344-11 TRANSFORMER, POWER (CE375:E)
1
2
3
4
5
6
6
7
8
9
10
11
#1
#1
not supplied
not supplied
CDM59-5BD27
FRONT PANEL SECTION
#1
#1
#1
#1
#1
#1
#1
#2
