CDP-CE275/CE375

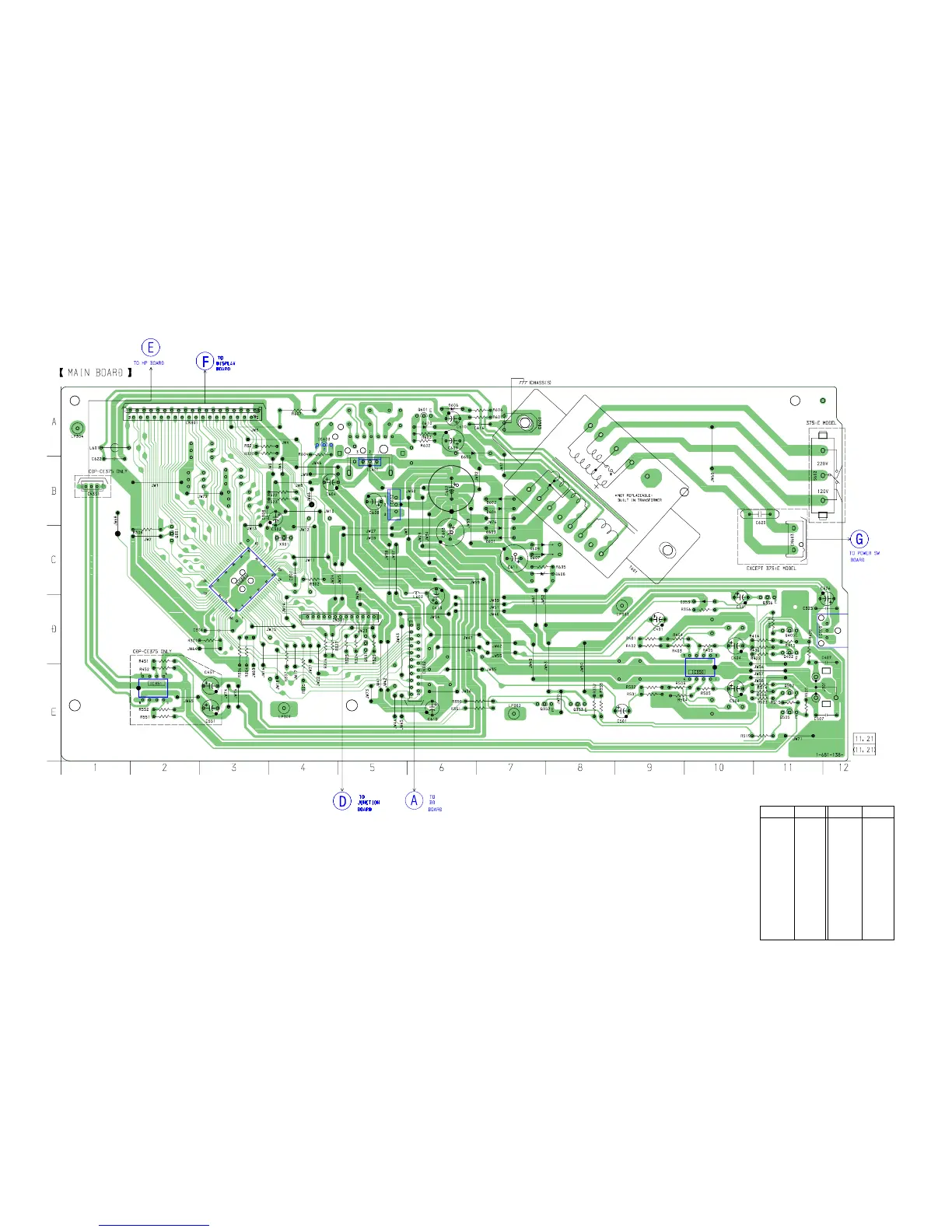

6-6. PRINTED WIRING BOARD – MAIN Board – • See page 15 for Circuit Boards Location.
IC351 E-2
IC601 A-5
IC602 B-5
IC603 A-4
Q301 C-2
Q307 D-5
Q352 E-7
Q353 E-8
Q356 D-11
Q402 D-11
Q405 D-11
Q502 E-11
Q505 E-11
Q601 A-6
Ref. No. LocationRef. No. Location
D353 D-10
D601 C-7
D602 B-7
D603 C-7
D604 B-7
D605 B-6
D606 A-6
D607 C-7
D608 C-8
D609 C-7
D610 A-6
IC301 C-3
IC303 D-11
IC350 E-10
• Semiconductor Location
(Page 22)
(Page 22)
(Page 18)
(Page 18)
(Page 22)
TP2 (AFDJ)
TP1 (ADJ)
Ver 1.1 2001.07
