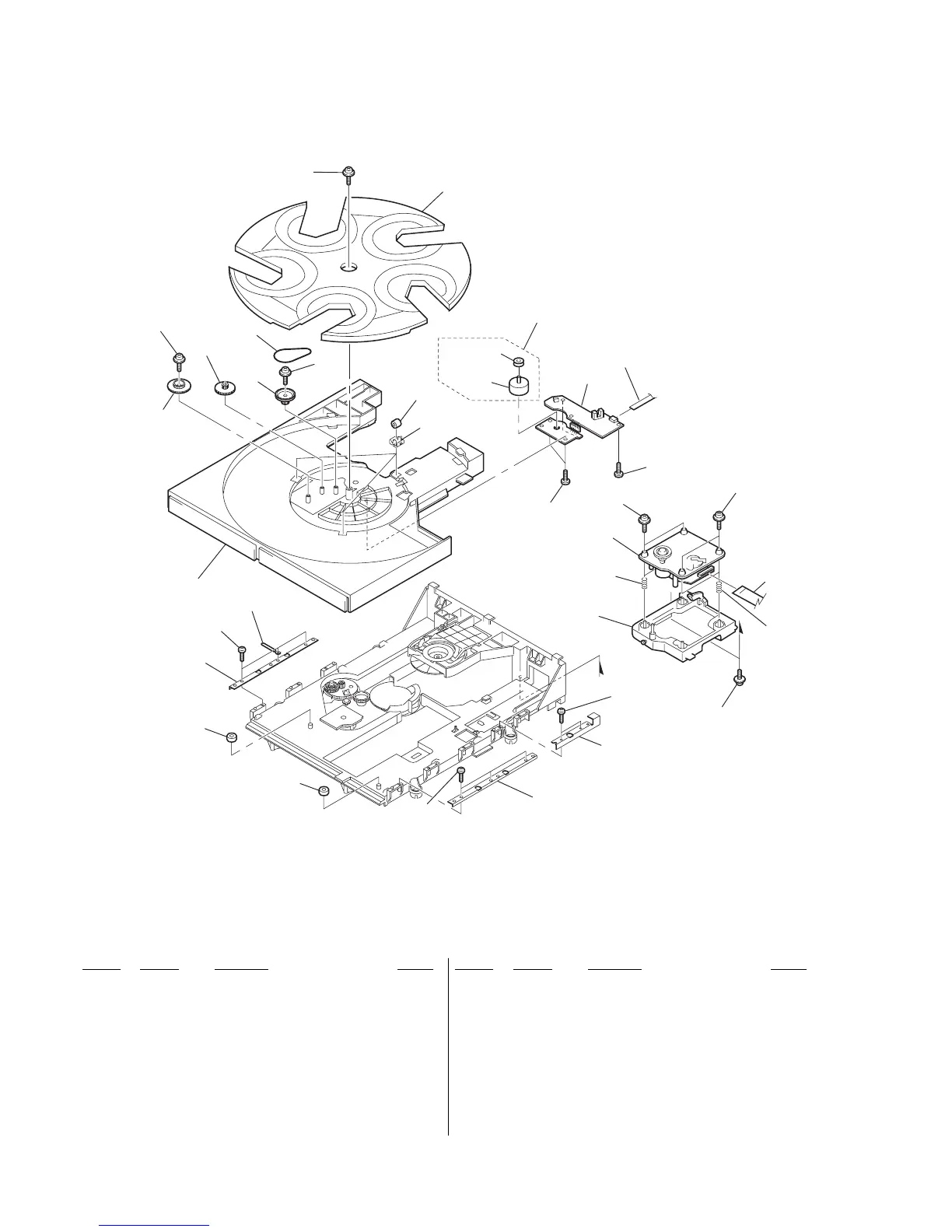

7-3. CD MECHANISM SECTION (1)
(CDM59-5BD27)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
BU-5BD27
not supplied
not supplied
M11
not supplied
A
A
101
102
102
103
103
101
102
104
105
106
106
106
107
108
109
110
111
112
102
102
114
113
115
115
116
117
117
106
118
101 4-224-619-01 BRACKET (GUIDE)
102 4-218-253-31 SCREW (M2.6), +BTTP
* 103 4-951-619-01 CUSHION (A)
104 4-224-602-01 TABLE
105 4-224-617-01 GEAR (RM-E)
106 4-218-252-51 SCREW (+PTPWH M2.6), FLOATING
107 4-224-616-01 GEAR (RM-M)
108 4-224-615-03 GEAR (RM-B)
109 4-225-328-01 BELT (ROTARY)
110 4-224-603-01 TRAY
111 1-791-930-11 WIRE (FLAT TYPE)(6 CORE)
112 1-676-245-11 SENSOR BOARD
* 113 X-4924-457-1 ROLLER ASSY
114 A-4672-867-A MOTOR ASSY, ROTARY
115 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
116 1-757-648-11 WIRE (FLAT TYPE)(21 CORE)
117 4-959-996-01 SPRING (932), COMPRESSION
118 X-4952-312-1 HOLDER (BU) ASSY
