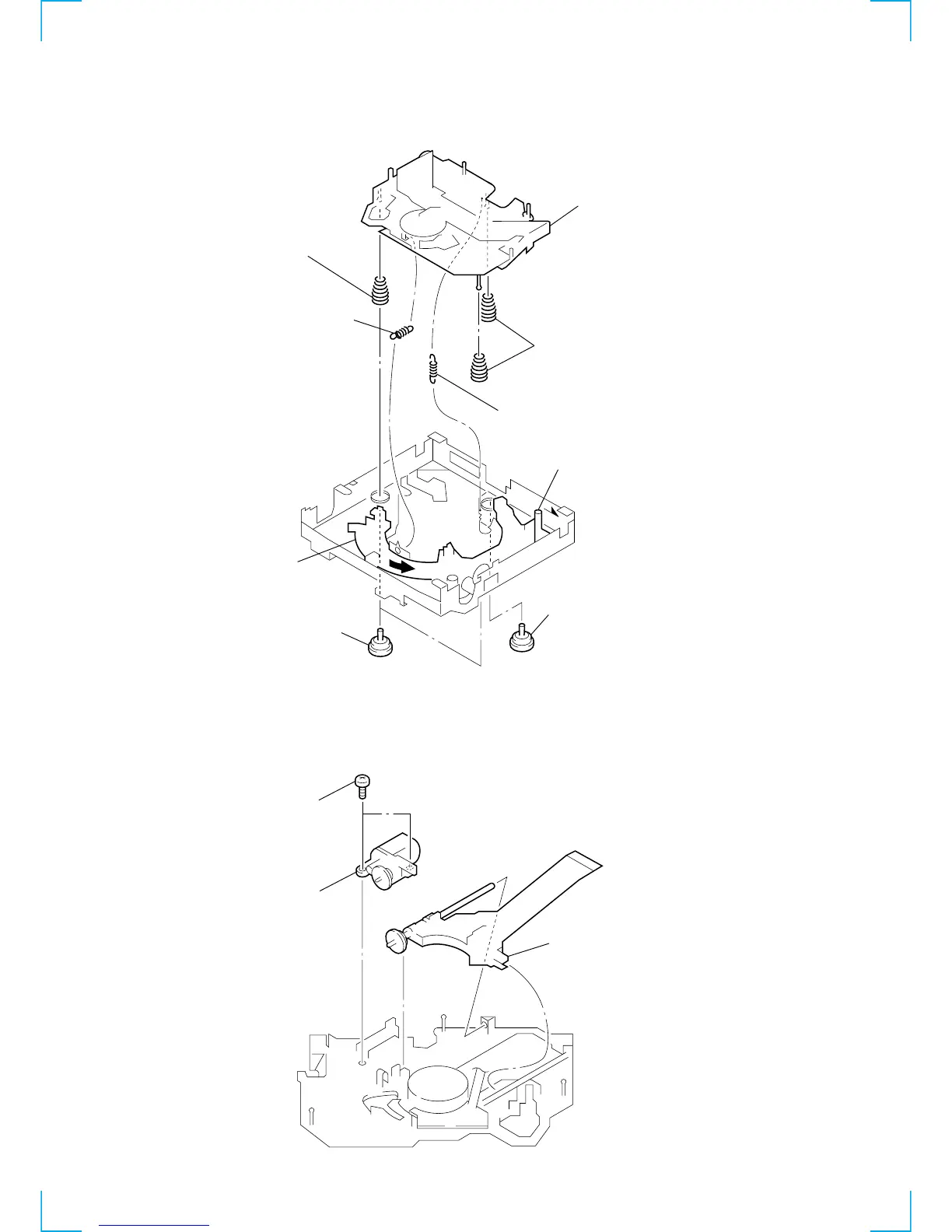

2-9. CHASSIS (OP) ASSY
2-10. OPTICAL PICK-UP BLOCK
1 tension spring (KF1)
8 compression spring (FL)
7 chassis (OP) assy
9 compression spring (FL)
2 tension spring (KR1)
5 Fit lever (D) in the
direction of the arrow.
3 damper (T)
4 damper (T)
6 Turn loading ring in the
direction of the arrow.
1 P 2x3
2 sled motor assy
(M902)
3 optical pick-up block
