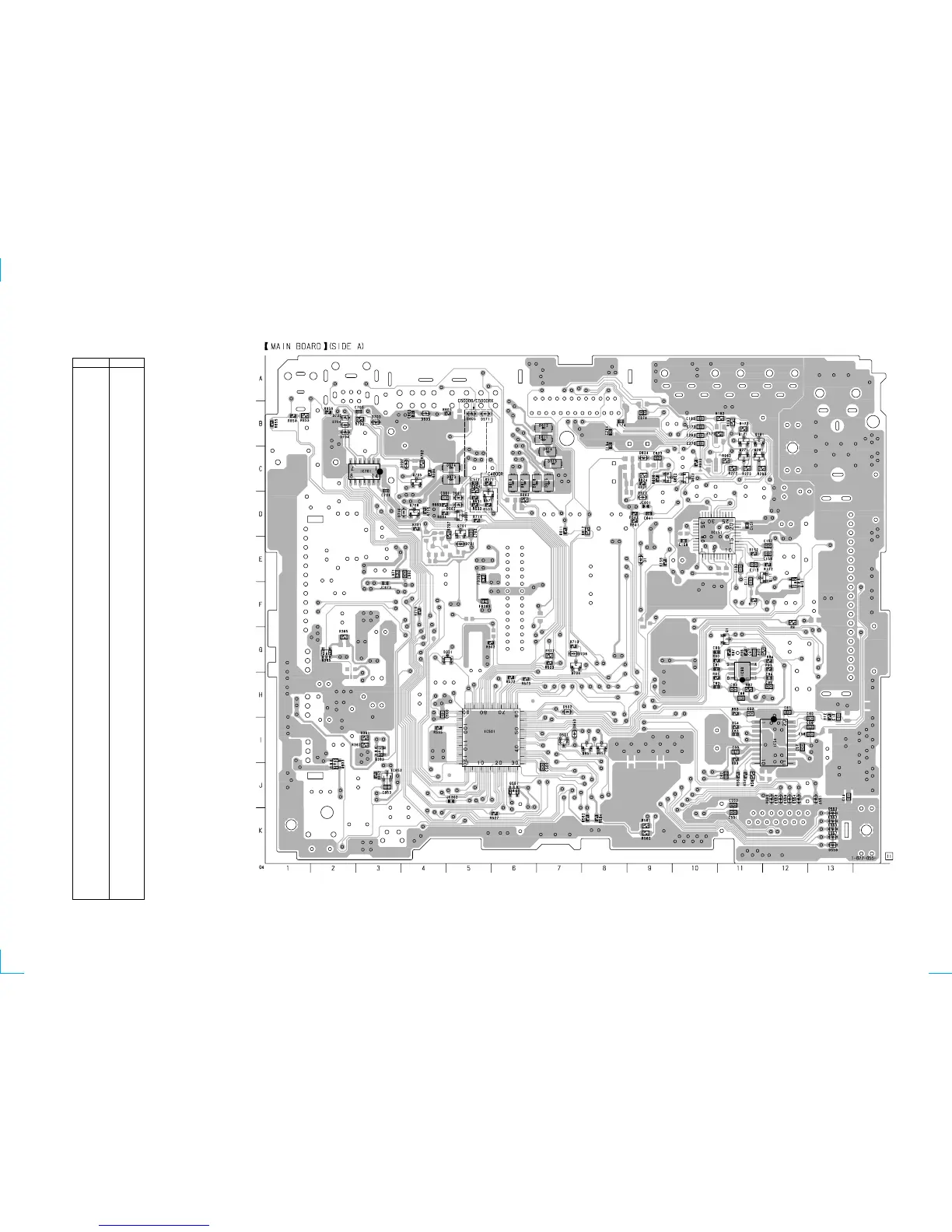

3-9. PRINTED WIRING BOARD — MAIN SECTION —
CDX-C4900R/C5000R/C5000RX
Ref. No. Location
D1 E-9
D301 G-4
D501 I-7
D502 H-7
D551 J-13
D552 K-13
D553 K-13
D554 J-12
D555 K-13
D556 J-12
D557 K-13
D558 J-12
D559 K-13
D560 J-12
D571 B-5
D603 B-4
D605 B-5
D611 B-7
D612 B-7
D613 C-7
D614 B-7
D615 C-7
D616 C-7
D617 C-6
D618 C-6
D622 D-9
D624 C-9
D653 I-7
D661 D-5
D662 D-5
D673 C-5
D674 C-5
D701 E-5
D702 C-4
D703 B-3
D704 B-2
D705 B-2
D706 B-2
D708 D-7
D710 D-4
IC51 I-12
IC90 H-11
IC151 D-11
IC501 I-6
IC652 J-3
IC701 C-3
Q1 G-11
Q111 E-12
Q131 F-12
Q171 B-11
Q181 B-12
Q271 C-11
Q281 C-12
Q363 I-3
Q365 G-2
Q551 J-6
Q571 D-6
Q621 C-10
Q622 C-9
Q633 J-2
Q651 I-8
Q652 I-8
Q661 D-5
Q701 E-5
Q704 G-7
Q705 C-4
Q706 D-4
• Semiconductor
Location (Side A)
