Sony CDX-C4900R - Schematic Diagram -Main Section (1;3)

33 33

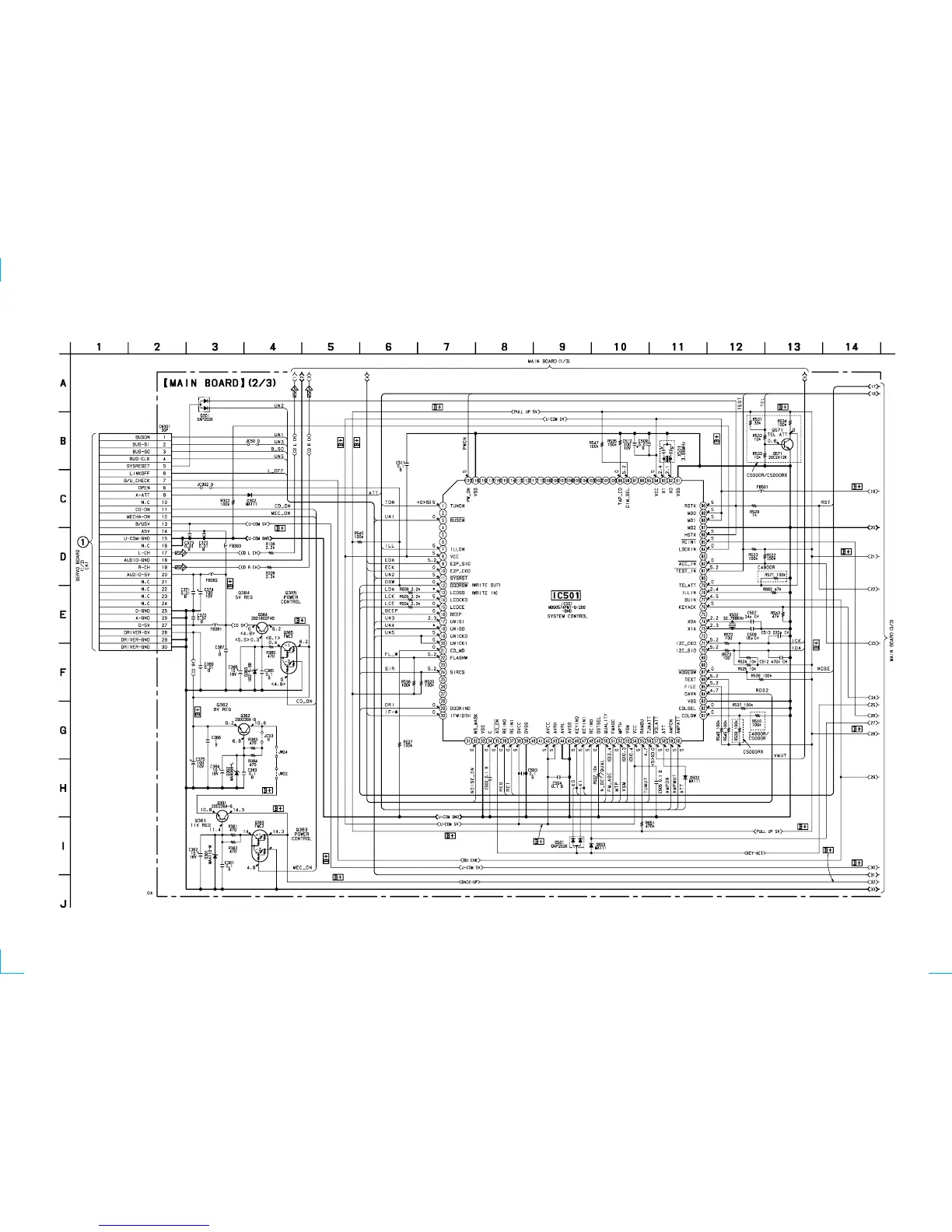

3-11. SCHEMATIC DIAGRAM — MAIN SECTION (2/3) —
Note:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
( ) : MW
< > : CD PLAY
CDX-C4900R/C5000R/C5000RX
(Page 34)
(Page 32)
(Page 28)
