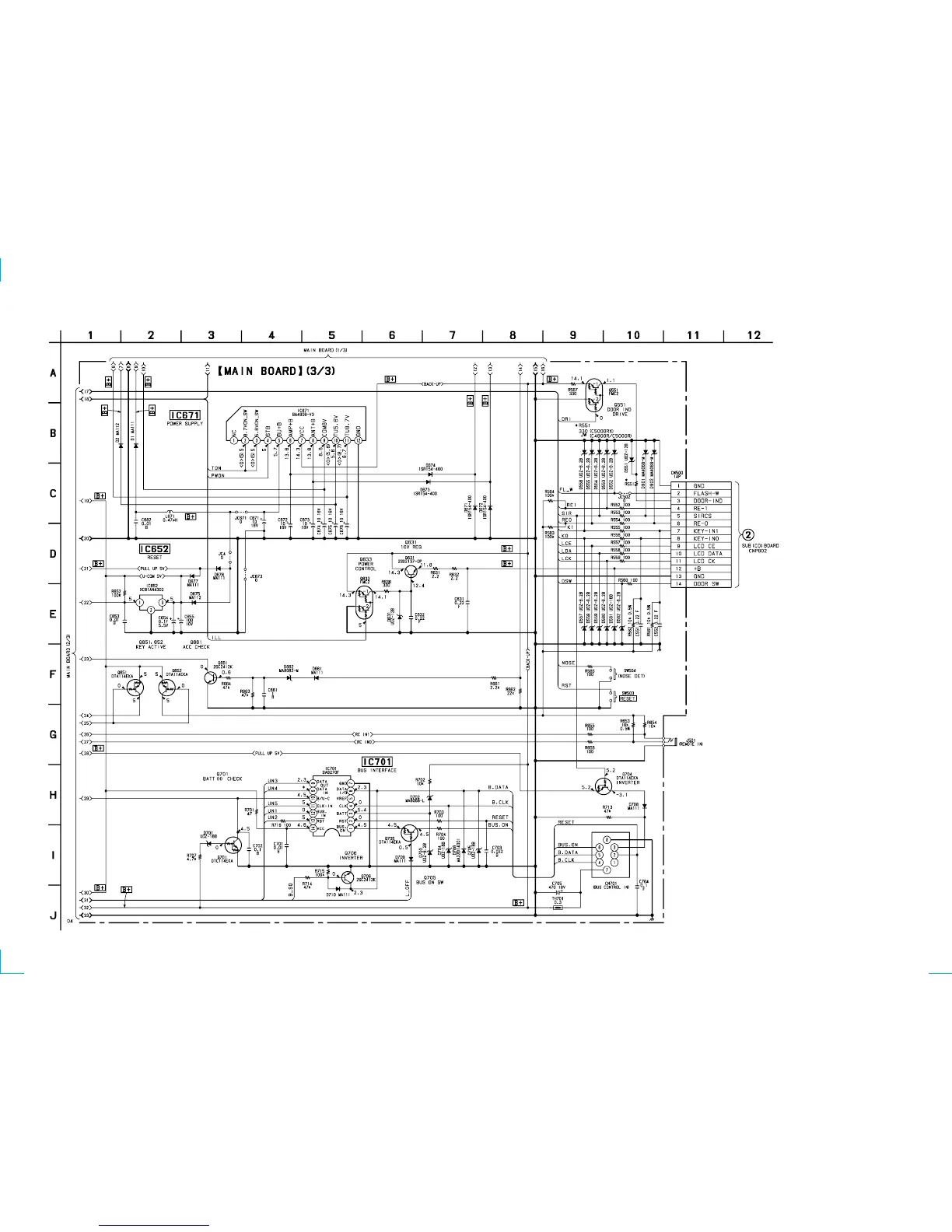

3-12. SCHEMATIC DIAGRAM — MAIN SECTION (3/3) — • Refer to page 39 for IC Block Diagrams.
Note:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
( ) : MW
< > : CD PLAY
CDX-C4900R/C5000R/C5000RX
(Page 35)
(Page 32)
(Page 33)
