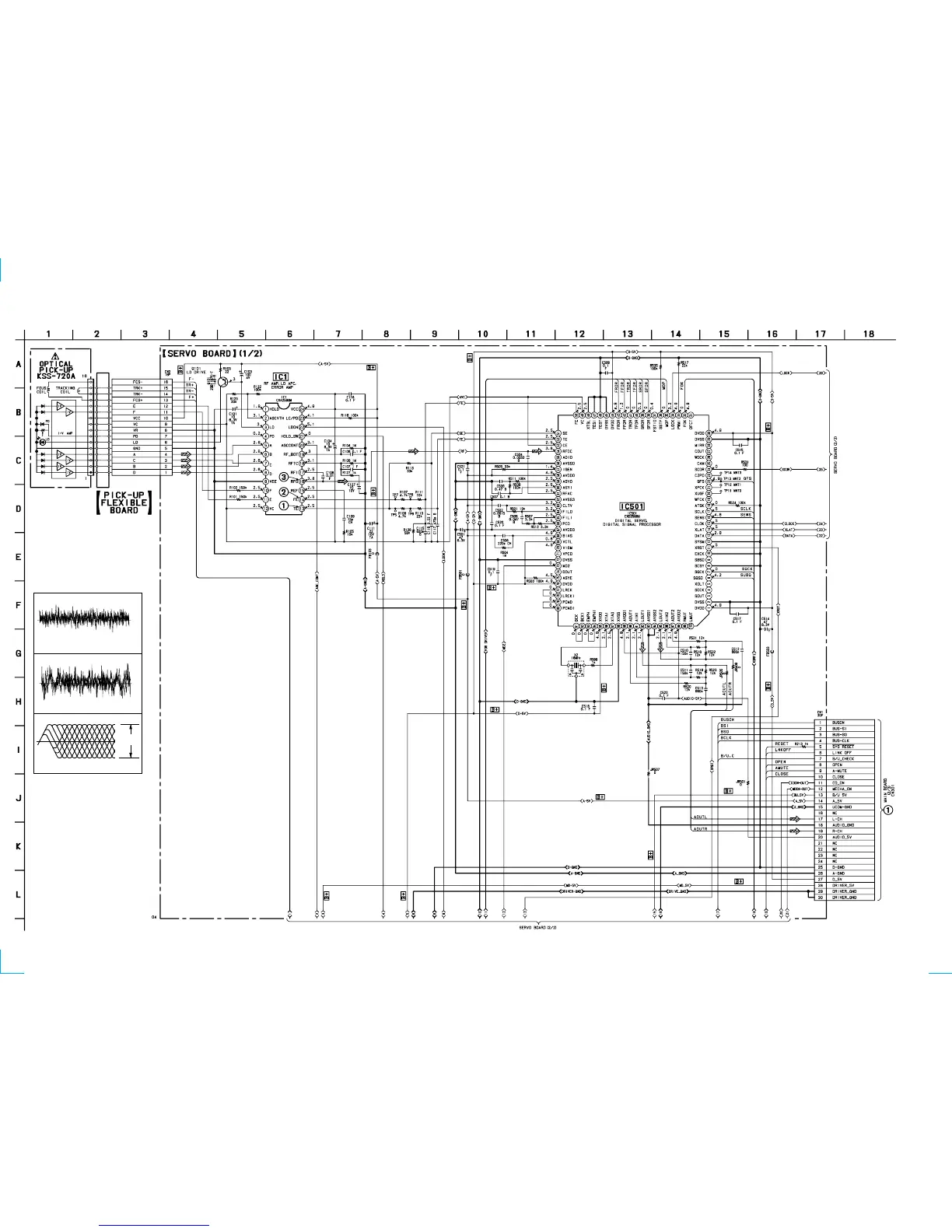

3-7. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (1/2) — • Refer to page 39 for IC Block Diagrams.
(Page 33)
CDX-C4900R/C5000R/C5000RX
Note:
• Voltage and waveforms are dc
with respect to ground
under no-signal conditions.
no mark : CD PLAY
(Page 29)
(Page 29)
• Waveforms (MODE:PLAY)
1
2
3
Approx. 620mVp-p
IC1
qf
(FE)
0V
IC1
qh
(RFO)
1.2Vp-p
Approx. 200mVp-p
IC1
qd
(TE)
0V
