CDX-C4900R/C5000R/C5000RX

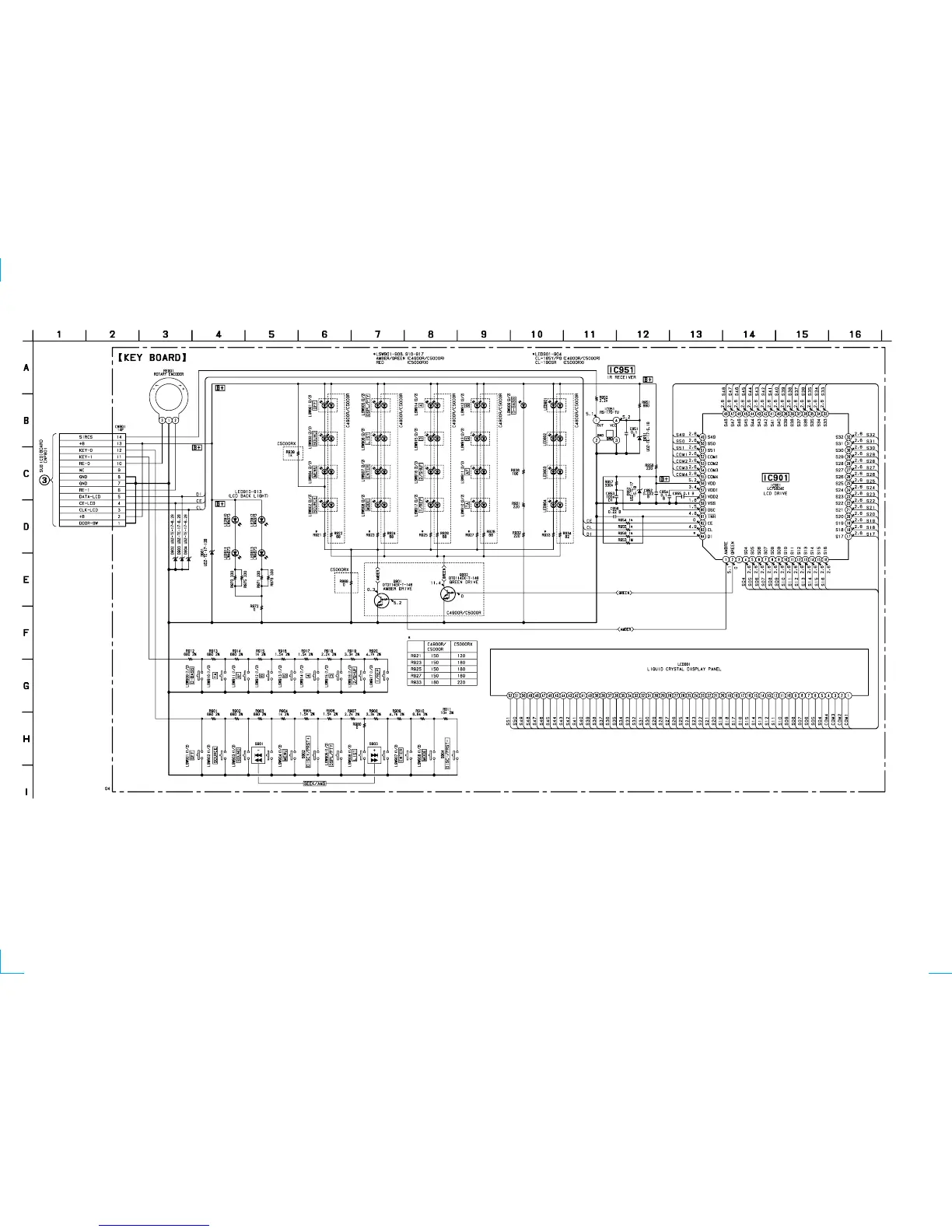

• SCHEMATIC DIAGRAM — KEY SECTION —
Note:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
∗
: Impossible to measure
