Sony CDX-C4900R - CD Mechanism Section (1)

44
102
104
103
109
101
107
105
106
112
111
110
108
#8
#8
#7
#7
#7
#8
#9
M903
C
C

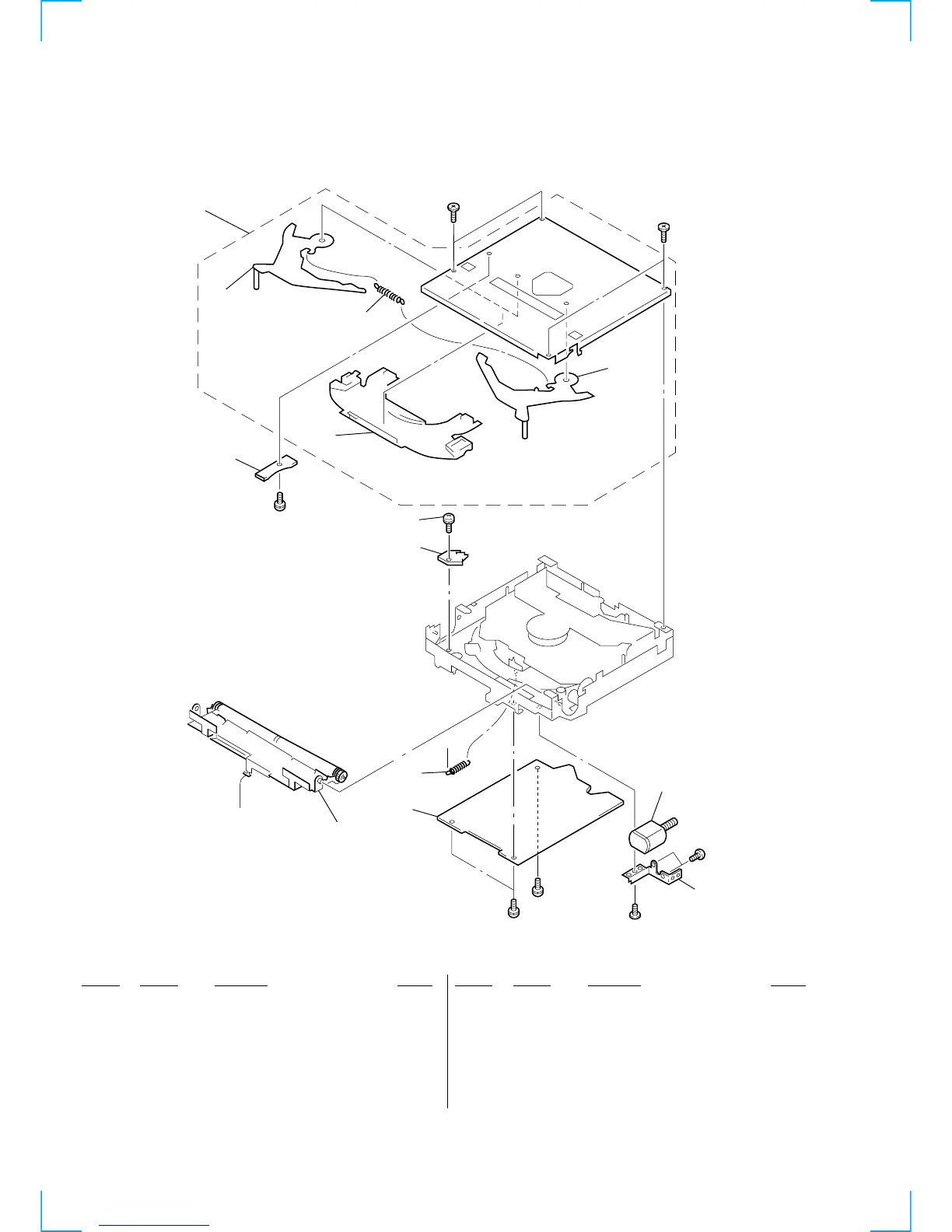

4-3. CD MECHANISM SECTION (1)
(MG-383Z-121//Q)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 101 1-659-836-11 DISC IN SW BOARD
* 102 A-3315-034-A CHASSIS (T) ASSY
103 3-931-909-01 SPRING (LR), TENSION
104 X-3371-501-1 LEVER (L) ASSY
105 3-338-737-01 SCREW (2X3), +PS
* 106 1-659-837-11 LOAD SW BOARD
107 X-3371-502-1 LEVER (R) ASSY
* 108 3-039-629-01 BRACKET (MOTOR)
109 3-013-388-02 GUIDE (DISC)
110 A-3315-040-A ROLLER ASSY, ARM
* 111 A-3326-231-A SERVO BOARD, COMPLETE
112 3-047-477-01 SPRING (RA2), TENSION
M903 A-3315-039-A MOTOR SUB ASSY, LD (LOADING)
