Sony CDX-CA540X - Shaft Roller Assy, Load Sw Board; Floating Block Assy

10
CDX-CA540X/CA590X
1 tension spring (KF1)
7 compression spring (FL)
6 floating block assy
8 compression spring (FL)
4 Fit lever (D) in the
direction of the arrow.
2 damper (T)
3 damper (T)
5 Turn loading ring in the
direction of the arrow.

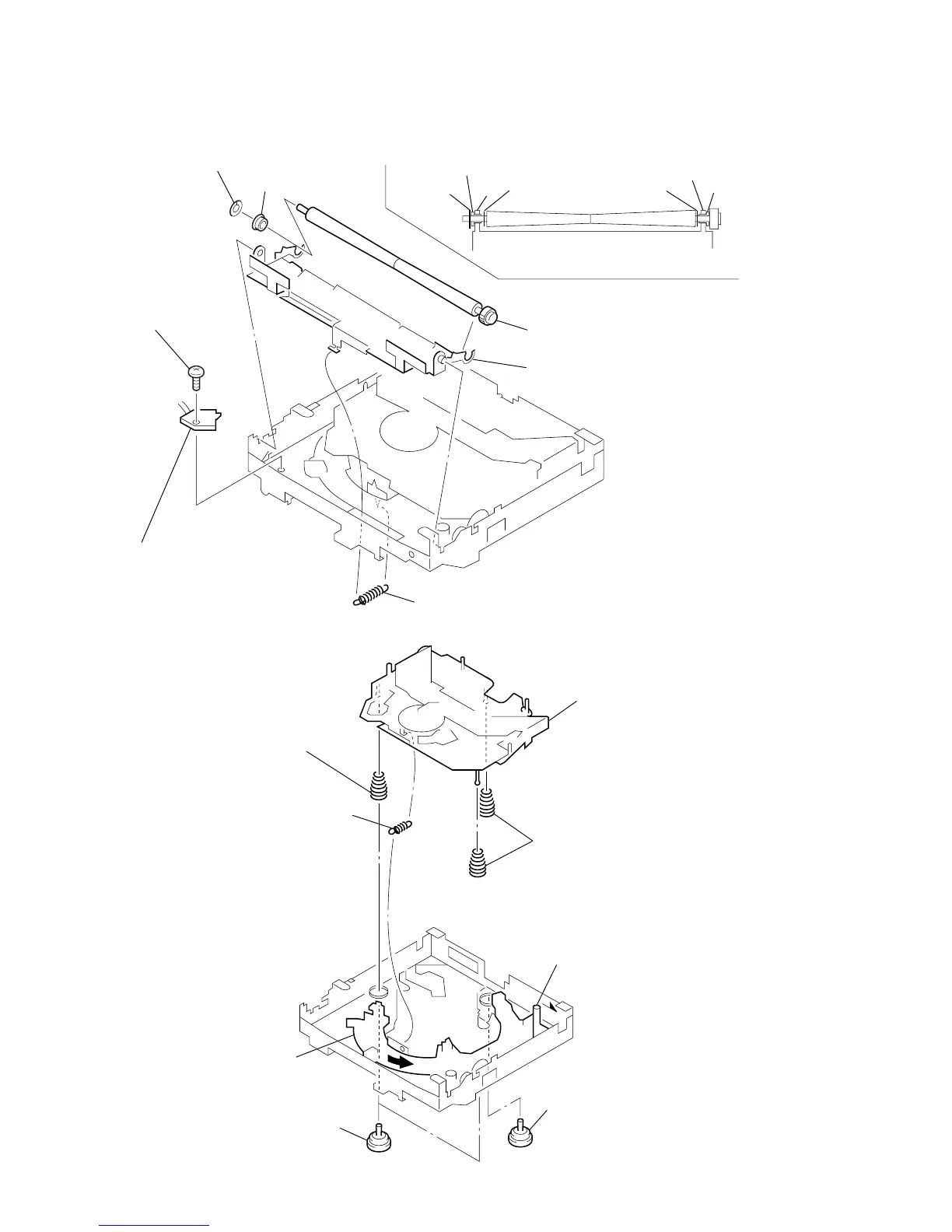

2-9. FLOATING BLOCK ASSY
2-8. SHAFT ROLLER ASSY, LOAD SW BOARD
• When installing, take note of the positions
arm (roller) and washers. (Fig. 1)
Fig. 1
1 tension spring (RA)
2 arm (roller)
3 retaining ring (RA)
4 shaft retainer (roller)
5 shaft roller assy
6 special screw
7 LOAD SW board
retaining ring
(RA)
arm
arm
washer
washer
shaft retainer
(roller)
shaft retainer (roller)
