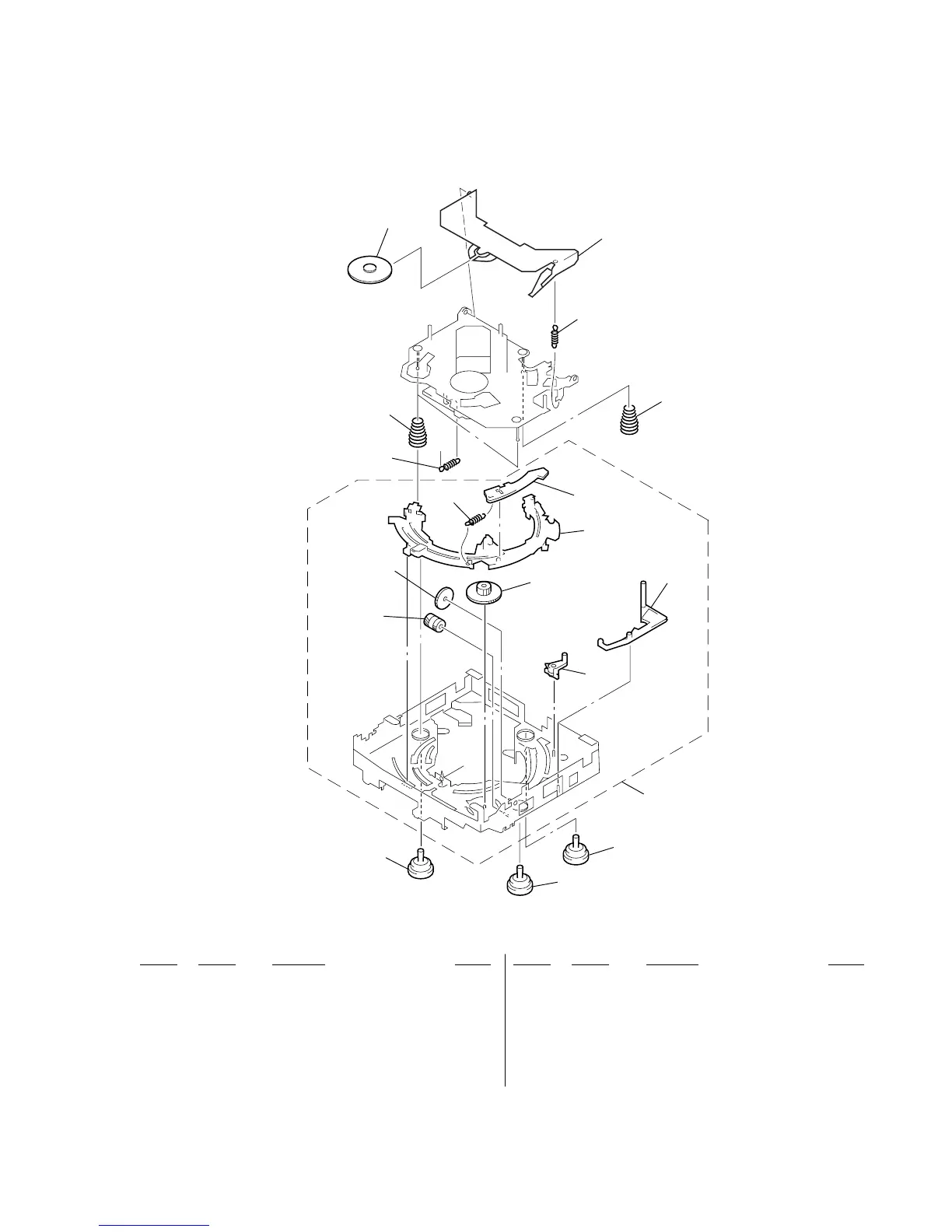

4-4. CD MECHANISM SECTION (2)
(MG-393XC-121//K)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
154
151
156
157
158
160
162
161
159
152
152
152
153
163
157
D
D
164
155
not supplied
151 3-040-025-02 ARM, CHUCKING
152 3-040-031-01 DAMPER (T)
153 3-040-056-01 LEVER (D)
154 3-040-024-01 RETAINER (DISC)
155 3-040-054-01 WHEEL (LW), WORM
156 3-040-026-01 SPRING (CH), TENSION
157 3-040-032-01 SPRING (FL), COMPRESSION
158 3-040-033-01 SPRING (KF1), TENSION
159 A-3307-422-A CHASSIS (M) COMPLETE ASSY
160 3-040-059-01 SPRING (TR), TENSION
161 3-040-057-01 LEVER (LOCK)
162 3-040-058-01 GEAR (MDL)
163 3-040-052-01 WHEEL (U), WORM
164 3-040-051-02 LEVER (TR)
