CDX-CA540X/CA590X
SECTION 2
DISASSEMBLY

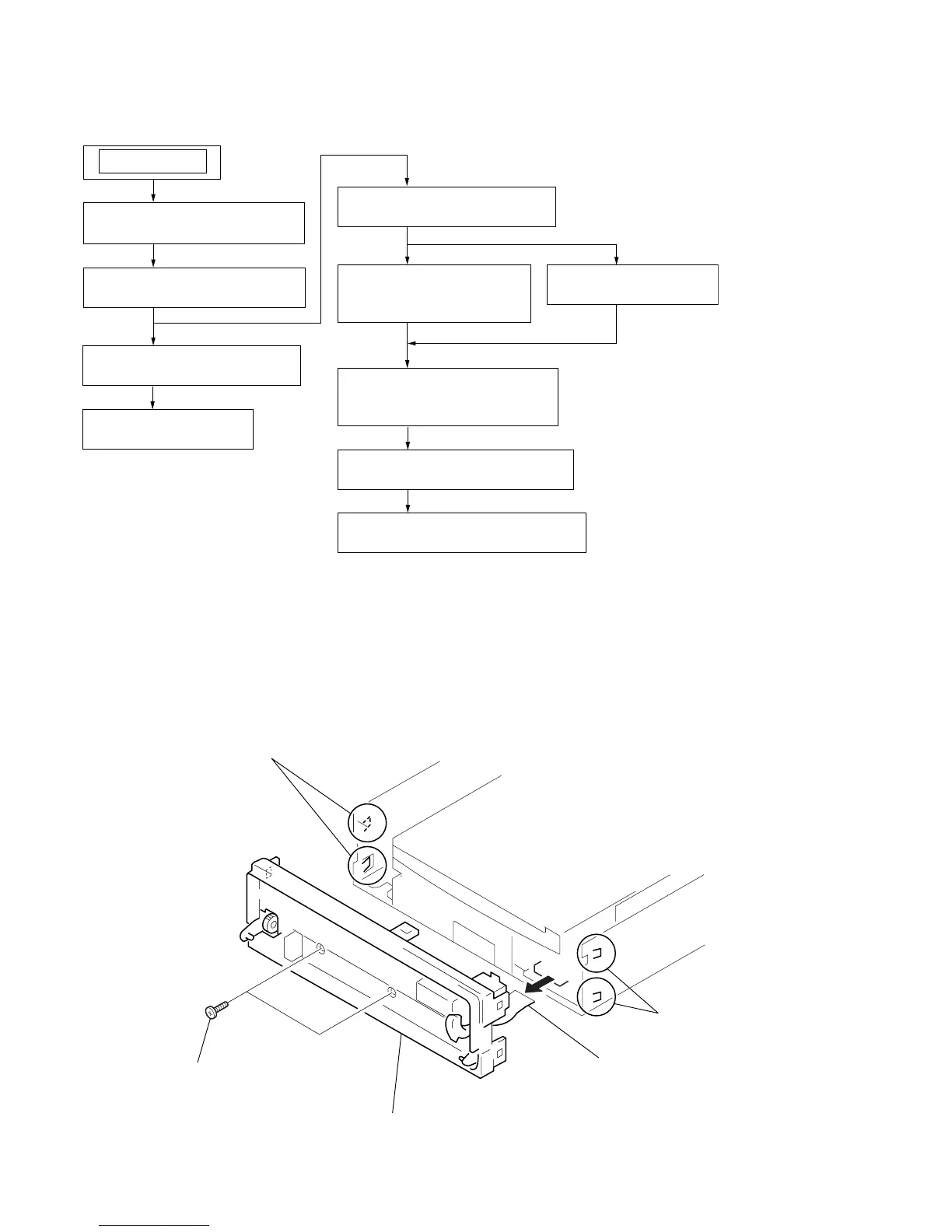

Note : This set can be disassemble according to the following sequence.
Note : Follow the disassembly procedure in the numerical order given.
2-1. SUB PANEL ASSY (CD)
2-1. SUB PANEL ASSY (CD)
(Page 6)
2-2. CD MECHANISM BLOCK
(Page 7)
2-5. CHASSIS (T) SUB ASSY
(Page 8)
2-6. LEVER SECTION
IN SELF SW BOARD
(Page 9)
2-8. SHAFT ROLLER ASSY
LOAD SW BOARD
(Page 10)
2-9. FLOATING BLOCK ASSY
(Page 10)
2-10. OPTICAL PICK-UP BLOCK
(Page 11)
SET
2-7. SERVO BOARD
(Page 9)
2-3. MAIN BOARD
(Page 7)
2-4. HEAT SINK
(Page 8)
4 CNP803
5 sub panel assy (CD)
3 claws
2 claws
1 PTT 2.6x6
