Sony CDX-CA540X - CD Mechanism Section (3)

34
CDX-CA540X/CA590X
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

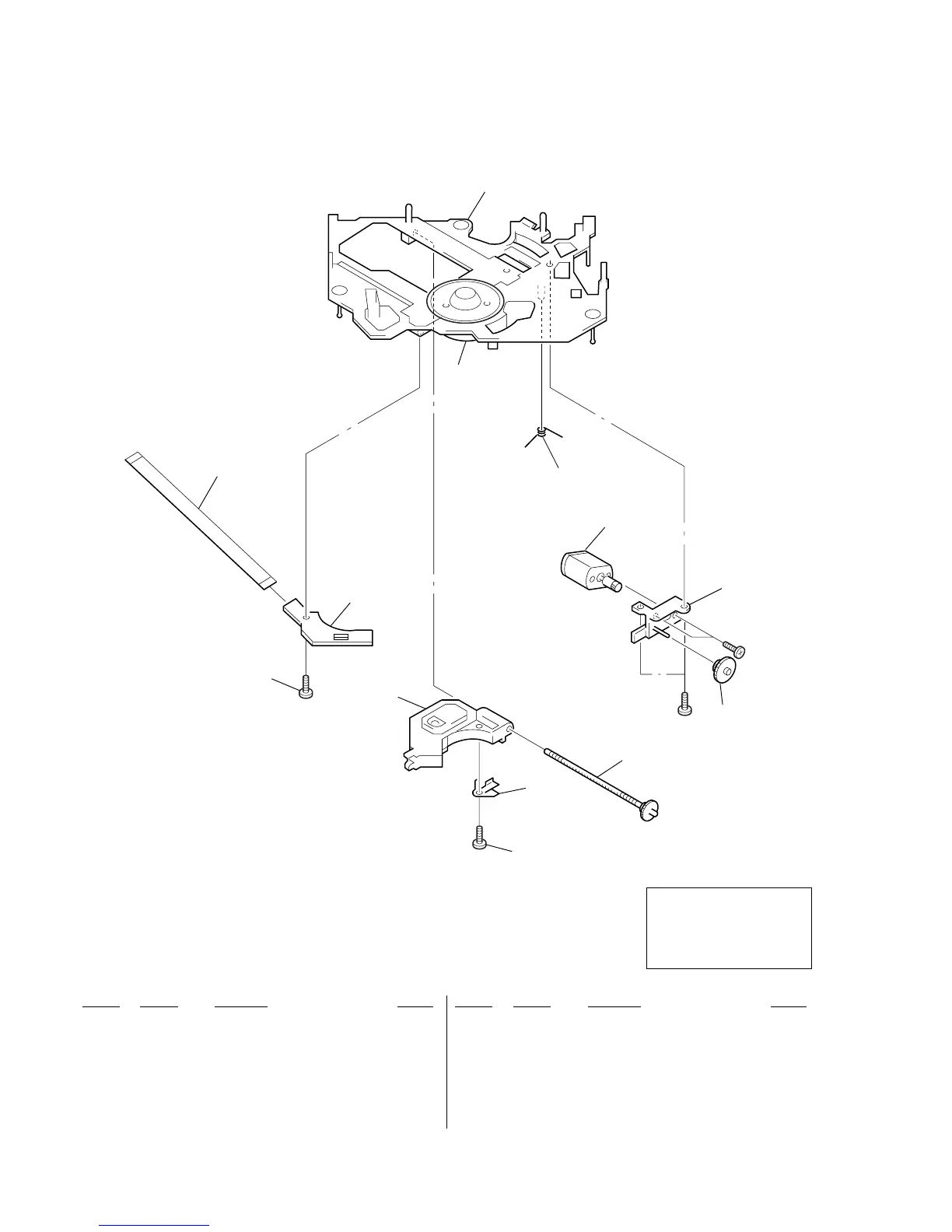

4-5. CD MECHANISM SECTION (3)
(MG-393XC-121//K)
M902
M901
#8
#9
206
209
209
210
205
208
204
203
202
207
201
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
201 X-3378-480-1 CHASSIS (OP) ASSY (including M901)
202 3-040-029-01 SPRING (SL), TORSION
203 3-040-045-01 BASE (DRIVING)
204 3-040-194-01 GEAR (MIDWAY)
205 A-3301-983-A SHAFT (FEED) ASSY
206 3-040-030-01 SPRING (FEED), PLATE
207 1-823-641-11 CABLE, FLEXIBLE FLAT (6 CORE)
208 1-683-282-11 SL SW BOARD
209 3-909-607-01 SCREW
0 210 8-820-165-06 OPTICAL PICK-UP KSS-721A/C-RP
M902 A-3301-985-A MOTOR ASSY, SLED (SLED)
#8 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#9 7-627-850-28 SCREW, PRECISION +P 1.4X3
