CDX-CA540X/CA590X
SECTION 4
EXPLODED VIEWS
Ref. No. Part No. Description Remark

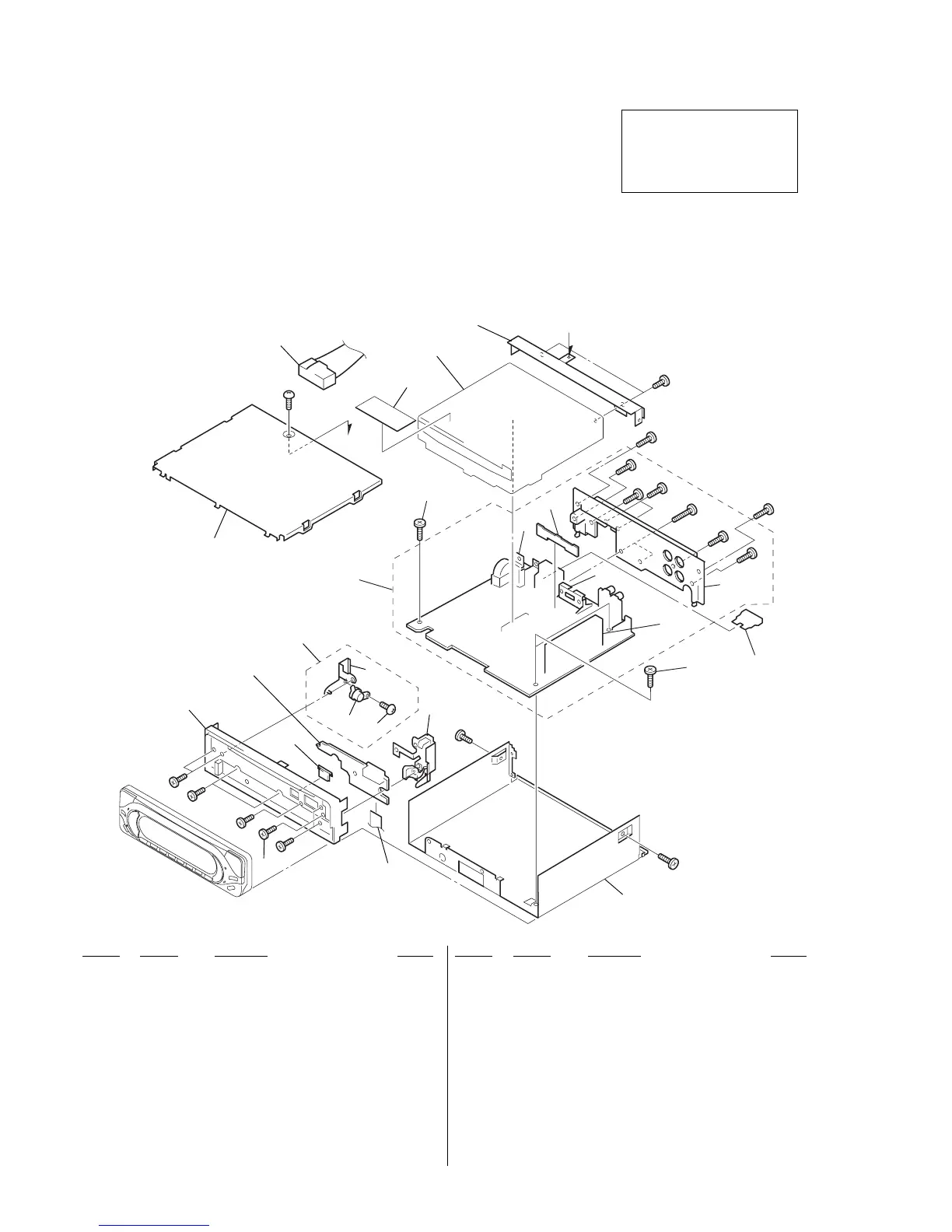

4-1. CHASSIS SECTION
Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
RR
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
1
2
4
6
5
7
8
9
10
3
16
#1
MG-393XC-121//K
#3
#3
#3
#1
#1
#1
#1
12
17
12
11
13
14
15
TU601
#2
#2
#2
#2
#2
#2
not
supplied
#4
#2
F901
A
A
not supplied
(RELAY board)
not supplied
not supplied
1 X-3382-626-1 PANEL ASSY (CD), SUB
2 3-246-030-01 BUTTON (EJECT)
3 1-792-173-11 CABLE, FLAT (FFC) 12P
4 X-3376-686-4 GEAR ASSY
* 5 X-3376-689-2 BRACKET (GEAR) ASSY
6 3-030-909-03 DAMPER, OIL
7 3-713-786-51 SCREW +P 2X3
8 X-3376-687-2 LOCK ASSY
9 1-776-206-21 CORD (WITH CONNECTOR) (POWER)
10 3-246-007-01 BRACKET (CD)
11 A-3274-626-A MAIN BOARD, COMPLETE
12 3-922-535-11 SCREW (+BTT)
13 3-041-261-11 BRACKET (TR)
14 A-3274-646-A SPEAKER BOARD, COMPLETE
* 15 3-019-565-01 BRACKET (IC)
16 3-035-250-02 SCREW (LOCK)
17 3-223-913-11 LABEL (OP CAUTION)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU601 A-3220-835-A TUNER UNIT (TUX-010)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
#3 7-621-772-20 SCREW +B 2X5
#4 7-685-795-09 SCREW +PTT 2.6X12 (S)
