Sony CDX-CA710X - Exploded Views (Main Board); Main Board Section Exploded View

32
CDX-CA710X/CA790X

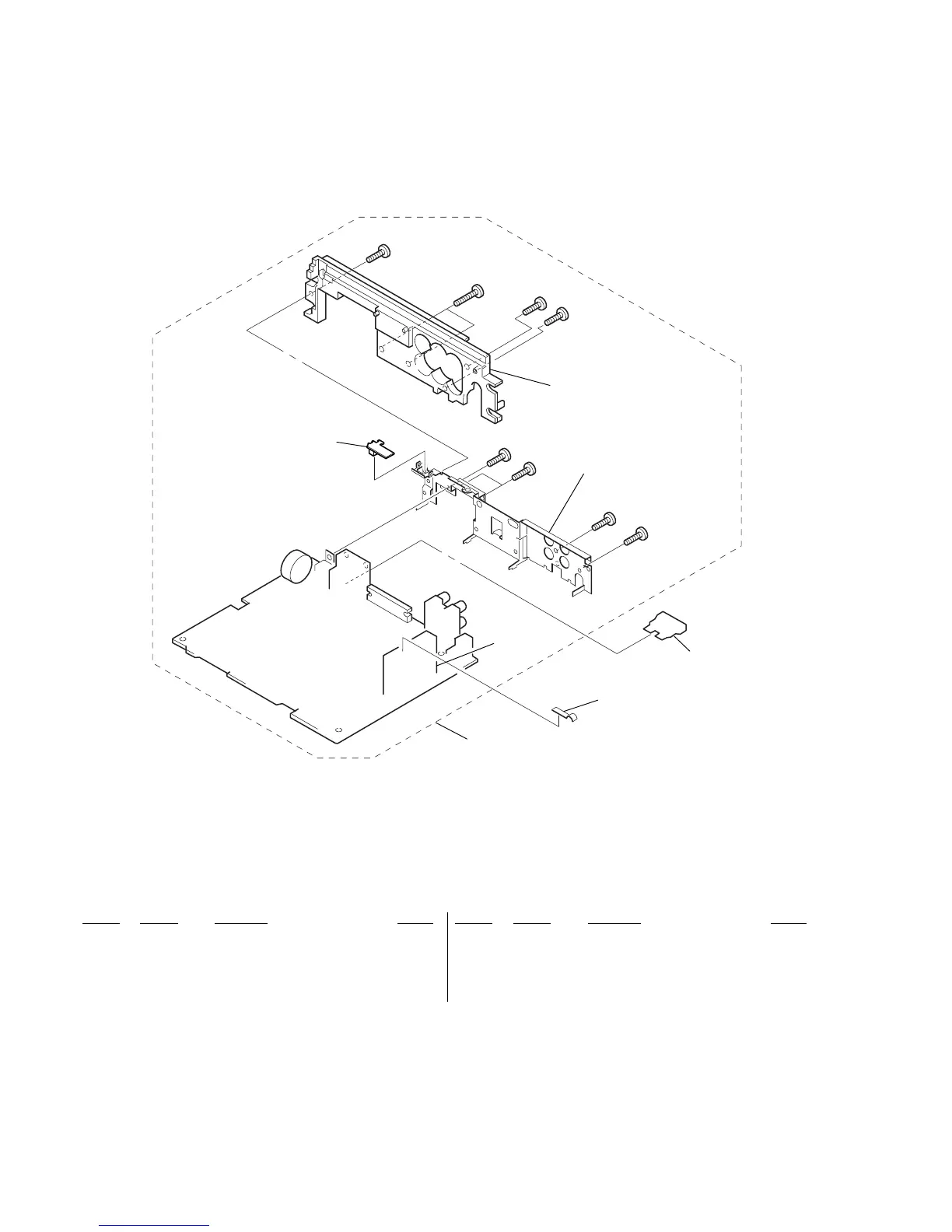

4-2. MAIN BOARD SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 A-3274-595-A MAIN BOARD, COMPLETE (CA710X)
51 A-3274-596-A MAIN BOARD, COMPLETE (CA790X)
52 1-686-702-11 MJ BOARD
53 3-246-481-01 PLATE (TU), GROUND
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUX501 A-3315-879-A TUNER UNIT (TUX-030)
#3 7-685-793-09 SCREW +PTT 2.6X8 (S)
#4 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
#5 7-685-795-09 SCREW +PTT 2.6X12 (S)
53
52
F901
TUX501
51
#4
not supplied
not supplied
#3
#3
#3
#5
#3
#3
#3
