Sony CDX-CA710X - Exploded Views (CD Mechanism 3); CD Mechanism Section (3) Exploded View

36
CDX-CA710X/CA790X
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

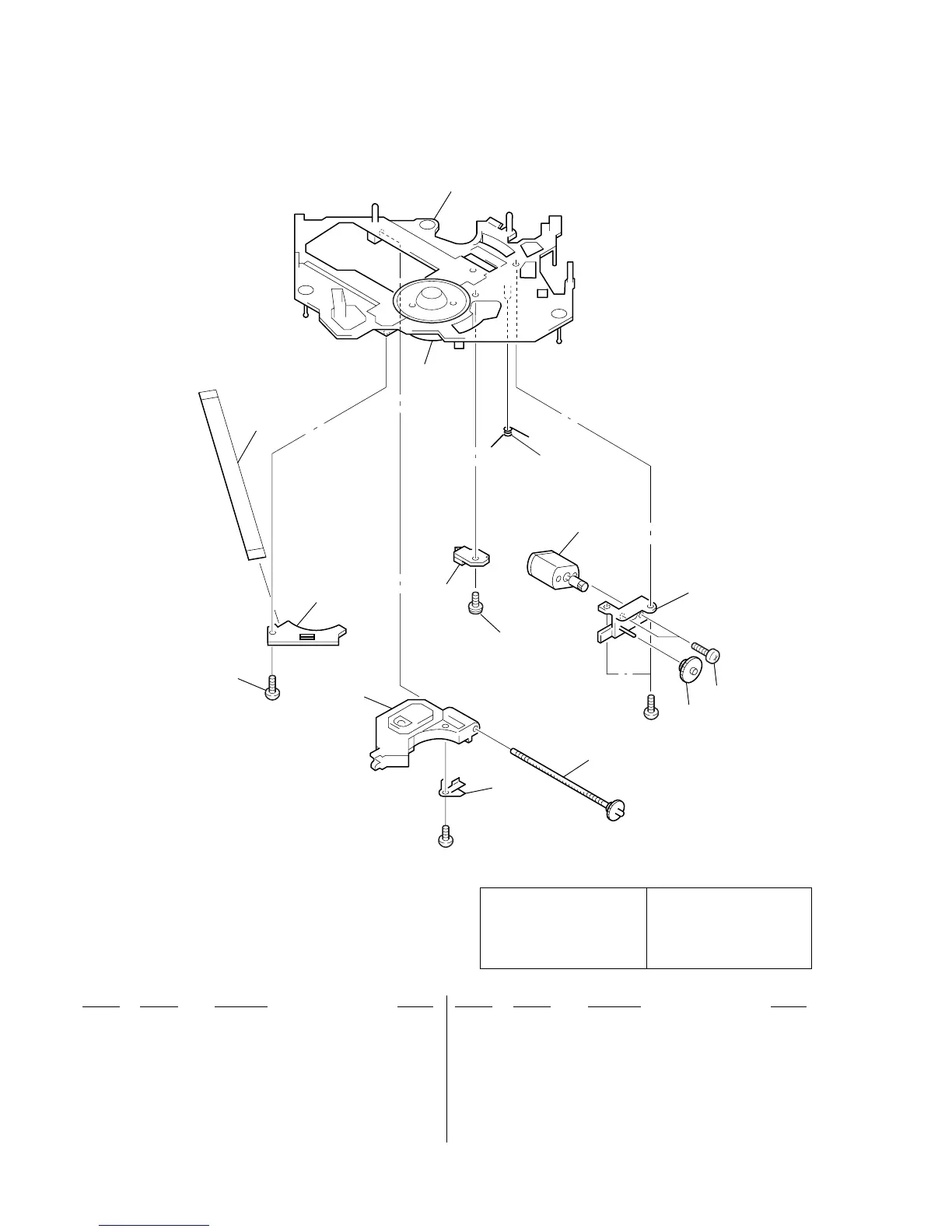

4-6. CD MECHANISM SECTION (3)
(MG-393XA-121//Q)
251 X-3378-598-3 CHASSIS (OP) ASSY (including M901)
252 3-043-494-01 SPRING (SL), TORSION
253 3-040-170-01 BASE (DRIVING)
254 3-040-419-01 GEAR (MIDWAY)
255 A-3291-669-A SHAFT (FEED) ASSY
256 3-025-743-01 SPRING (FEED), LEAF
257 1-683-665-11 MOTOR FLEXIBLE BOARD
258 1-659-834-21 SUB (CD) BOARD
259 3-909-607-01 SCREW
0 260 8-820-103-11 OPTICAL PICK-UP KSS-720A/K1NP
261 1-659-835-21 LIMIT BOARD
262 3-338-737-01 SCREW (2X3), +PS
263 3-241-673-01 SCREW (SM), SPECIAL
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
#7 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
M902
M901
#7
#7
256
262
259
260
255
258
261
254
263
253
252
257
251
