Sony CDX-CA710X - Disassembly Procedures; Sub Panel Assembly Disassembly

7
CDX-CA710X/CA790X
SECTION 2
DISASSEMBLY

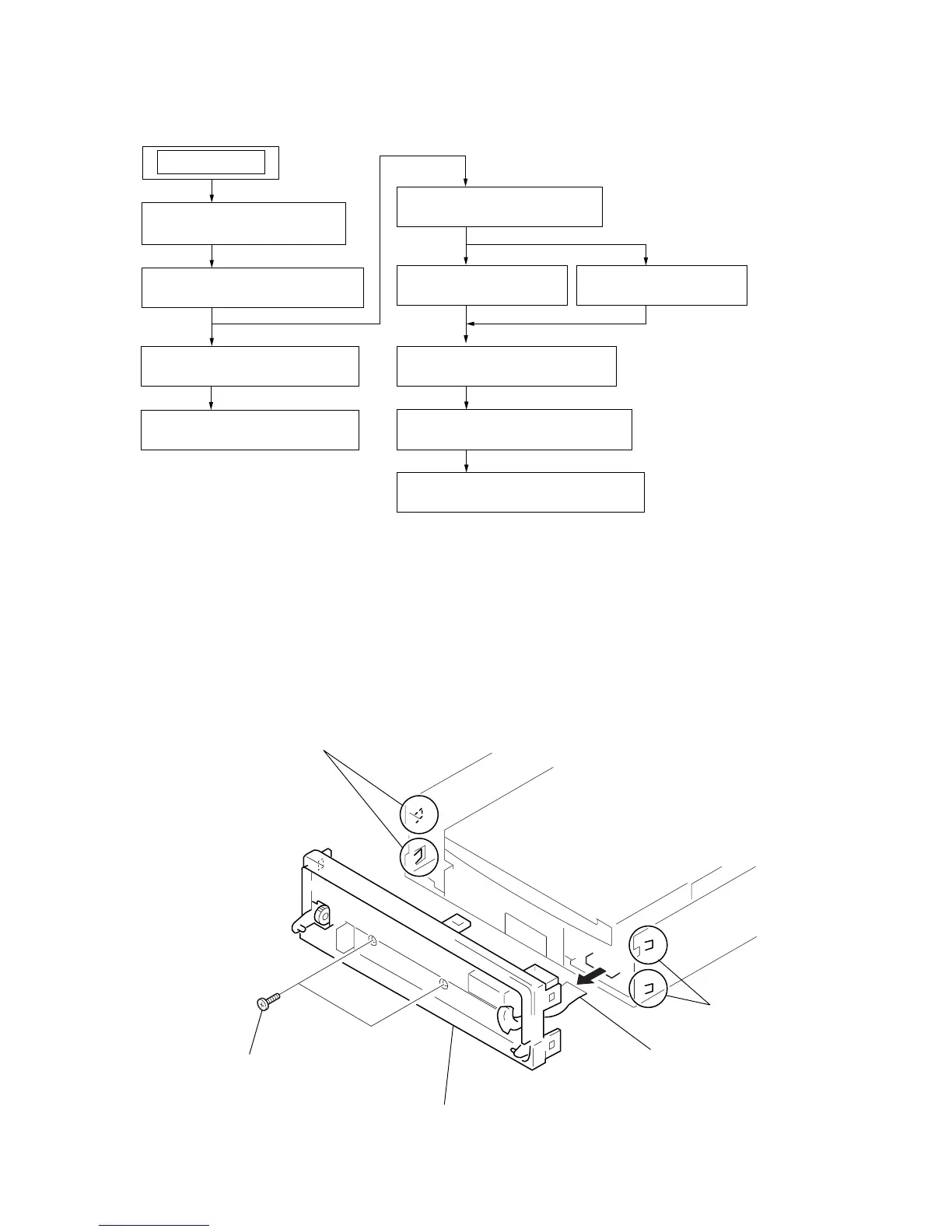

Note : This set can be disassemble according to the following sequence.
Note : Follow the disassembly procedure in the numerical order given.
2-1. SUB PANEL ASSY
2-1. SUB PANEL ASSY
(Page 7)
2-2. CD MECHANISM BLOCK
(Page 8)
2-5. CHASSIS (T.U) ASSY
(Page 9)
2-6. DISC IN BOARD
(Page 10)
2-8. SHAFT ROLLER ASSY
(Page 11)
2-9. FLOATING BLOCK ASSY
(Page 11)
2-10. OPTICAL PICK-UP BLOCK
(Page 12)
SET
2-7. SERVO BOARD
(Page 10)
2-3. MAIN BOARD
(Page 8)
2-4. HEAT SINK, MJ BOARD
(Page 9)
4 CN351
5 sub panel assy
3 claws
2 claws
1 PTT 2.6x6
