Sony CDX-CA710X - Exploded Views (Front Panel); Front Panel Section Exploded View

33
CDX-CA710X/CA790X

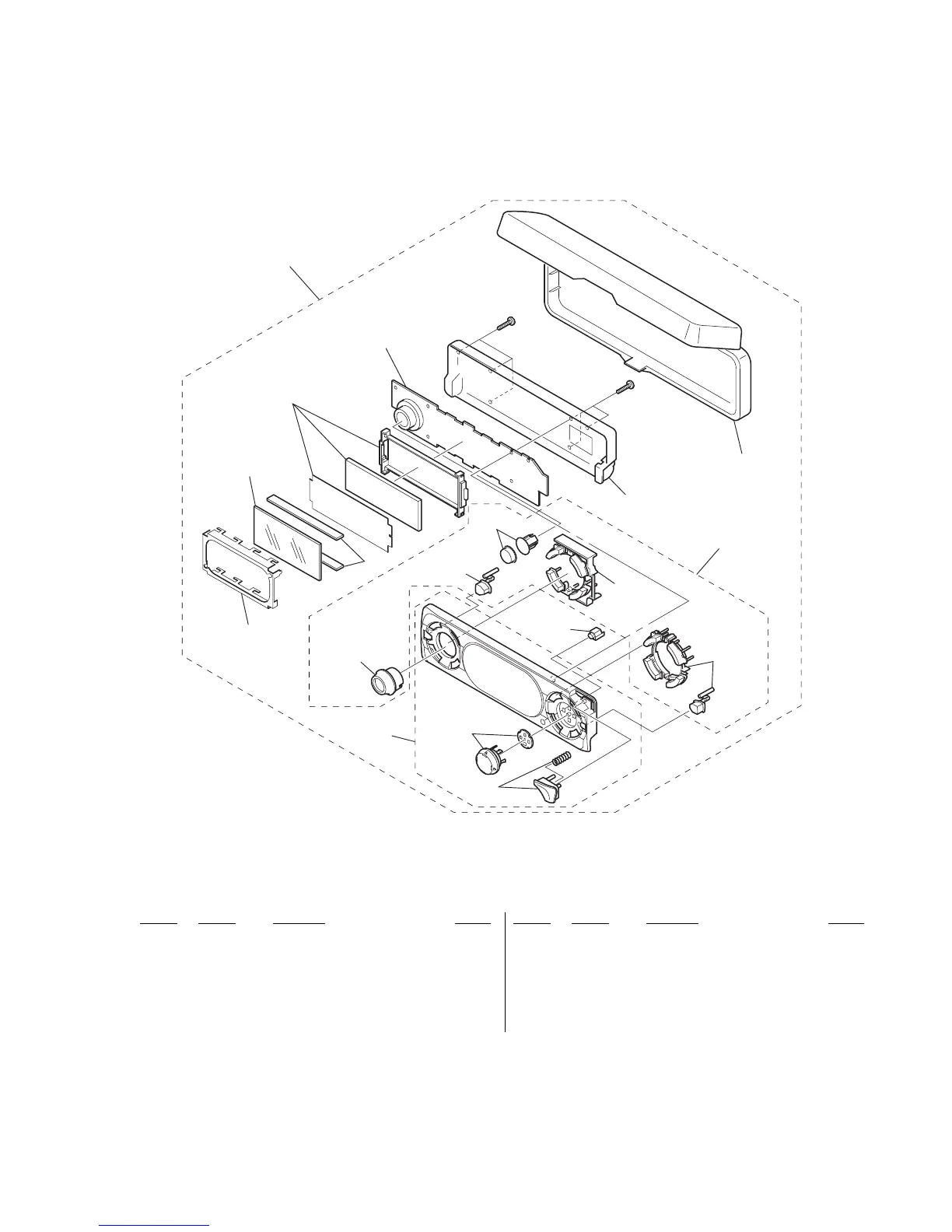

4-3. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101 X-3382-714-1 PANEL ASSY, FRONT (CA710X)
101 X-3382-715-1 PANEL ASSY, FRONT (CA790X)
102 3-248-779-01 WINDOW, RAY-CATCHER
103 X-3382-889-1 BUTTON KIT ASSY
104 1-694-882-11 CONDUCTIVE BOARD, CONNECTION
105 X-3382-887-1 PANEL ASSY, FRONT BACK
106 X-3378-490-2 CASE (PANEL) ASSY (for FRONT PANEL)
107 A-3315-872-A OVERALL ASSY (CA710X)
107 A-3315-874-A OVERALL ASSY (CA790X)
LCD901 1-804-619-12 DISPLAY PANEL, LIQUID CRYSTAL
#6 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
102
103
101
105
104
106
107
#6
#6
LCD901
not supplied
(KEY board)
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
