42
CDX-CA710X/CA790X
Ref. No. Part No. Description Remark
MISCELLANEOUS
***************
11 1-776-207-82 CORD (WITH CONNECTOR) (POWER)
251 X-3378-598-3 CHASSIS (OP) ASSY (including M901)
257 1-683-665-11 MOTOR FLEXIBLE BOARD
0 260 8-820-103-11 OPTICAL PICK-UP KSS-720A/K1NP
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
M902 A-3291-674-A MOTOR ASSY, SLED (SLED)
M903 A-3315-039-A MOTOR SUB ASSY, LD (LOADING)
*************************************************************
ACCESSORIES
************
1-477-110-22 REMOTE COMMANDER (RM-X118)
3-230-047-01 LID, BATTERY CASE (for RM-X118)
3-247-404-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
(CA710X)
3-247-404-21 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
(CA790X)
3-247-406-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH) (CA710X)
3-247-406-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH) (CA790X)
X-3378-490-2 CASE (PANEL) ASSY (for FRONT PANEL)
*************************************************************

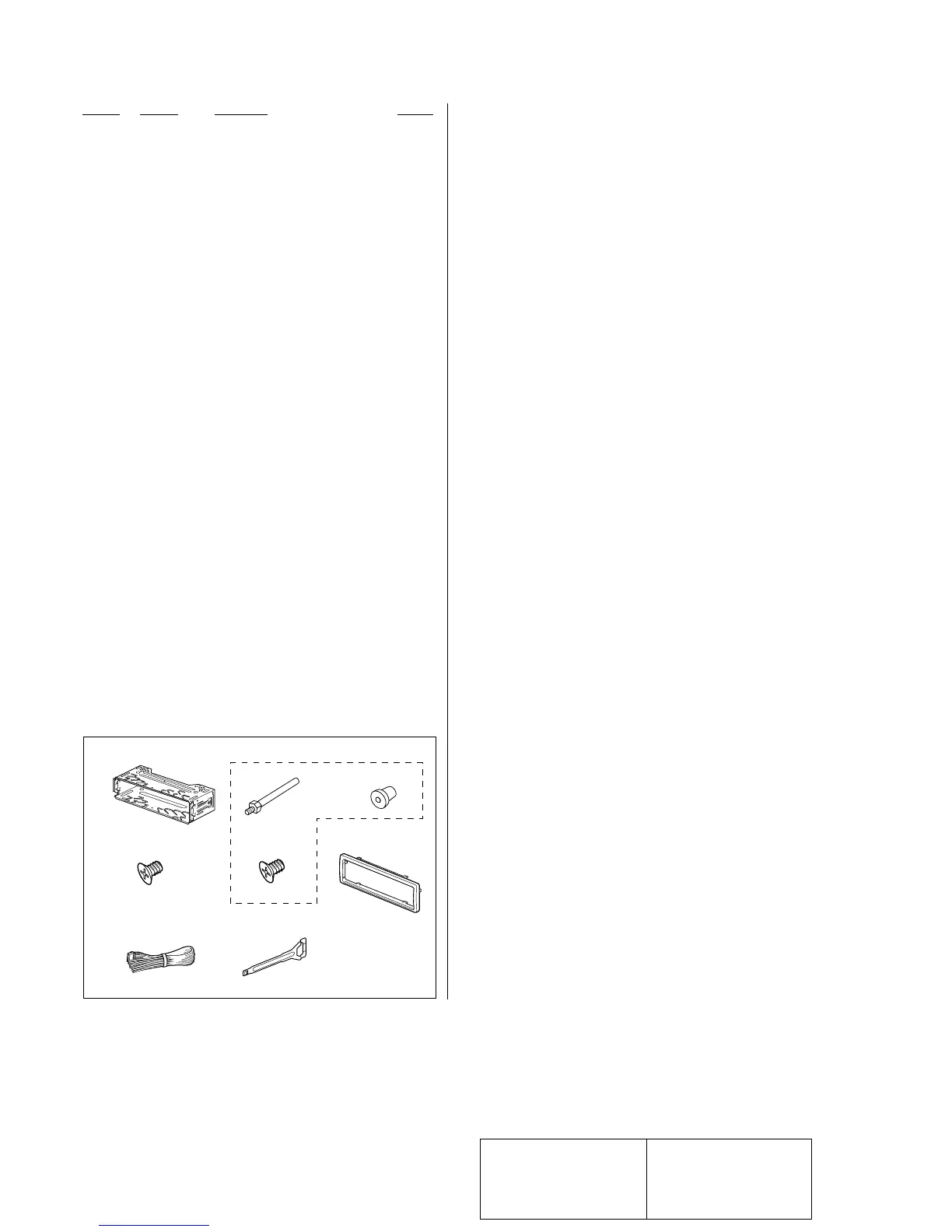

PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
301 X-3382-647-1 FRAME ASSY, FITTING
302 X-3381-154-1 SCREW ASSY (BS4), FITTING (CA790X)
303 3-349-410-11 BUSHING (CA790X)
304 3-934-325-01 SCREW, +K (5X8) TAPPING (CA710X)
305 3-247-022-01 COLLAR
306 1-776-207-82 CORD (WITH CONNECTOR) (POWER)
307 3-246-471-01 KEY (FRAME)
301
304
306 307
305
303
302
× 4
× 2
× 4
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
